Banner Q4XTKLAF600-Q8

Banner Q4XTKLAF600-Q8

Overview

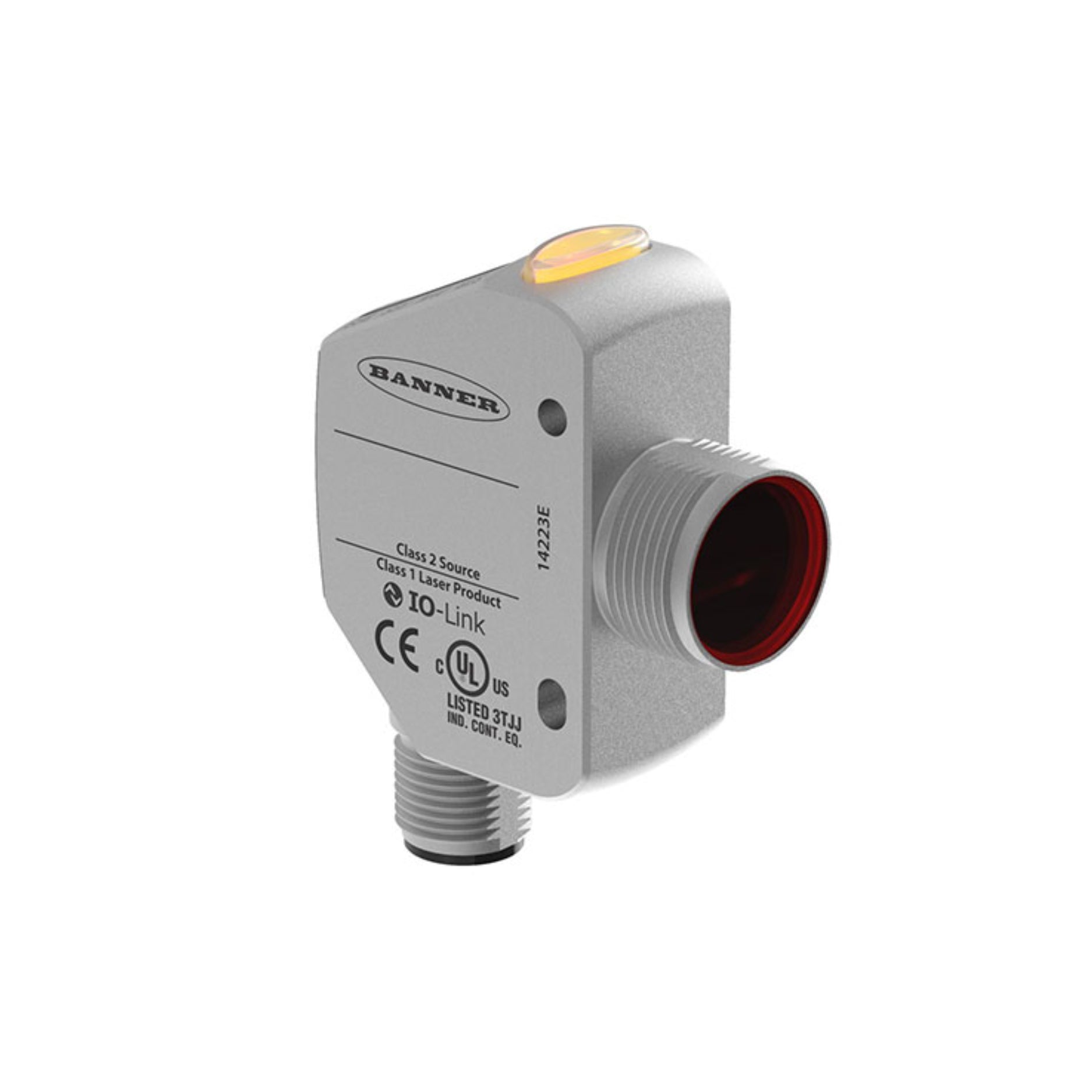

The Banner Q4XTKLAF600-Q8 is a high-performance adjustable-field laser photoelectric sensor designed for reliable detection of challenging targets such as dark materials, reflective surfaces, transparent objects, and multi-color packaging. With a sensing range up to 600 mm and broad application flexibility, it excels in environments where traditional optical sensors struggle. Its stainless-steel housing ensures durability in wash-down and harsh industrial conditions.

Key Features

• Visible red Class 1 laser for precise detection

• Adjustable-field sensing up to 600 mm

• IO-Link communication for advanced monitoring and setup

• Dual outputs for flexible machine control

• Rugged stainless-steel 316L housing

• IP67/IP68/IP69K environmental protection

• Highly stable detection regardless of material color or finish

• Built-in TEACH buttons and display for easy configuration

Technical Specifications

• Model: Q4XTKLAF600-Q8

• Series: Q4X

• Sensing Mode: Adjustable-field laser distance detection

• Light Source: Red laser, Class 1

• Sensing Range: 25 mm to 600 mm

• Outputs: 1 Push-Pull (NPN/PNP) with IO-Link + 1 PNP output

• Operating Voltage: 10–30 V DC

• Housing: Stainless-steel 316L

• Connection: M12 4-pin quick-disconnect (QD)

• Protection Rating: IP67, IP68, IP69K

• Operating Temperature: –10 °C to +50 °C

• Display: Numeric teaching and status indication

Applications

• Conveyor systems and automated production lines

• Checking presence/absence of difficult targets

• Detection on shiny, dark or transparent materials

• Packaging inspection and position feedback

• Food, beverage and wash-down environments

• Smart manufacturing using IO-Link data

Why Choose Banner Q4XTKLAF600-Q8?

• Handles virtually any material or surface reliably

• Excellent long-range performance in compact size

• Suitable for sanitary, high-pressure wash-down conditions

• IO-Link enables predictive maintenance and reduced downtime

• Trusted industrial durability with stainless-steel construction

Order Now

Upgrade complex detection tasks with the Banner Q4XTKLAF600-Q8 — the rugged, versatile and precision-engineered laser sensor built for modern automation challenges.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
