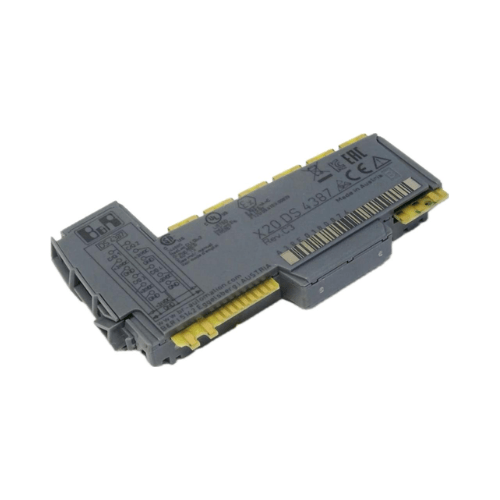

B&R X20DS4387 | 4-Channel Digital Stepper Output Module

B&R X20DS4387 | 4-Channel Digital Stepper Output Module

Overview:

The B&R X20DS4387 is a 4-channel digital stepper output module designed for precise and high-speed motion control in industrial automation systems. It enables accurate stepper motor positioning and velocity control, making it ideal for applications requiring precise movement in machine automation, robotics, and CNC systems.

Key Features:

• 4 Stepper Motor Control Outputs – Enables multi-axis motion control.
• High-Speed Pulse Output – Supports precise positioning and smooth operation.
• Configurable Pulse Frequencies – Optimized for accurate speed control.
• Seamless Integration – Fully compatible with B&R X20 automation systems.
• Compact & Modular Design – Saves space in control panels.
• Reliable Performance – Ensures stable and precise stepper motor control.

Technical Specifications:

• Model: X20DS4387
• Number of Outputs: 4
• Output Type: Pulse Train for Stepper Motor Control
• Max Pulse Frequency: Configurable for high-precision motion
• Power Supply: Provided via X20 backplane
• Mounting Type: DIN rail (X20 system rack)

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -25 to 70°C
• Humidity: 10% to 95% (non-condensing)
• Vibration Resistance: 5-9 Hz, 3.5 mm amplitude

Applications:

• Industrial Automation – Provides precise stepper motor control.
• Robotics & CNC Systems – Supports high-speed, multi-axis motion.
• Material Handling Systems – Ensures smooth movement and positioning.
• Packaging & Assembly Lines – Optimized for automated positioning applications.

Why Choose the B&R X20DS4387?

The B&R X20DS4387 is a high-performance stepper output module, designed for motion automation applications requiring precision and speed. With seamless X20 system integration, accurate pulse control, and modular flexibility, it delivers efficient and reliable motion performance in demanding industrial environments.

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
