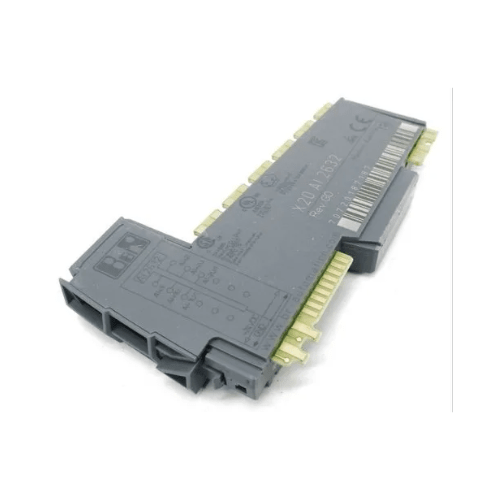

B&R X20AI2632 | 2-Channel Analog Input Module (±10V, 0-20mA)

B&R X20AI2632 | 2-Channel Analog Input Module

Overview:

The B&R X20AI2632 is a high-performance 2-channel analog input module for the B&R X20 series, offering accurate and stable signal processing. It supports both voltage (±10V) and current (0-20mA) inputs, making it ideal for industrial automation, process monitoring, and sensor integration applications.

Key Features:

• 2 Analog Input Channels – Allows simultaneous acquisition of two signals.
• Multiple Input Ranges:
  • Voltage: 0-10V, ±10V
  • Current: 0-20mA, 4-20mA
• High-Resolution Measurement – Ensures precise signal conversion.
• Fast Sampling Rate – Optimized for real-time industrial applications.
• Seamless Integration – Compatible with B&R X20 automation systems.
• Compact & Modular Design – Space-saving and ideal for control panels.
• Reliable & Industrial-Grade – Designed for continuous operation in harsh environments.

Technical Specifications:

• Model: X20AI2632
• Number of Channels: 2
• Input Signal Types:
  • Voltage: 0-10V, ±10V
  • Current: 0-20mA, 4-20mA
• Resolution: 16-bit
• Conversion Time: Fast response for real-time control
• Accuracy: ±0.1% full scale
• Power Supply: Provided via B&R X20 system backplane
• Mounting Type: DIN rail (X20 system rack)

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -25 to 70°C
• Humidity: 10% to 95% (non-condensing)
• Vibration Resistance: 5-9 Hz, 3.5 mm amplitude

Applications:

• Process Automation & Control – Ensures precise monitoring of industrial processes.
• Sensor Integration – Supports temperature, pressure, and flow sensors.
• SCADA & IoT Systems – Enables accurate data acquisition for remote monitoring.
• Industrial Machine Monitoring – Provides real-time feedback for automation systems.

Why Choose the B&R X20AI2632?

The B&R X20AI2632 is a high-precision analog input module, offering multi-range signal support, seamless X20 system integration, and industrial-grade reliability. Its compact design, high accuracy, and fast response make it an ideal choice for real-time process automation and monitoring.

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
