B&R 7DM465.7 | Digital Mixed Module

B&R 7DM465.7 | 16-Input, 16-Output Digital Mixed Module – 24V DC

Overview

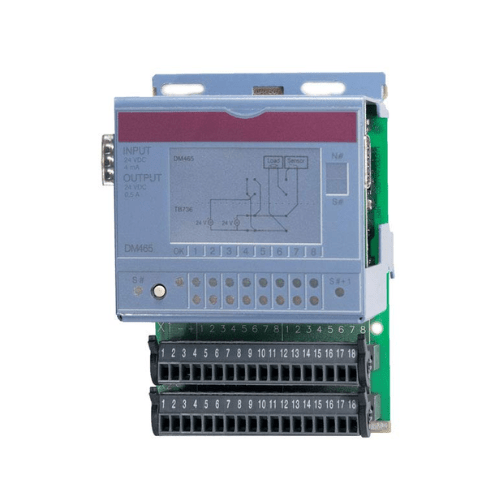

The B&R 7DM465.7 is a digital mixed module designed for B&R 2003 I/O systems, offering 16 digital inputs and 16 transistor outputs operating at 24V DC. This module provides efficient signal processing and control capabilities, making it suitable for various industrial automation applications.

Key Features

• Digital Inputs: 16 channels, sink connection

• Input Voltage: 24V DC (18–30V DC range)

• Input Delay: Maximum 1 ms

• Digital Outputs: 16 transistor outputs

• Output Voltage: 24V DC (18–30V DC range)

• Output Current: Up to 0.5 A per channel; total module current up to 8 A

• Overload Protection: Yes, with automatic recovery

• Diagnostics: LED indicators for input/output status and module health

• Mounting: Compatible with B&R 2003 system racks

Technical Specifications

• Model Number: 7DM465.7

• Series: B&R 2003 I/O

• Input Type: Sink

• Input Current: Approximately 4 mA per channel at 24V DC

• Switching Thresholds:

  • Low: <5 VDC

  • High: >15 VDC

• Output Type: High-side driver (transistor)

• Leakage Current (Off-State): 12 µA

• Switching Delay:

  • On to Off: Max. 450 µs

  • Off to On: Max. 450 µs

• Isolation Voltage: 500 Veff between input/output and PLC

• Power Consumption: Max. 1.1 W

• Operating Temperature: -25°C to +60°C

• Certifications: CE, UKCA, cULus HazLoc (Class I, Division 2, Groups A, B, C, D)

Applications

• Industrial Automation: Efficient signal processing for control systems

• Machine Control: Interface for sensors and actuators in machinery

• Process Monitoring: Reliable input/output operations in process industries

• Building Automation: Integration of various digital signals in building management systems

Why Choose B&R 7DM465.7?

• Integrated Design: Combines inputs and outputs in a single module for space efficiency

• Reliable Performance: Fast response times with robust protection mechanisms

• Comprehensive Diagnostics: LED indicators facilitate quick troubleshooting

• Versatile Compatibility: Seamlessly integrates with B&R 2003 I/O systems

Order Now

Available for immediate worldwide shipping. Contact us for compatible terminal blocks, system racks, and technical support to ensure seamless integration into your automation systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
