Autonics PRL18-8DN

Autonics PRL18-8DN

Overview

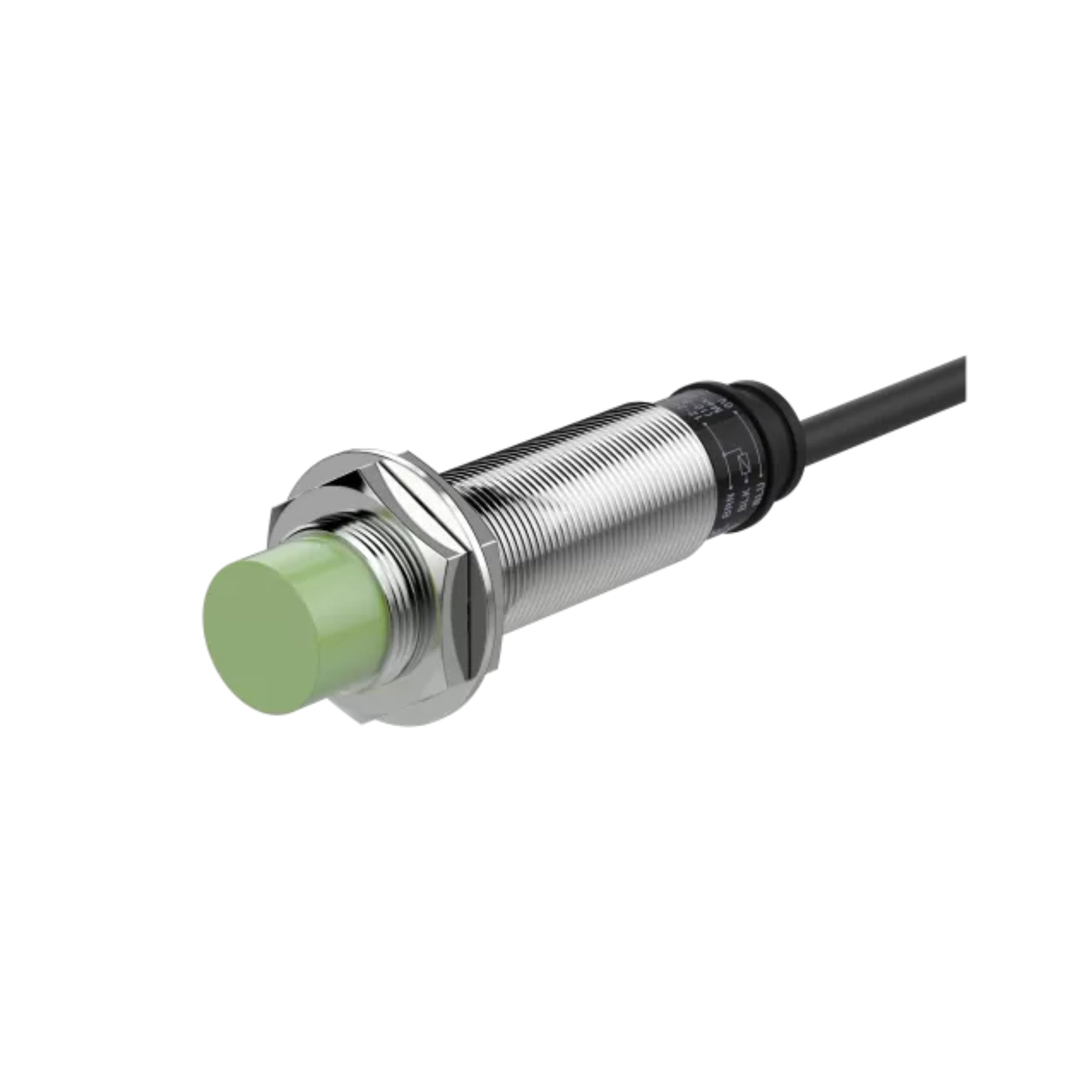

The Autonics PRL18-8DN is a high-performance inductive proximity sensor engineered for accurate metal detection in industrial automation environments. With an 8 mm sensing distance and a robust M18 nickel-plated brass housing, this sensor ensures stable, non-contact detection with excellent resistance to noise and vibration. Ideal for machine automation, robotics, and assembly systems, it provides reliable operation even in harsh industrial conditions.

Key Features

• 8 mm sensing distance for precise metal detection

• M18 threaded cylindrical housing for easy installation

• Flush mounting design for compact spaces

• NPN open collector output (3-wire DC)

• Wide operating voltage range: 12–24 V DC

• Built-in LED indicator for operation status

• High switching frequency for fast response times

• IP67 protection for dust and water resistance

• Rugged nickel-plated brass construction for long life

Technical Specifications

• Manufacturer: Autonics

• Model: PRL18-8DN

• Type: Inductive Proximity Sensor

• Sensing Distance: 8 mm

• Mounting Type: Flush

• Output Type: NPN, Normally Open (3-wire DC)

• Operating Voltage: 12–24 V DC

• Current Consumption: ≤10 mA

• Leakage Current: ≤0.8 mA

• Response Frequency: 500 Hz

• Protection Circuit: Surge, reverse polarity, and overload protection

• Indicator: Red LED for operation status

• Housing Material: Nickel-plated Brass

• Sensing Surface Material: PBT plastic

• Protection Rating: IP67

• Operating Temperature: –25 °C to +70 °C

• Connection Type: Cable type (2 m standard)

• Certifications: CE, RoHS compliant

Applications

• Automated machinery and production lines

• Conveyor belt systems and packaging machines

• Robotics and material handling systems

• Position and limit sensing in industrial processes

• Metal detection in factory automation setups

Why Choose Autonics PRL18-8DN?

• High reliability and precise detection in demanding conditions

• Compact, easy-to-install design with flush mounting

• Long service life and low maintenance requirements

• Wide electrical compatibility and stable output performance

• Backed by Autonics’ proven sensor engineering

Order Now

Upgrade your automation systems with the Autonics PRL18-8DN, offering precise, non-contact metal detection with durability and reliability for all industrial environments.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
