Autonics PR08-2DN2

Autonics PR08-2DN2

Overview

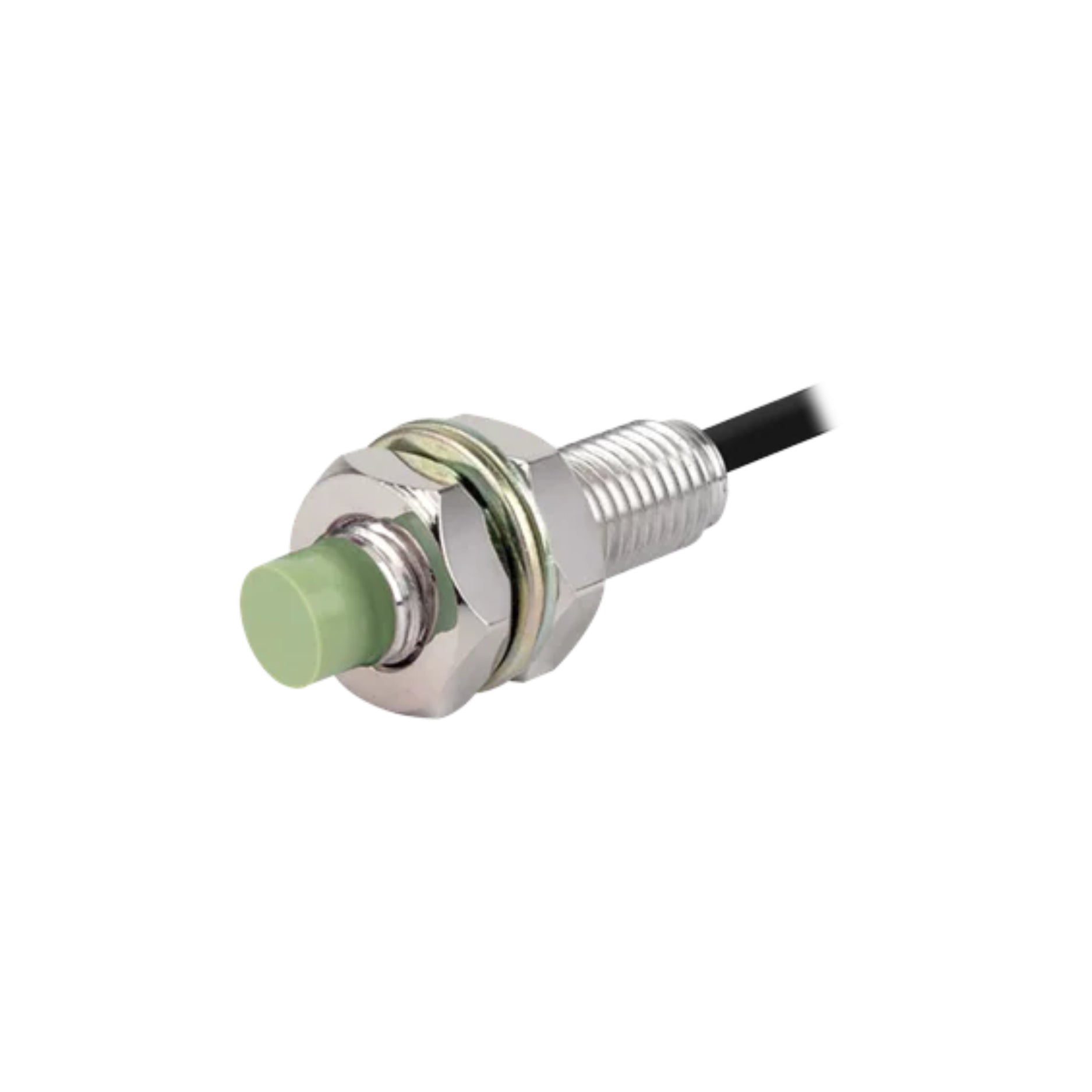

The Autonics PR08-2DN2 is a compact inductive proximity sensor designed for high-precision metal detection in limited-space installations. Featuring an M8 cylindrical design and a 2 mm sensing distance, this sensor ensures reliable, non-contact detection with excellent repeatability. Its rugged nickel-plated brass housing and IP67 protection make it ideal for a wide range of industrial automation applications.

Key Features

• 2 mm sensing distance for precise detection

• Slim M8 threaded housing for compact spaces

• Flush mounting design for easy installation

• NPN Normally Open (NO) output configuration

• Wide operating voltage range: 12–24 V DC

• Built-in LED operation indicator

• IP67-rated for resistance to dust and moisture

• High switching frequency for fast detection

Technical Specifications

• Manufacturer: Autonics

• Model: PR08-2DN2

• Type: Inductive Proximity Sensor

• Sensing Distance: 2 mm

• Mounting Type: Flush

• Output Type: NPN, Normally Open (3-wire DC)

• Operating Voltage: 12–24 V DC

• Current Consumption: ≤10 mA

• Response Frequency: 1 kHz

• Housing Material: Nickel-plated Brass

• Protection Rating: IP67

• Operating Temperature: –25 °C to +70 °C

• Connection Type: Cable Type (2 m length)

• Standards & Certifications: CE, RoHS compliant

Applications

• Compact machinery and robotics systems

• Metal part detection on assembly lines

• Conveyor and packaging automation

• Position and limit sensing in factory equipment

• Material handling and pick-and-place systems

Why Choose Autonics PR08-2DN2?

• Reliable and accurate performance in small installations

• Robust and long-lasting construction

• Easy wiring and integration with control systems

• Backed by Autonics’ trusted sensor technology

Order Now

Optimize your automation setup with the Autonics PR08-2DN2, delivering dependable 2 mm metal detection performance in compact industrial environments.
