Overview

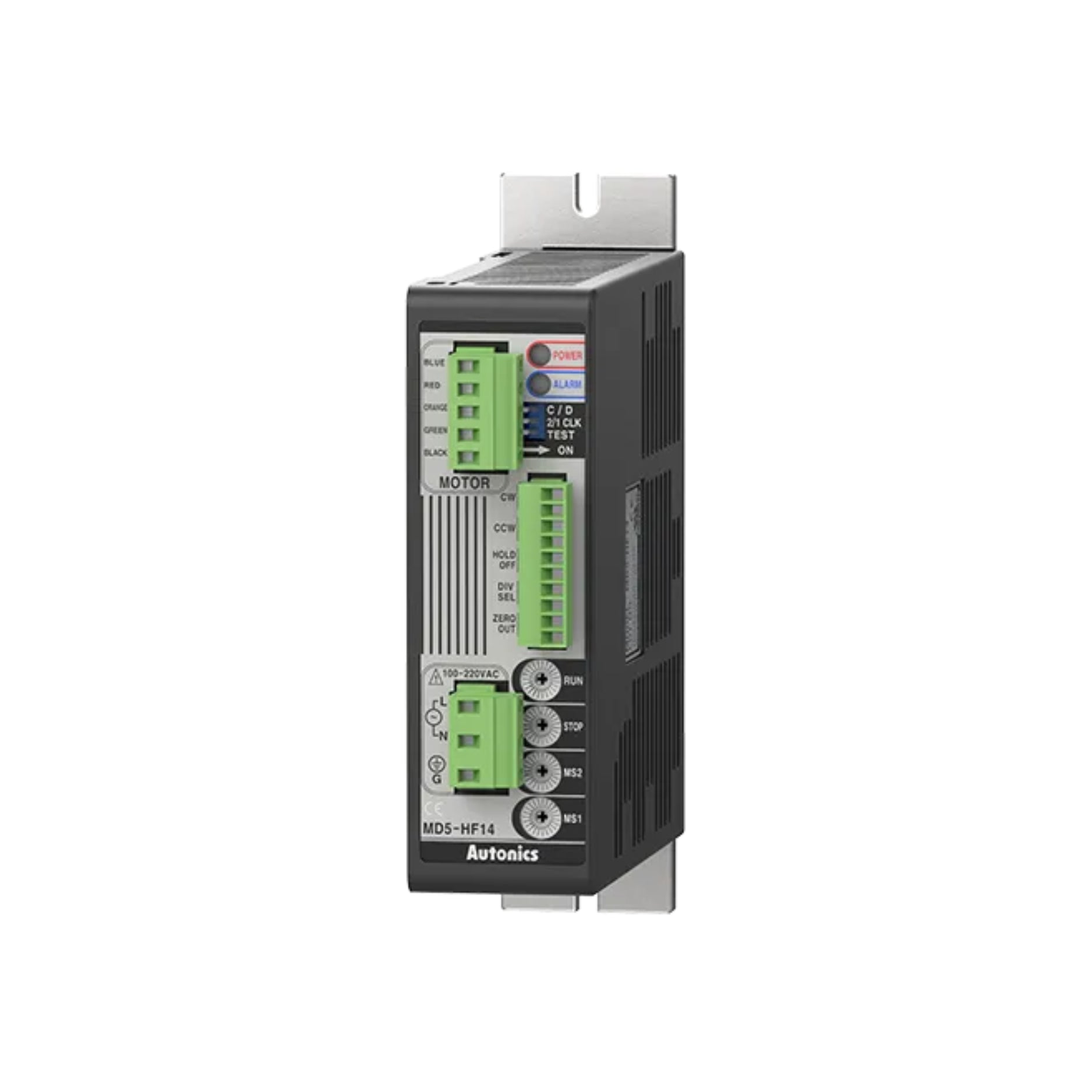

The Autonics MD5-HF14 is a high-performance 5-phase stepper motor driver built for precise motion control in industrial automation systems. It uses a bipolar constant current pentagon drive method to ensure smooth, accurate movement with reduced noise and vibration. Designed for AC power input (100–220 VAC), it delivers up to 3 A output per phase and supports multiple step resolutions, making it ideal for robotics, semiconductor equipment, and precision positioning systems.

Key Features

• Bipolar constant current pentagon drive method

• Microstepping support up to 250 divisions (from 0.72° to 0.00288° per step)

• Auto current down function minimizes motor heating when idle

• Self-diagnosis (TEST mode) for driver and motor health checks

• Photocoupler-insulated inputs for improved noise immunity

• Compatible with 100–220 VAC power supply

• Chassis-mount design for easy installation

• Optional alarm output version (MD5-HF14-AO)

Technical Specifications

• Manufacturer: Autonics

• Model / Variant: MD5-HF14 (and MD5-HF14-AO with alarm)

• Type: 5-Phase Stepper Motor Driver

• Drive Method: Bipolar constant current pentagon drive

• Supply Voltage: 100–220 VAC, 50/60 Hz

• Maximum Output Current: 3 A

• RUN Current Range: 0.4 to 1.4 A per phase

• Resolution / Step Divisions: Full step, half step, up to 250-division microsteps

• Input Pulse Width (Min): 1 µs

• Maximum Input Pulse Frequency: Up to 500 kHz

• Operating Temperature: 0 °C to +50 °C

• Mounting Type: Chassis mount

• Protection Functions: Auto current down, overheat protection, alarm (AO model)

• Housing Material: Industrial-grade metal

• Approx. Weight: 660 g

• Certifications: CE, RoHS compliant

Applications

• High-precision motion control systems

• Robotics and automation lines

• Semiconductor and pick-and-place machines

• Positioning and alignment systems

• Multi-axis control setups requiring smooth, low-vibration motion

Why Choose Autonics MD5-HF14?

• Exceptional precision with 5-phase microstepping control

• Stable torque and smooth motion across speed ranges

• Robust AC power compatibility (100–220 VAC)

• Built-in protection and diagnostic features

• Trusted Autonics quality for long-term industrial use

Order Now

Enhance your automation performance with the Autonics MD5-HF14 — a reliable, high-precision 5-phase stepper motor driver engineered for consistent and smooth motion control.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
