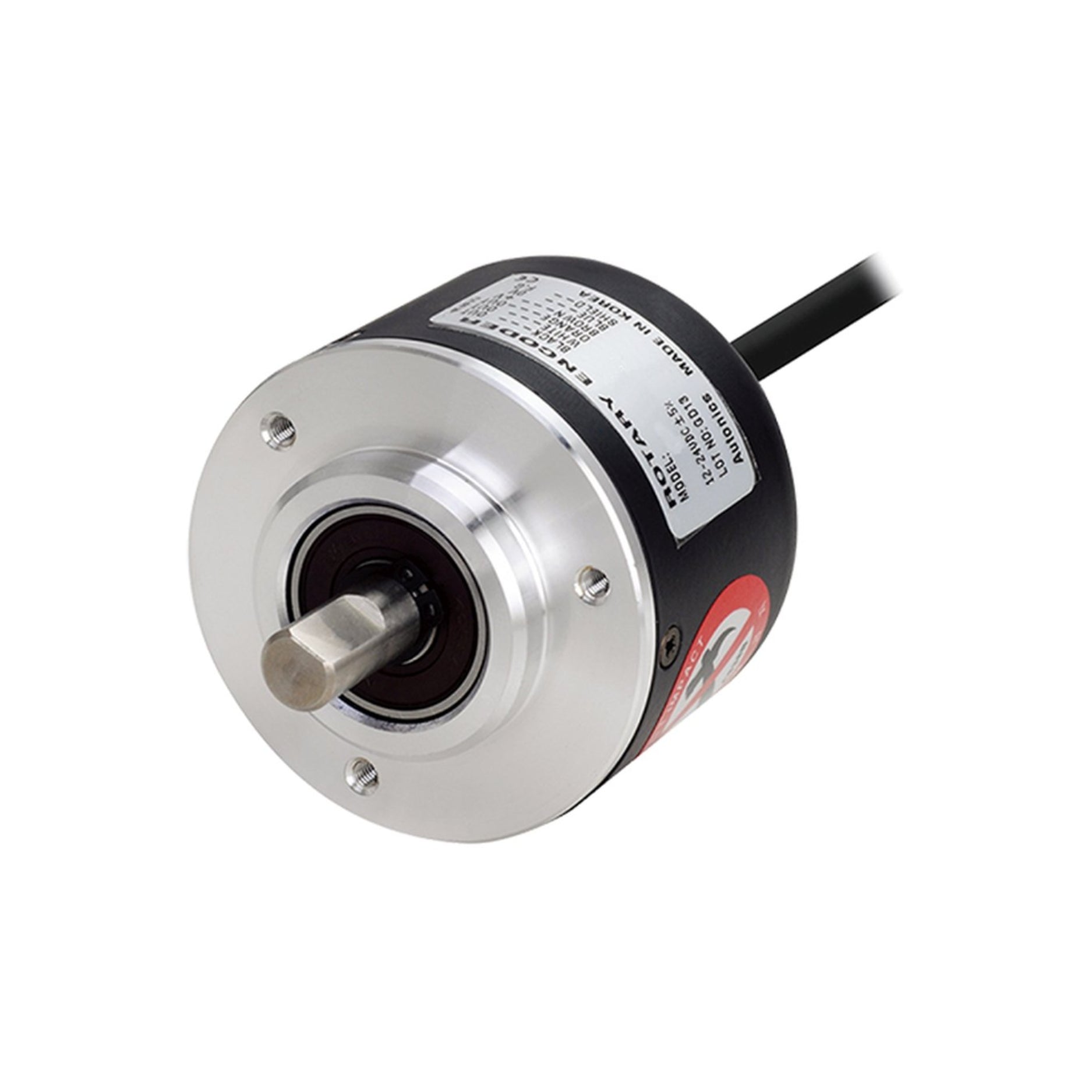

Autonics E50S8-600-3-T-24

Autonics E50S8-600-3-T-24

Overview

The Autonics E50S8-600-3-T-24 is a high-performance incremental rotary encoder designed for accurate position and speed feedback in automation systems. With a 600 pulses-per-revolution (PPR) resolution and a solid 8 mm shaft, this encoder ensures reliable motion control across a wide range of industrial applications. Its compact 50 mm housing, durable construction, and 12–24 VDC power compatibility make it an excellent choice for precision-driven systems.

Key Features

• 600 pulses per revolution (PPR) for accurate signal output

• 8 mm solid shaft with robust mechanical stability

• Line driver output (Totem Pole) for reliable signal transmission

• Wide operating voltage range: 12–24 VDC

• Compact Ø50 mm housing for versatile installation

• Built-in short-circuit and reverse polarity protection

• Rugged aluminum case for industrial durability

Technical Specifications

• Manufacturer: Autonics

• Model Code: E50S8-600-3-T-24

• Type: Incremental Rotary Encoder

• Resolution: 600 pulses per revolution (PPR)

• Output Type: Totem Pole (NPN Open Collector)

• Power Supply: 12–24 VDC ±5%

• Output Phase: A, B, Z (3-phase output)

• Shaft Type: Solid Shaft

• Shaft Diameter: 8 mm

• Housing Diameter: 50 mm

• Maximum Response Frequency: 300 kHz

• Maximum Rotation Speed: 5,000 rpm

• Protection Rating: IP50

• Housing Material: Aluminum

• Connection Type: Cable (2 m)

• Operating Temperature: –10 °C to +70 °C

• Certifications: CE, RoHS compliant

Applications

• Industrial automation and motion control systems

• Conveyor and packaging machinery

• CNC and robotic positioning systems

• Motor feedback and spindle speed control

• Elevator and printing machine systems

Why Choose Autonics E50S8-600-3-T-24?

• High-resolution and stable feedback signals

• Compact yet rugged design for industrial environments

• Easy installation and integration with PLCs and controllers

• Reliable Autonics performance and long service life

Order Now

Achieve precise position and speed control with the Autonics E50S8-600-3-T-24, a dependable incremental rotary encoder built for accuracy and reliability in demanding automation setups.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
