Autonics E50S8-1024-3-T-24

Autonics E50S8-1024-3-T-24

Overview

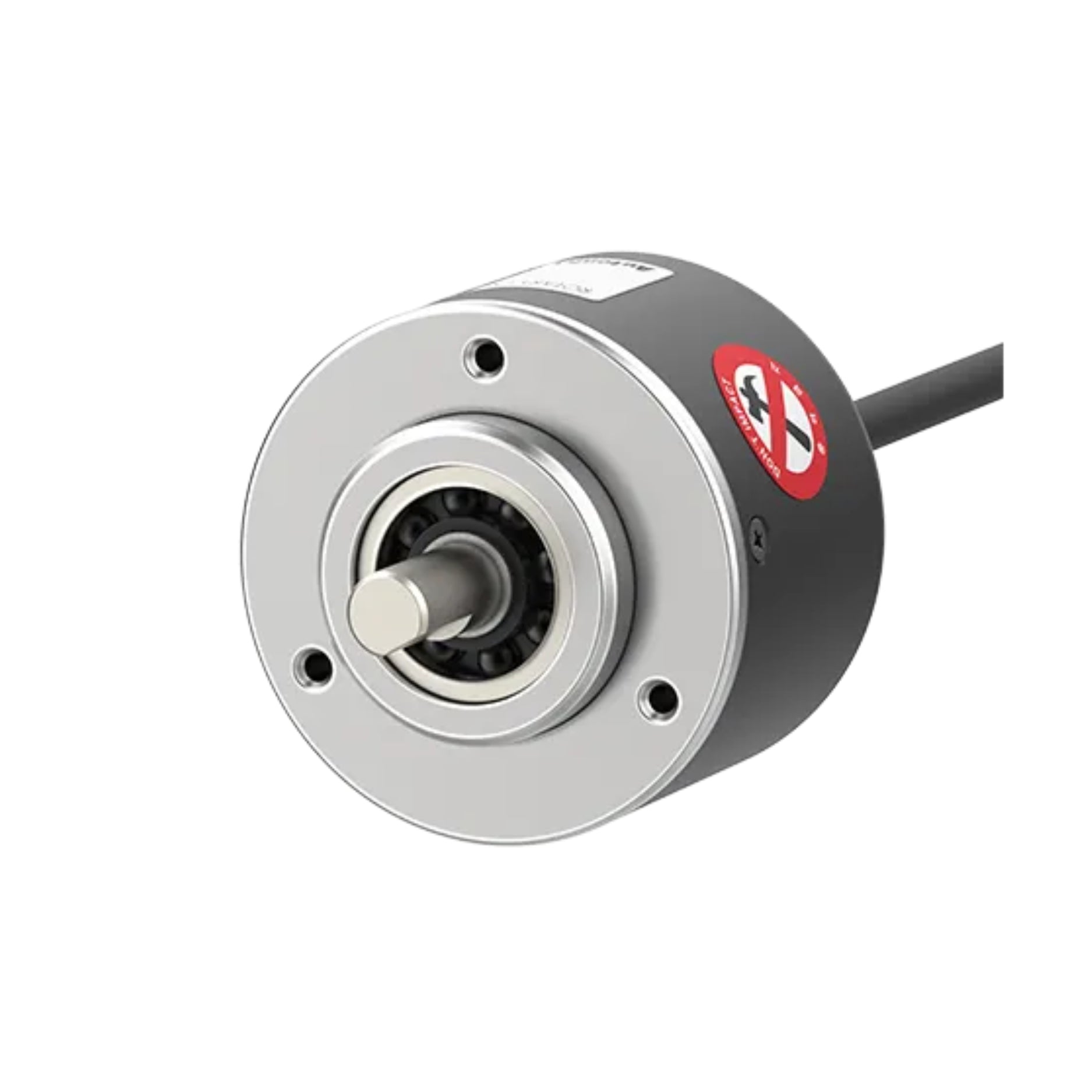

The Autonics E50S8-1024-3-T-24 is a high-performance incremental rotary encoder designed for precise position and speed detection in automation systems. Featuring 1024 pulses per revolution (PPR) and an 8 mm solid shaft, this encoder ensures reliable feedback for motor control, conveyors, and robotic applications. Built with robust aluminum housing and 24 VDC operation, it offers stable performance in industrial environments.

Key Features

• 1024 pulses per revolution (PPR) resolution

• Compact Ø50 mm housing with 8 mm solid shaft

• Line driver output (A, B, Z channels)

• Wide supply voltage: 5–24 VDC

• High response frequency up to 300 kHz

• Rugged aluminum case for industrial durability

• Easy installation with clamping coupling design

• LED indicator for power status

Technical Specifications

• Manufacturer: Autonics

• Model: E50S8-1024-3-T-24

• Type: Incremental Rotary Encoder

• Resolution: 1024 PPR

• Output Type: Line Driver (A, B, Z)

• Power Supply: 5–24 VDC

• Shaft Diameter: 8 mm (Solid)

• Output Phase: A, B, Z

• Max Response Frequency: 300 kHz

• Allowable Speed: 5000 rpm

• Cable Type: Radial cable (2 m length)

• Housing Material: Aluminum

• Protection Rating: IP50

• Operating Temperature: –10 °C to +70 °C

• Weight: Approx. 200 g

• Certifications: CE, RoHS compliant

Applications

• Position and speed detection in automation systems

• Motor control feedback for CNC and servo drives

• Conveyor and packaging machinery

• Robotics and material handling equipment

• Elevator and printing system positioning

Why Choose Autonics E50S8-1024-3-T-24?

• High-resolution feedback for precision control

• Reliable, long-life performance in industrial use

• Easy integration with PLCs and motion controllers

• Backed by Autonics’ global reputation for sensor and encoder quality

Order Now

Upgrade your automation accuracy with the Autonics E50S8-1024-3-T-24, offering dependable position and speed sensing for advanced motion control applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
