Autonics E40S6-600-3-T-24

Autonics E40S6-600-3-T-24

Overview

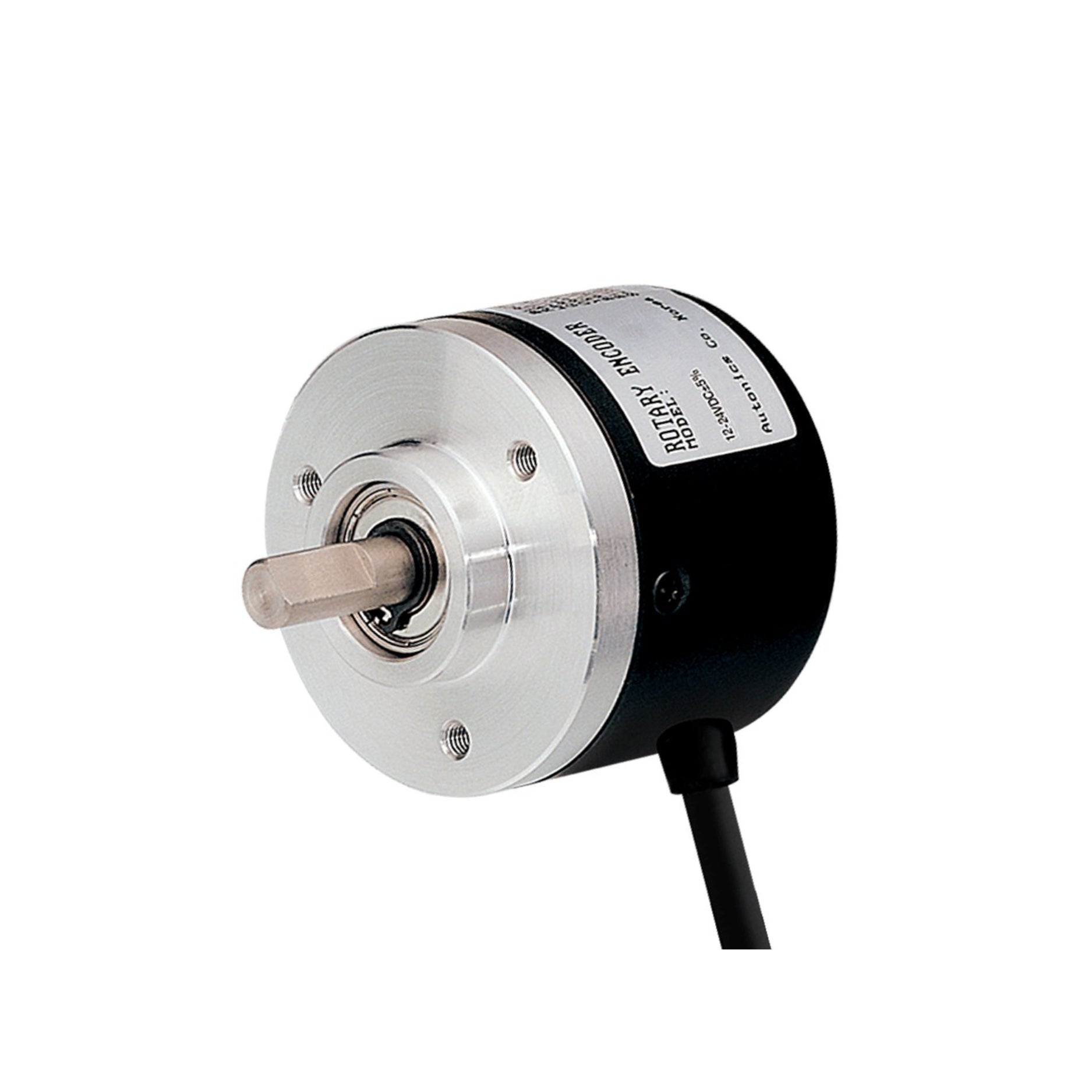

The Autonics E40S6-600-3-T-24 is a compact incremental rotary encoder designed to provide precise position and speed feedback in motion control systems. With a 40 mm diameter shaft type body and 600 pulses per revolution (PPR), this encoder ensures stable signal output and reliable performance in industrial automation applications. Engineered for durability and precision, it’s ideal for monitoring, motor control, and machine feedback systems.

Key Features

• 600 pulses per revolution (PPR) for accurate feedback

• Ø40 mm compact shaft type design

• Line driver output (A, B, Z phase) for noise resistance

• Robust metal housing for industrial durability

• Wide supply voltage range (5 VDC to 24 VDC)

• Excellent resistance to vibration and electrical noise

• Easy installation with standard 6 mm shaft and clamping coupling

Technical Specifications

• Manufacturer: Autonics

• Model: E40S6-600-3-T-24

• Series: E40S

• Type: Incremental Rotary Encoder

• Resolution: 600 pulses per revolution (PPR)

• Output Type: Line Driver (A, B, Z Phase)

• Power Supply: 5–24 VDC

• Shaft Diameter: 6 mm

• Body Diameter: 40 mm

• Output Phase: 3-channel (A, B, Z)

• Max Response Frequency: 300 kHz

• Allowable Shaft Load: 3 N (radial), 2 N (axial)

• Protection Rating: IP50

• Housing Material: Aluminum Alloy

• Operating Temperature: –10 °C to +70 °C

• Connection Type: Cable Type (2 m standard)

• Certifications: CE, RoHS compliant

Applications

• Industrial motor control systems

• CNC machines and milling equipment

• Conveyor and packaging automation

• Robotics and servo drive systems

• Position and speed monitoring

Why Choose Autonics E40S6-600-3-T-24?

• Precise, reliable, and cost-effective encoder solution

• Compact design ideal for tight installation spaces

• High signal stability with line driver output

• Backed by Autonics’ trusted motion control technology

Order Now

Enhance your motion control precision with the Autonics E40S6-600-3-T-24, delivering high-resolution feedback and dependable performance for automation systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
