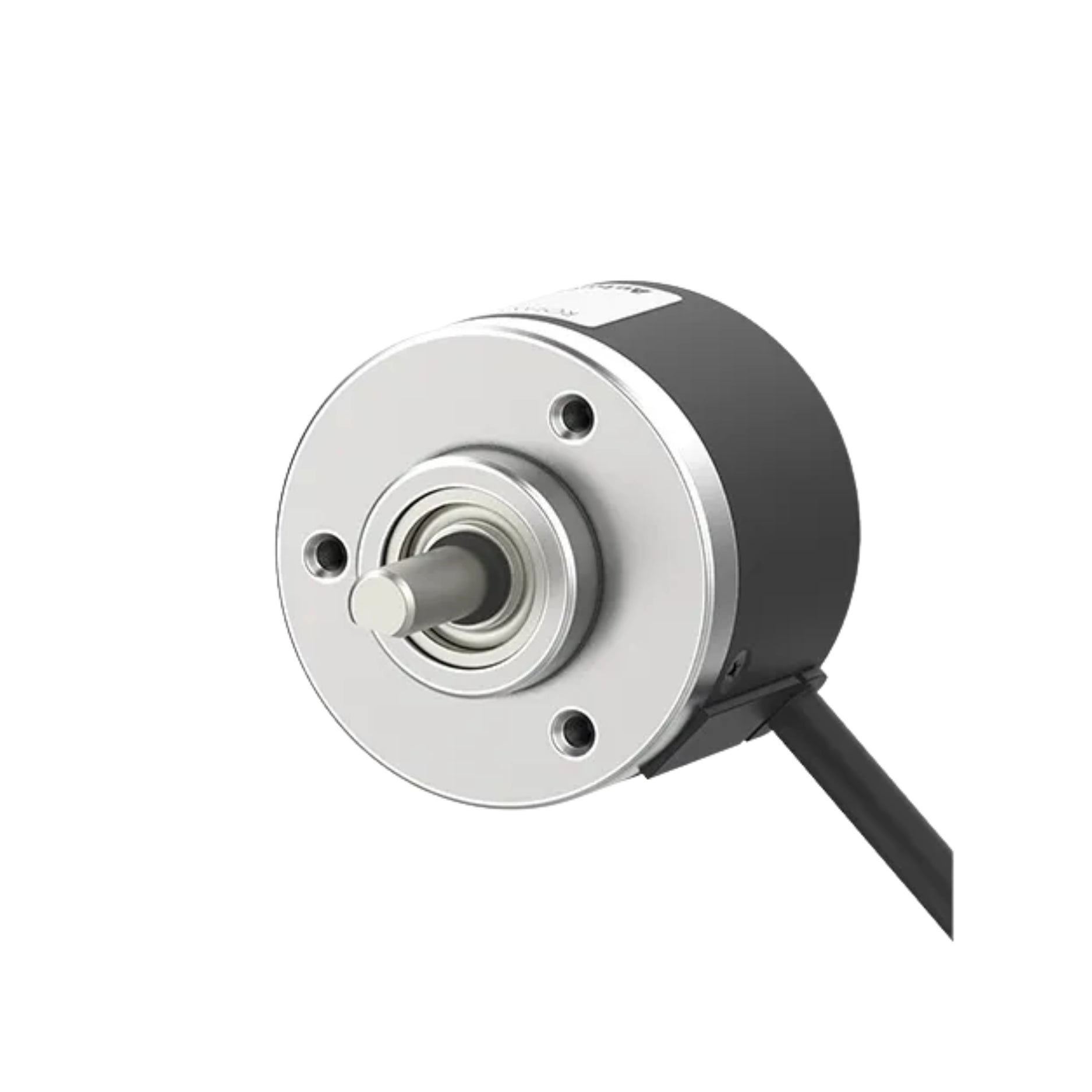

Autonics E40S6-500-3-T-24

Autonics E40S6-500-3-T-24

Overview

The Autonics E40S6-500-3-T-24 is a compact incremental rotary encoder from the E40 series, designed for accurate position and speed detection in automation and motion control systems. With 500 pulses per revolution (PPR) and 3-phase NPN open collector output, it ensures stable signal transmission and precise feedback for various industrial applications. Its solid shaft and durable aluminum housing provide excellent reliability and long service life even in demanding environments.

Key Features

• 500 pulses per revolution (PPR) resolution

• 3-phase output (A, B, Z) for accurate positioning

• NPN open collector output type

• 24 VDC power supply for stable operation

• Compact 40 mm diameter design

• Durable aluminum housing with high mechanical strength

• Easy installation with solid shaft and rear cable outlet

• Wide operating temperature range

Technical Specifications

• Manufacturer: Autonics

• Model: E40S6-500-3-T-24

• Series: E40

• Type: Incremental Rotary Encoder

• Resolution: 500 pulses per revolution (PPR)

• Output Phase: 3-phase (A, B, Z)

• Output Type: NPN Open Collector

• Power Supply: 5–24 V DC ±5%

• Shaft Type: Solid shaft (ø6 mm)

• Cable Type: 2 m axial cable (T type)

• Housing Material: Aluminum

• Protection Rating: IP50

• Maximum Response Frequency: 300 kHz

• Maximum Rotational Speed: 5,000 rpm

• Operating Temperature: –10 °C to +70 °C

• Connection: Cable Type (Radial)

• Certifications: CE, RoHS compliant

Applications

• CNC machines and robotics

• Industrial automation and process control

• Conveyor and packaging systems

• Motor feedback and speed control

• Positioning systems and servo drives

Why Choose Autonics E40S6-500-3-T-24?

• Precise and stable pulse output for motion control

• Compact, rugged, and reliable encoder design

• Easy integration with PLCs and controllers

• Proven Autonics quality for industrial environments

Order Now

Upgrade your motion control system with the Autonics E40S6-500-3-T-24, delivering accurate, reliable, and efficient rotational feedback for industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
