Autonics E40S6-2000-3-T-24

Autonics E40S6-2000-3-T-24

Overview

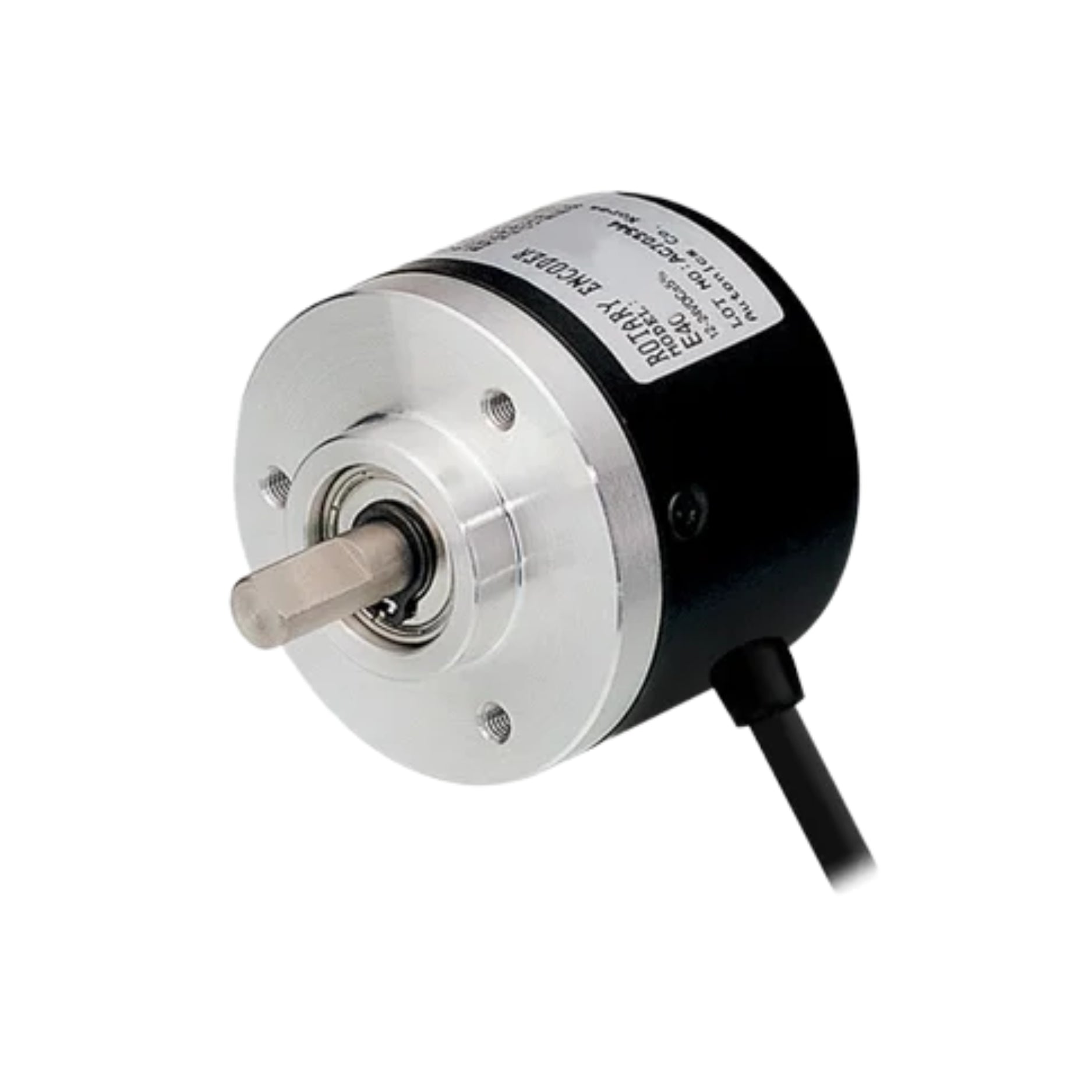

The Autonics E40S6-2000-3-T-24 is a compact incremental rotary encoder designed for precise rotation measurement and position feedback in motion control systems. Featuring a 40 mm diameter housing, a 6 mm solid shaft, and 2000 pulses per revolution (PPR), this encoder offers accurate, high-resolution performance ideal for automation and robotics applications. Its durable metal construction ensures long-term reliability in industrial environments.

Key Features

• 2000 pulses per revolution (PPR) resolution

• 6 mm solid shaft with 40 mm compact housing

• NPN open collector output (3-channel: A, B, Z)

• Wide power supply range: 12–24 VDC

• High response speed up to 300 kHz

• Durable metal housing and long mechanical life

• Easy installation with radial cable outlet

Technical Specifications

• Manufacturer: Autonics

• Model: E40S6-2000-3-T-24

• Type: Incremental Rotary Encoder

• Resolution: 2000 PPR

• Output Type: NPN Open Collector (A, B, Z Channels)

• Power Supply: 12–24 VDC ±5%

• Output Phase Difference: 90° ±45° (between A and B)

• Maximum Response Frequency: 300 kHz

• Shaft Diameter: 6 mm (Solid Shaft)

• Housing Diameter: 40 mm

• Cable Type: Radial Cable, 2 m

• Operating Temperature: –10 °C to +70 °C

• Protection Rating: IP50

• Housing Material: Aluminum (Body), Stainless Steel (Shaft)

• Weight: Approx. 150 g

• Certifications: CE, RoHS compliant

Applications

• Position and speed feedback in automation systems

• Servo and stepper motor control

• Conveyor and packaging machinery

• CNC machines and robotics

• Printing and textile equipment

Why Choose Autonics E40S6-2000-3-T-24?

• High-resolution 2000 PPR signal for precise control

• Reliable performance in industrial conditions

• Compact 40 mm body ideal for limited spaces

• Proven Autonics quality and global support

Order Now

Upgrade your motion control system with the Autonics E40S6-2000-3-T-24, delivering accurate rotational feedback, high durability, and stable output for precision automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
