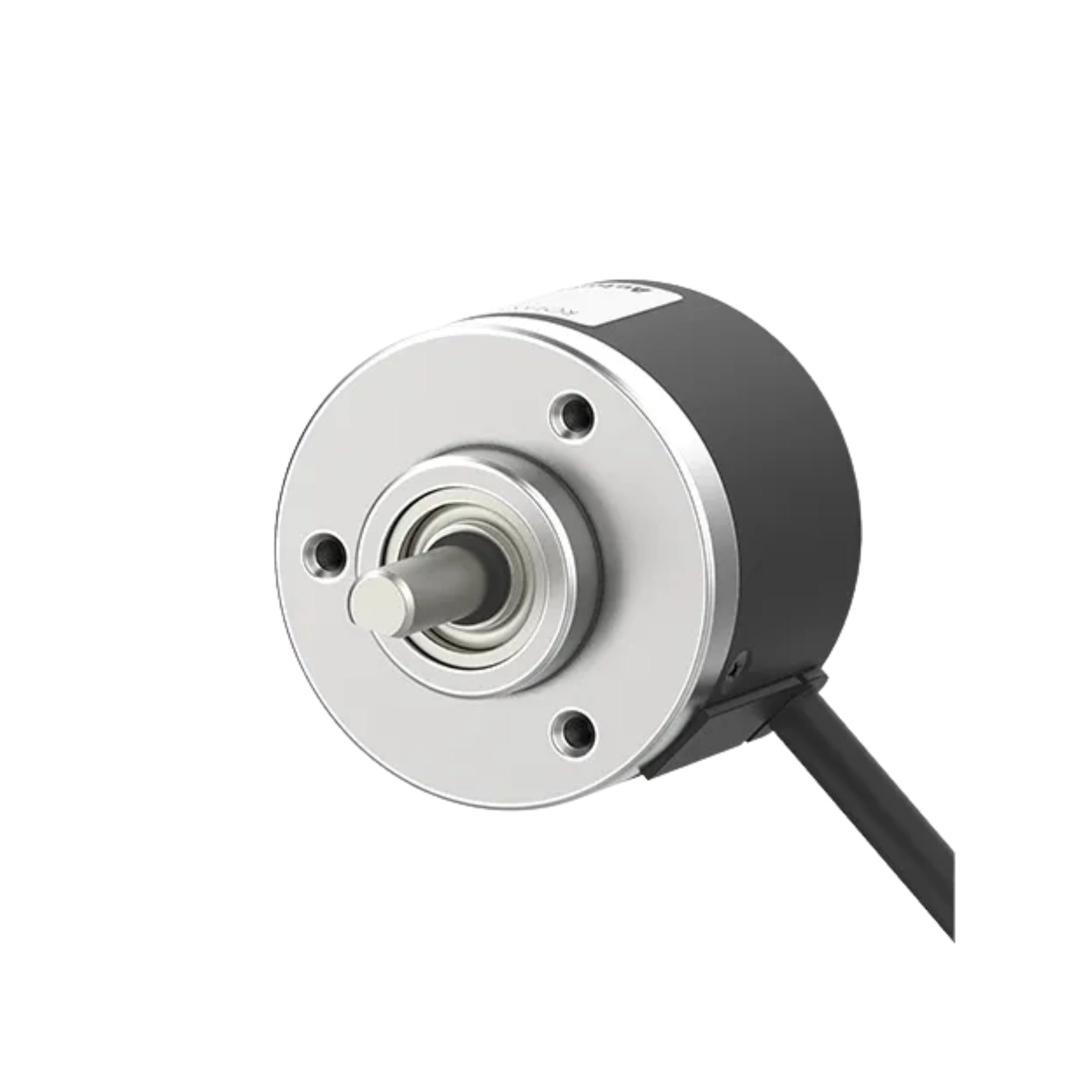

Autonics E40S6-1024-6-L-5

Autonics E40S6-1024-6-L-5

Overview

The Autonics E40S6-1024-6-L-5 is a compact incremental rotary encoder designed for accurate speed, position, and direction measurement in motion control systems. With 1024 pulses per revolution and a solid 6 mm shaft, it ensures precise feedback for motor control, conveyor systems, and industrial automation equipment. The encoder’s durable construction and reliable signal output make it a trusted choice for a wide range of industrial applications.

Key Features

• 1024 pulses per revolution for precise feedback

• Compact 40 mm diameter housing for space-saving installation

• Solid 6 mm shaft for stable rotation sensing

• Line driver output for noise-resistant signal transmission

• 5 VDC power supply operation

• Rugged metal housing ensures long service life

• High-speed response up to 300 kHz

Technical Specifications

• Manufacturer: Autonics

• Model: E40S6-1024-6-L-5

• Type: Incremental Rotary Encoder

• Resolution: 1024 PPR (Pulses per Revolution)

• Output Type: Line Driver (A, B, Z phase)

• Power Supply: 5 VDC ±5%

• Shaft Type: Solid Shaft

• Shaft Diameter: 6 mm

• Body Size: Ø40 mm

• Max Response Frequency: 300 kHz

• Allowable Shaft Load: Radial 30 N / Axial 20 N

• Operating Temperature: –10 °C to +70 °C

• Connection Type: Cable Type (2 m)

• Protection Rating: IP50

• Material: Aluminum housing, stainless steel shaft

• Certifications: CE, RoHS compliant

Applications

• Motor speed and direction monitoring

• Conveyor and material handling systems

• Position control in CNC and robotics

• Industrial automation and feedback systems

• Encoder feedback for servo and stepper motors

Why Choose Autonics E40S6-1024-6-L-5?

• High-resolution encoder with stable and accurate signal output

• Compact, durable design suited for limited spaces

• Excellent noise immunity with line driver output

• Reliable performance for continuous industrial use

• Backed by Autonics’ trusted engineering and quality

Order Now

Upgrade your motion control system with the Autonics E40S6-1024-6-L-5, providing precise feedback and reliable performance for industrial automation applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
