Overview

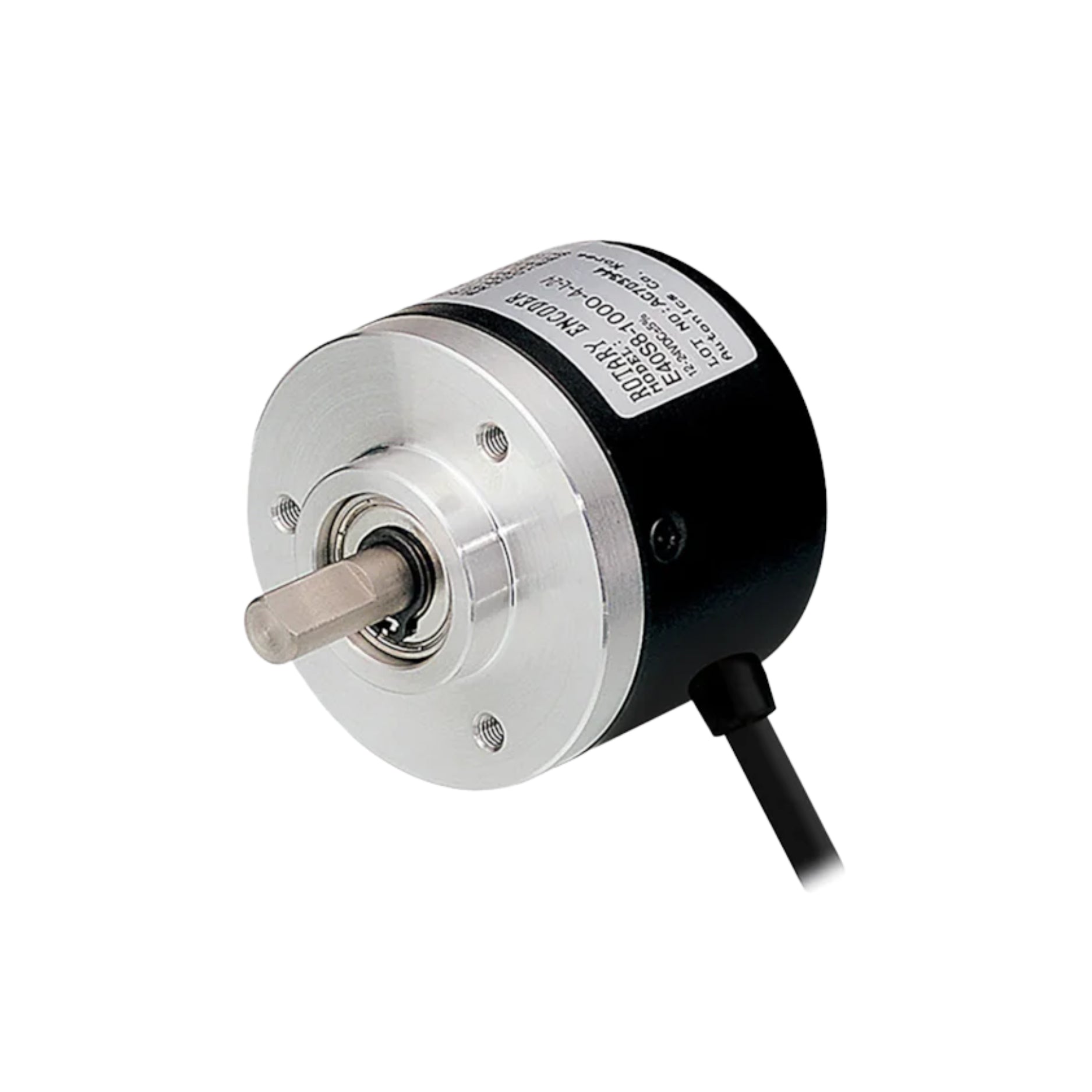

The Autonics E40S6-1024-3-T-24 is a compact incremental rotary encoder engineered for precise position and speed detection in automation and motion control systems. Featuring 1024 pulses per revolution and a solid shaft design, this encoder ensures stable, high-resolution feedback for reliable motor and machinery control. Its durable construction and versatile 5–24 VDC power range make it suitable for a wide range of industrial environments.

Key Features

• 1024 pulses per revolution (PPR) for high accuracy

• Solid shaft (6 mm diameter) for secure coupling

• NPN open collector output (3-channel: A, B, Z)

• Wide power supply range: 5–24 VDC

• Compact Ø40 mm body size for easy installation

• Aluminum housing and stainless steel shaft for durability

• LED status indicator for signal output check

• Excellent vibration and shock resistance

Technical Specifications

• Manufacturer: Autonics

• Model Code: E40S6-1024-3-T-24

• Type: Incremental Rotary Encoder

• Resolution: 1024 pulses per revolution (PPR)

• Shaft Type: Solid shaft (Ø6 mm)

• Output Type: NPN open collector, 3-channel (A, B, Z)

• Power Supply: 5–24 VDC ±5%

• Current Consumption: Max. 80 mA

• Response Frequency: 300 kHz max.

• Housing Material: Aluminum

• Shaft Material: Stainless Steel

• Connection Type: Cable (2 m)

• Protection Rating: IP50

• Operating Temperature: –10 °C to +70 °C

• Vibration Resistance: 1.5 mm amplitude, 10–55 Hz

• Shock Resistance: 50 G, 3 times in each direction

• Certifications: CE, RoHS compliant

Applications

• CNC machinery and lathes

• Industrial robots and servo systems

• Conveyor and packaging automation

• Position, speed, and rotation feedback systems

• Textile, printing, and labeling machines

Why Choose Autonics E40S6-1024-3-T-24?

• Precise and stable rotational feedback for automation control

• Compact and durable construction for long-term reliability

• Simple integration with PLCs and controllers

• Backed by Autonics’ proven sensor and motion technology

Order Now

Upgrade your motion control system with the Autonics E40S6-1024-3-T-24, providing precise, reliable, and efficient rotary position feedback for industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
