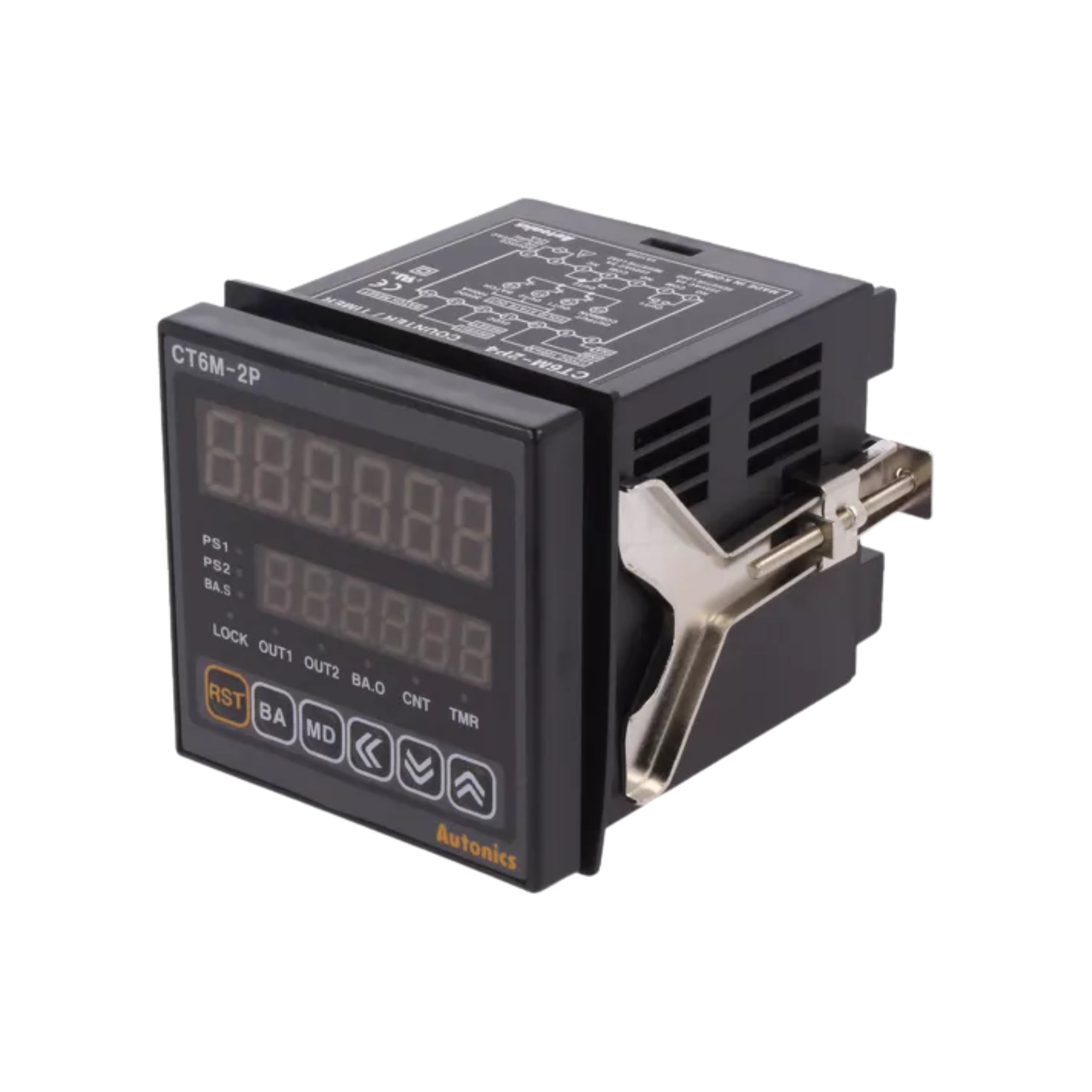

Autonics CT6M-2P4

Autonics CT6M-2P4

The Autonics CT6M-2P4 is a high-performance digital counter/timer designed for precise counting, timing, and control in automation systems. With a compact 1/16 DIN size (48×48 mm) and dual 6-digit display, it offers excellent visibility and versatility for a wide range of industrial applications. The CT6M-2P4 supports multiple input modes, reset functions, and output configurations, making it a reliable choice for production lines and process monitoring.

Key Features

• Multi-mode operation: counter, timer, or totalizer

• Dual 6-digit LED display for easy monitoring

• Supports NPN/PNP sensor inputs

• Selectable input signal speed (1 cps / 30 cps / 1 kHz / 5 kHz)

• Preset and batch counting capabilities

• Two independent outputs for control flexibility

• Compact 48×48 mm DIN panel mount design

• Power supply: 100–240 V AC universal input

• Memory backup (EEPROM) retains data after power loss

Technical Specifications

• Manufacturer: Autonics

• Model: CT6M-2P4

• Type: Digital Counter/Timer

• Display: Dual 6-digit red LED

• Input Type: NPN/PNP (selectable)

• Input Speed: 1 cps / 30 cps / 1 kHz / 5 kHz

• Output Type: Relay output (SPDT × 2)

• Power Supply: 100–240 V AC, 50/60 Hz

• Reset Function: Manual, external, or power reset

• Mounting: Panel mount (DIN 48×48 mm)

• Operating Temperature: –10 °C to +55 °C

• Storage Temperature: –25 °C to +65 °C

• Protection Rating: Front panel IP65

• Certifications: CE, UL, RoHS compliant

Applications

• Production and assembly line control

• Counting and timing in packaging machines

• Process automation and batching systems

• Conveyor speed and part counting

• General industrial monitoring and control

Why Choose Autonics CT6M-2P4?

• Multi-functional counter/timer for flexible use

• Bright dual display for real-time monitoring

• Reliable performance in industrial environments

• Trusted Autonics design and durability

Order Now

Optimize your process control with the Autonics CT6M-2P4, the reliable multi-mode digital counter/timer designed for precision, durability, and easy integration in automation systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
