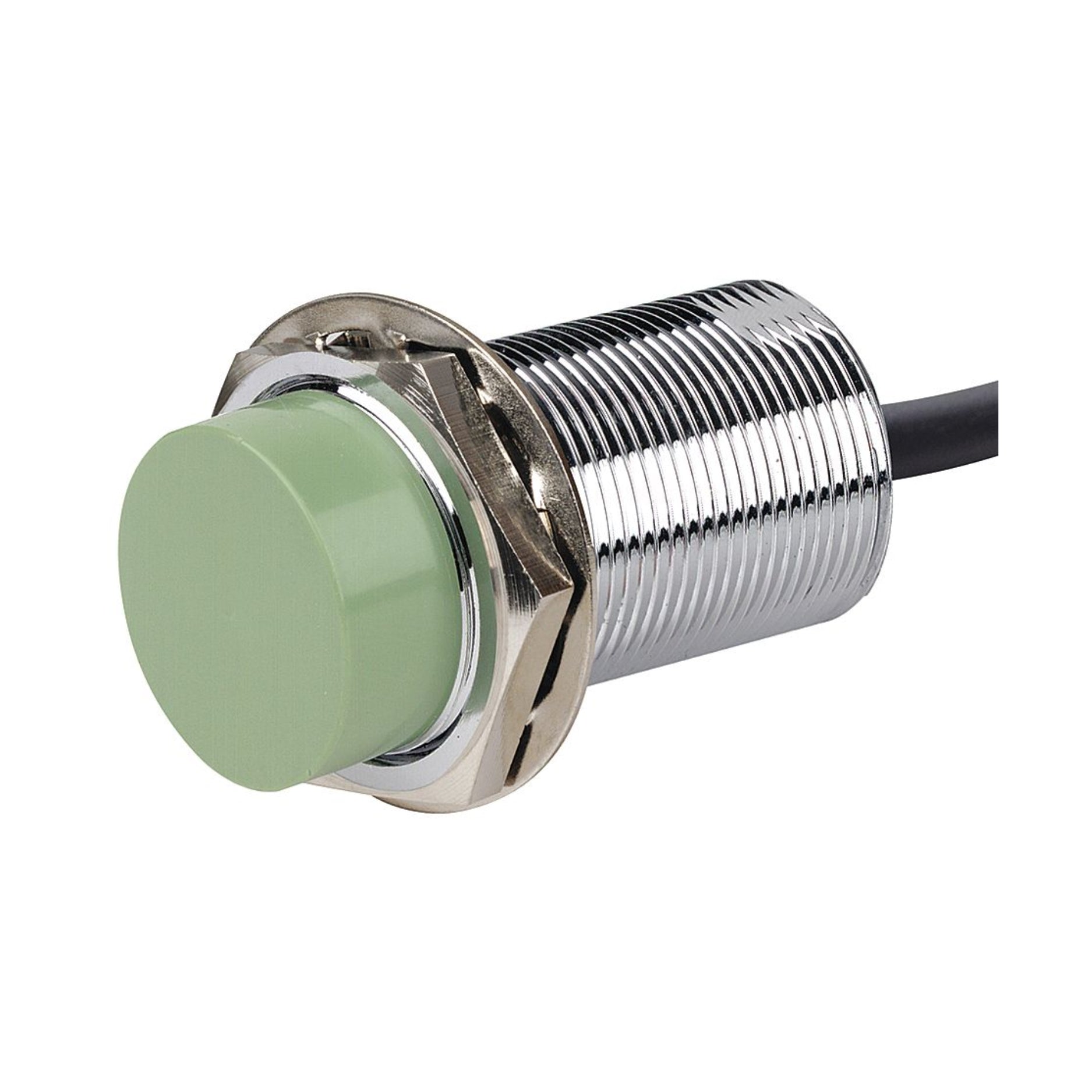

Autonics CR30-15DN

Autonics CR30-15DN

Overview

The Autonics CR30-15DN is a high-performance capacitive proximity sensor designed to detect a wide range of materials — including metals, plastics, liquids, powders, and glass — with exceptional reliability. Featuring a 15 mm sensing distance and a rugged M30 cylindrical housing, it ensures stable detection in diverse industrial environments. With adjustable sensitivity and a wide voltage range, the CR30-15DN offers maximum flexibility for automation and material detection applications.

Key Features

• 15 mm sensing distance for versatile detection

• Detects both metallic and non-metallic materials

• NPN open collector output (Normally Open)

• Adjustable sensitivity for various targets

• Wide operating voltage (12–24 V DC)

• LED indicator for operation status monitoring

• Durable nickel-plated brass housing

• IP67-rated for superior dust and water protection

Technical Specifications

• Manufacturer: Autonics

• Model: CR30-15DN

• Type: Capacitive Proximity Sensor

• Sensing Distance: 15 mm

• Mounting Type: Non-flush, M30 cylindrical

• Output Type: NPN, Normally Open (3-wire DC)

• Operating Voltage: 12–24 V DC

• Current Consumption: ≤10 mA

• Response Frequency: 20 Hz

• Sensitivity Adjustment: Built-in potentiometer

• Housing Material: Nickel-plated Brass

• Protection Rating: IP67

• Operating Temperature: –25 °C to +70 °C

• Connection Type: Cable (2 m)

• Standards & Certifications: CE, UL, RoHS compliant

Applications

• Detection of solids, liquids, and granular materials

• Level sensing in tanks and hoppers

• Conveyor systems and packaging machinery

• Plastic, glass, or wood detection in production lines

• Material presence or absence detection

Why Choose Autonics CR30-15DN?

• Versatile detection for a wide range of materials

• Adjustable sensitivity for precise performance

• Durable M30 metal housing for industrial reliability

• Backed by Autonics’ proven sensor technology

Order Now

Boost your automation efficiency with the Autonics CR30-15DN, offering stable, precise, and flexible material detection for industrial and process control applications.
