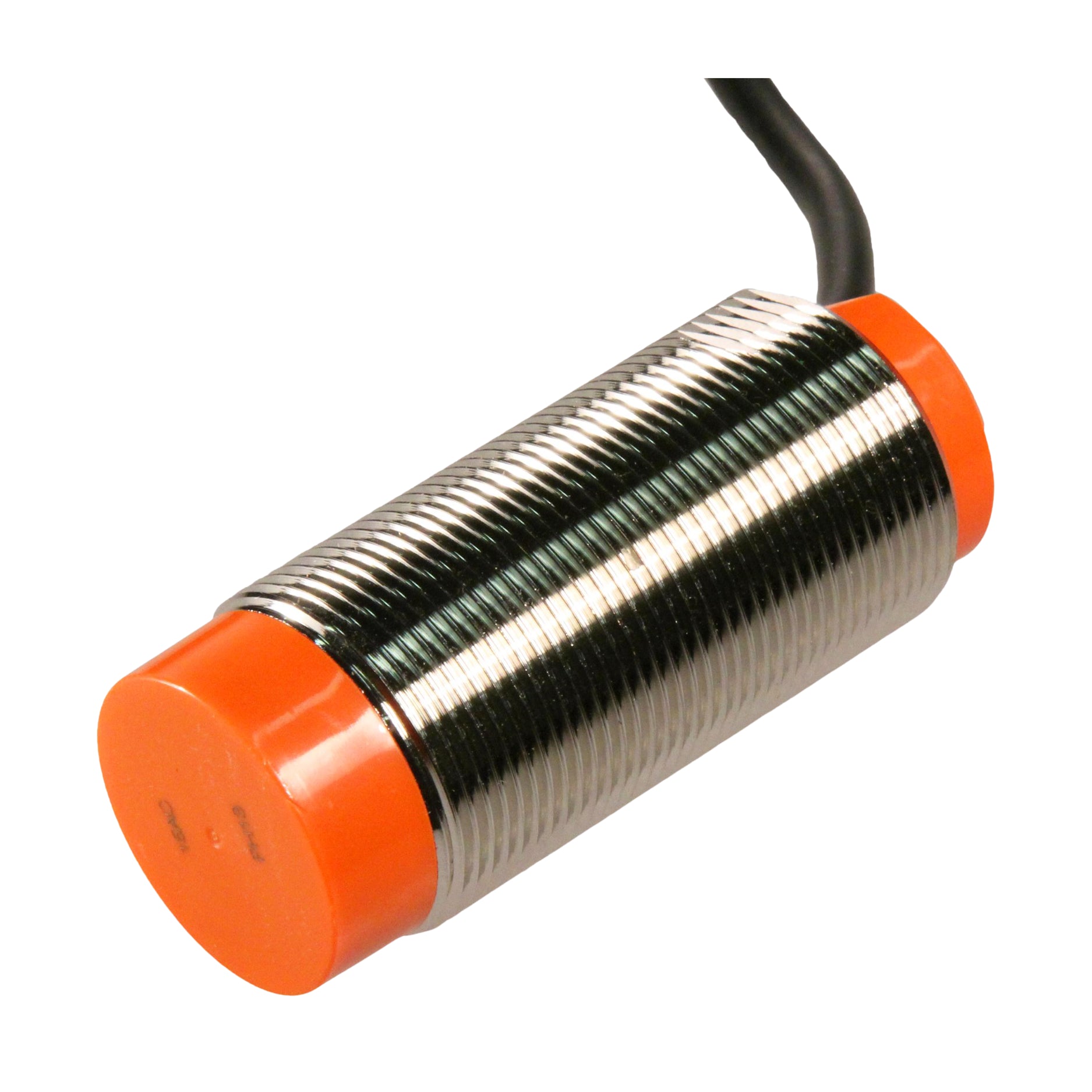

Autonics CR30-15AC

Autonics CR30-15AC

Overview

The Autonics CR30-15AC is a robust capacitive proximity sensor designed for detecting a wide range of materials, including metal, plastic, glass, wood, liquid, and powder. With a large 15 mm sensing distance and M30 threaded cylindrical design, this sensor delivers high reliability and flexibility for various industrial automation applications. Its AC operation capability and durable construction make it ideal for long-term use in harsh environments.

Key Features

• 15 mm sensing distance for versatile material detection

• Detects metal and non-metal objects (solid, liquid, or powder)

• Operates on wide AC voltage range (110–220 V AC)

• Built-in LED operation indicator for easy status monitoring

• Adjustable sensitivity via top-mounted trimmer

• IP66-rated protection against dust and moisture

• Durable plastic housing with nickel-plated brass nuts

• Easy installation with standard M30 threaded body

Technical Specifications

• Manufacturer: Autonics

• Model: CR30-15AC

• Type: Capacitive Proximity Sensor

• Sensing Distance: 15 mm

• Mounting Type: Non-flush, M30 threaded

• Output Type: AC 2-wire (Normally Open)

• Operating Voltage: 110–220 V AC, 50/60 Hz

• Current Consumption: ≤2.2 mA

• Response Frequency: 10 Hz

• Sensitivity Adjustment: Built-in potentiometer

• Housing Material: PBT (Plastic)

• Protection Rating: IP66

• Operating Temperature: –25 °C to +70 °C

• Connection Type: Cable (2 m)

• Certifications: CE, RoHS compliant

Applications

• Level detection of liquids and powders in tanks

• Presence detection on conveyors and packaging lines

• Non-contact detection of glass, wood, or plastic objects

• Food and beverage processing equipment

• General industrial automation and process control

Why Choose Autonics CR30-15AC?

• Wide detection range for multiple material types

• Reliable AC power operation for flexible system design

• Adjustable sensitivity for application versatility

• Proven Autonics performance and durability

Order Now

Ensure stable and precise detection with the Autonics CR30-15AC, the ideal capacitive sensor for diverse industrial automation applications powered by AC systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
