Allen-Bradley 2711P-T12W22D9P

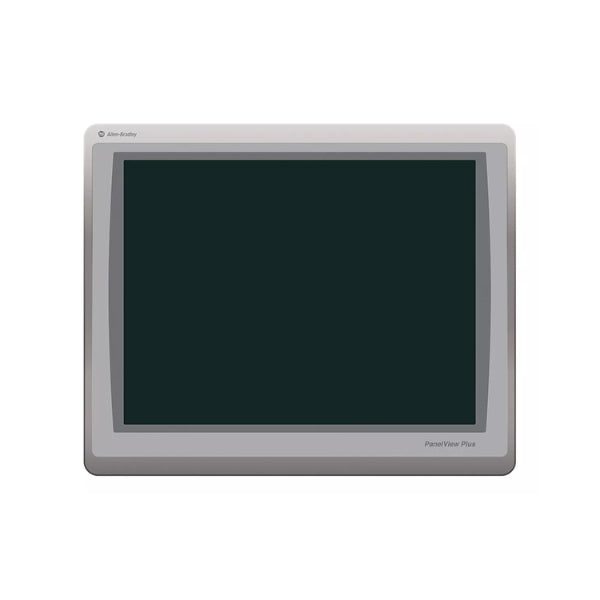

Allen-Bradley 2711P-T12W22D9P | PanelView Plus 7 Performance HMI Terminal

Overview:

The Allen-Bradley 2711P-T12W22D9P is a high-performance HMI terminal from the PanelView Plus 7 Performance series, designed for industrial automation and process control applications. It features a 12.1-inch widescreen WXGA TFT touchscreen display with 1280x800 resolution and 18-bit color graphics, ensuring sharp visuals and user-friendly interaction. Equipped with a single Ethernet DLR port, this terminal supports Device Level Ring (DLR) topology for enhanced network reliability. Powered by 24V DC (18-30V DC), it is compatible with SELV (Safety Extra Low Voltage) and PELV (Protective Extra Low Voltage) power supplies. Running on Windows CE OS License Pro, it offers expanded functionality and flexibility for advanced automation environments.

Key Features:

• 12.1" WXGA TFT Touchscreen – High-resolution 1280x800 widescreen display
• 18-bit Color Graphics – Provides enhanced visual clarity
• Wide Aspect Ratio (16:10) – Optimized for expanded operator visibility
• Single Ethernet DLR Port – Supports Device Level Ring (DLR) topology for network redundancy
• 24V DC Power Supply (18-30V DC) – Compatible with SELV & PELV power sources
• Windows CE OS License Pro – Offers advanced functionality for automation applications
• Performance Model – Delivers faster processing speeds and greater capabilities
• Industrial-Grade Design – Built for rugged environments and long-term reliability

Technical Specifications:

• Model: 2711P-T12W22D9P
• Display Size: 12.1 inches
• Resolution: 1280x800 WXGA
• Display Type: TFT Color Touchscreen
• Color Depth: 18-bit graphics
• Aspect Ratio: 16:10 Widescreen
• Ethernet Ports: 1-Port DLR (Device Level Ring)
• Operating System: Windows CE OS License Pro
• Power Supply: 24V DC (18-30V DC) SELV/PELV compatible
• Series: PanelView Plus 7 Performance

Applications:

• Factory Automation – Enables real-time HMI control and visualization
• Process Control Systems – Enhances monitoring and automation efficiency
• Machine Interface Management – Allows operators to interact seamlessly with industrial equipment
• SCADA & HMI Systems – Supports seamless integration into automation networks

Why Choose the Allen-Bradley 2711P-T12W22D9P?

The Allen-Bradley 2711P-T12W22D9P PanelView Plus 7 Performance Terminal delivers high-resolution touchscreen control, advanced automation capabilities with Windows CE OS Pro, network redundancy with Ethernet DLR, and industrial-grade reliability, making it an ideal solution for demanding HMI applications.
