Allen-Bradley 1766-L32AWAA

Allen-Bradley 1766-L32AWAA | MicroLogix 1400 Programmable Logic Controller – Digital + Analog I/O, 110/240V AC Power

Overview

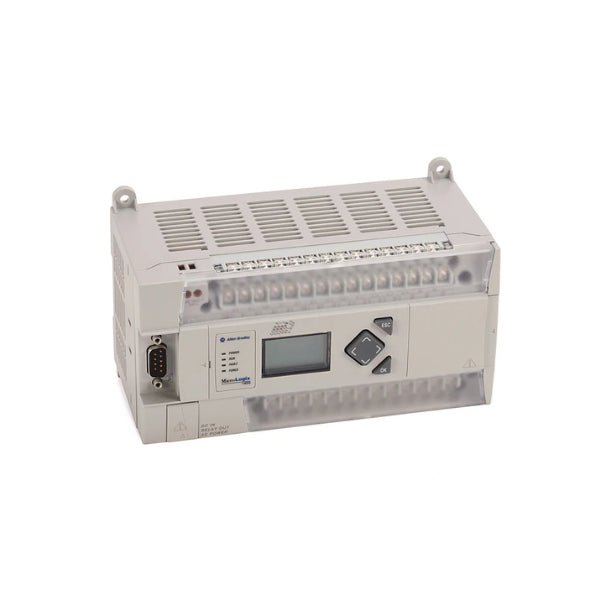

The Allen-Bradley 1766-L32AWAA is a versatile MicroLogix 1400 Series A controller that combines digital and analog I/O in one compact unit. It features 20 digital 120V AC inputs, 12 relay outputs, 4 analog inputs (12-bit resolution), and 2 analog outputs (12-bit resolution). Powered by 110/240V AC, this all-in-one PLC is perfect for applications that require both discrete and analog control in a space-saving format.

With built-in Ethernet/IP, serial ports, LCD display, and expansion capabilities, it's well-suited for standalone or networked industrial automation systems.

Key Features

• Digital Inputs: 20 (120V AC)

• Relay Outputs: 12 (VAC/VDC compatible, NO contacts)

• Analog Inputs: 4 (12-bit, voltage or current selectable)

• Analog Outputs: 2 (12-bit, voltage or current selectable)

• Power Supply: 110/240V AC

• Integrated Communication:

  • Ethernet/IP

  • RS-232/RS-485 combo port

• LCD Display: Built-in for local monitoring and programming

• Expandable: Supports 1762 I/O modules

• Real-Time Clock: Built-in

• Memory: 20KB user program, 10KB user data

Technical Specifications

• Model: 1766-L32AWAA

• Series: A

• Digital Inputs: 20 (120V AC)

• Relay Outputs: 12 (5–265V AC / 5–125V DC, 2A max)

• Analog Inputs: 4 (0–10V DC, 4–20 mA selectable)

• Analog Outputs: 2 (0–10V DC or 4–20 mA)

• Power Supply: 85–265V AC, 47–63 Hz

• Mounting: DIN rail or panel

• Operating Temp: 0°C to +55°C

• Certifications: UL, CE, c-UL

Applications

• OEM and Machine Control – Integrated analog and digital I/O

• Process Automation – Monitor and control temperature, pressure, or flow

• Building Management – HVAC and utility monitoring

• Packaging Systems – Mixed I/O applications in compact space

Why Choose the 1766-L32AWAA?

• Built-in analog I/O eliminates need for separate modules

• AC-powered, compact, and network-ready

• Perfect for hybrid automation applications

Order Now

In stock and ships worldwide. Ask about analog signal conditioners, 1762 expansion modules, or PLC programming kits.
