Allen-Bradley 1786-TCAP

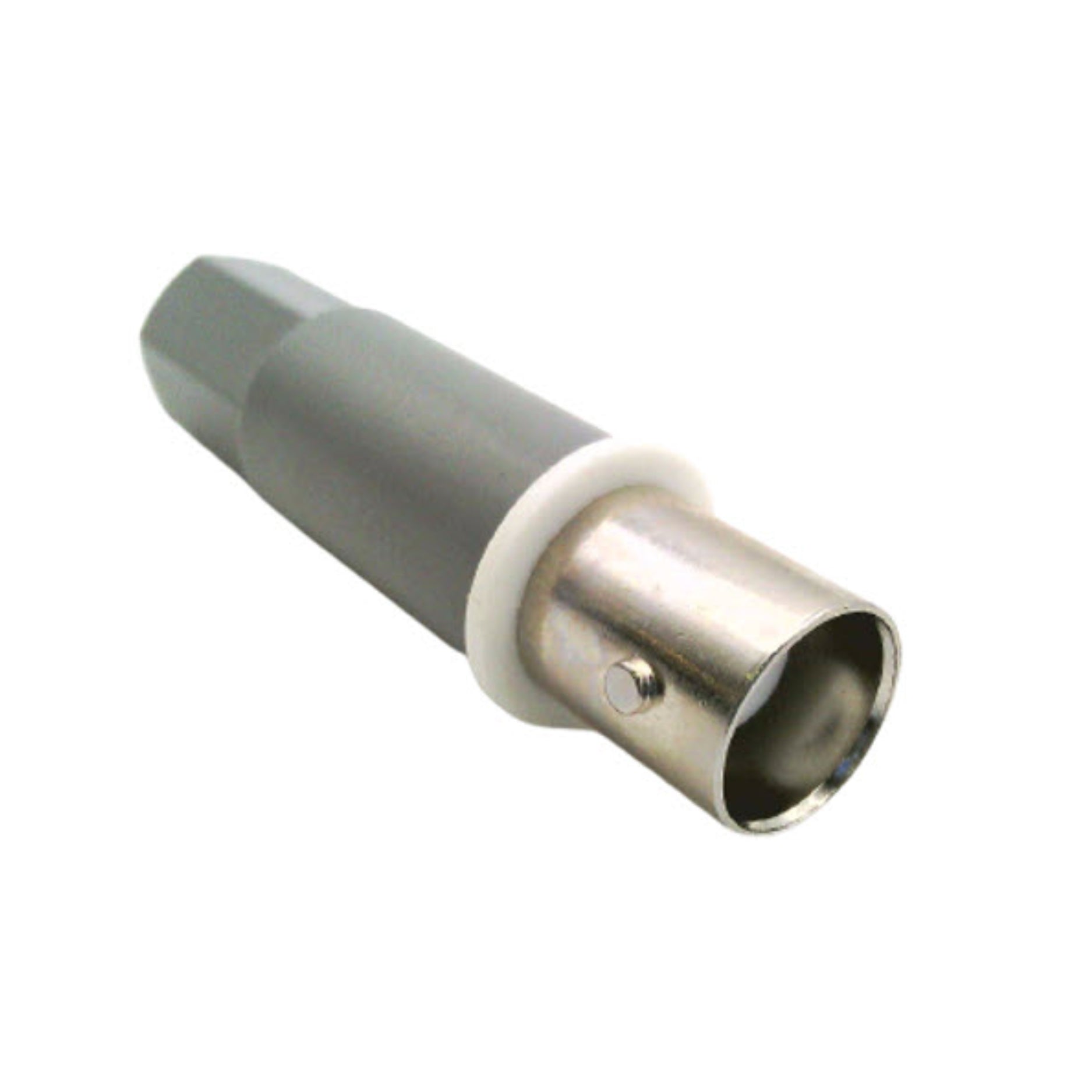

Allen-Bradley 1786-TCAP ControlNet Dummy Load Terminator

Overview

The Allen-Bradley 1786-TCAP is a dummy load used in ControlNet™ networks to terminate unused coaxial BNC tap ports. Designed for systems utilizing coaxial trunk lines, this terminator prevents signal reflections and maintains signal integrity by properly closing off open tap connections. It’s a compact and essential component for reliable ControlNet installations.

Technical Specifications

• Brand: Allen-Bradley

• Series: Bulletin 1786

• Part Number: 1786-TCAP

• Function: Dummy load / terminator

• Connector Type: BNC

• Application: Termination of unused coaxial T-taps

• Impedance: 75 Ohm

• Environmental Rating: IP20

• Condition: New

Key Features

• Terminates unused ControlNet coaxial tap ports

• Maintains proper network impedance (75 Ohm)

• Helps prevent signal reflections and data errors

• Easy BNC snap-on installation

• Compact and durable design

• Suitable for all ControlNet coaxial segments using BNC T-taps

Applications

• Unused ControlNet tap terminations

• Maintenance and commissioning of ControlNet networks

• Network reliability optimization

• OEM and retrofit installations with coax media

Shipping & Availability

The 1786-TCAP is in stock and available for fast worldwide shipping.
