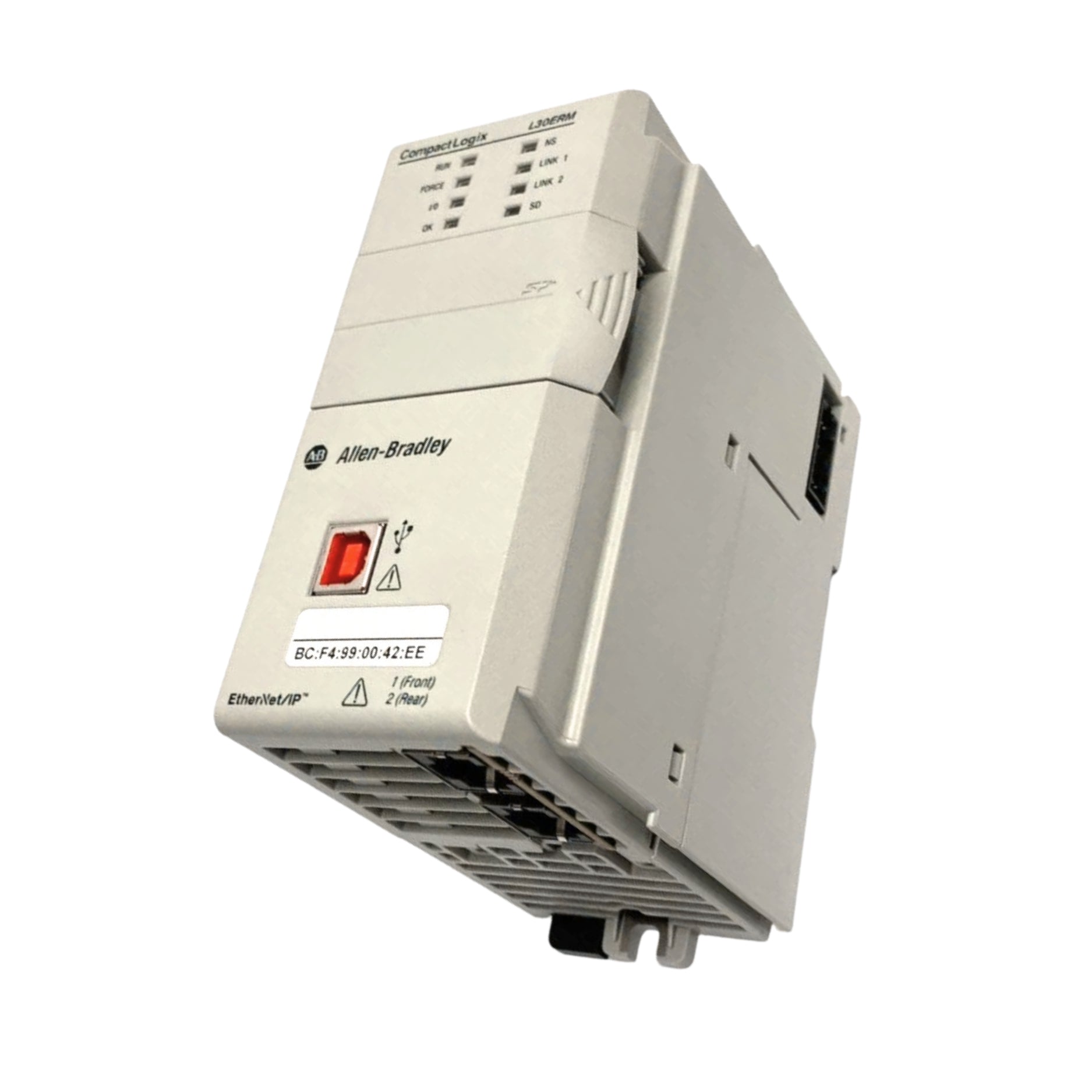

Allen-Bradley 1769-L30ERM

Allen-Bradley 1769-L30ERM

Overview

The Allen-Bradley 1769-L30ERM is a CompactLogix 5370 L3 Ethernet controller designed for high-performance automation systems. Featuring dual EtherNet/IP ports with Device Level Ring (DLR) capability, 1MB user memory, and support for motion control, this module is ideal for scalable applications requiring fast, reliable communication and control.

Key Features

• 1MB user memory

• Dual Ethernet/IP ports with DLR capability

• USB programming and downloading port

• Supports 8 local I/O modules

• Supports 16 EtherNet/IP nodes

• 4 Axis CIP motion with kinematics function

• Compact and modular design

• Ideal for high-speed motion and machine control

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1769-L30ERM

• Series: CompactLogix 5370 L3

• Memory: 1MB user memory

• Communication Ports:

  • 1 x USB (Type B)

  • 2 x EtherNet/IP ports (RJ-45, 10/100 Mbps, DLR supported)

• Motion Support: 4 Axis CIP Motion with Kinematics

• Expansion I/O Modules: Up to 8 local 1769 modules

• EtherNet/IP Nodes: Supports up to 16

• Backplane Current (5V): 800 mA

• Backplane Current (24V): 0 mA

• Programming Software: Studio 5000 Logix Designer

• Mounting Type: DIN rail or panel mount

• Dimensions: 118 mm x 87 mm x 87 mm

• Weight: Approx. 0.5 kg

• Operating Temperature: 0 to 60 °C

Applications

• Machine control and motion systems

• Packaging and material handling

• Process control with distributed I/O

• Systems requiring fast Ethernet/IP communications

• Modular automation systems in OEM and industrial settings

Why Choose the 1769-L30ERM

• Compact and efficient design for mid-size control applications

• Dual Ethernet ports for network redundancy

• Integrated motion control reduces the need for additional hardware

• Supports flexible expansion and high-speed communication
