Allen-Bradley 5069-OA16

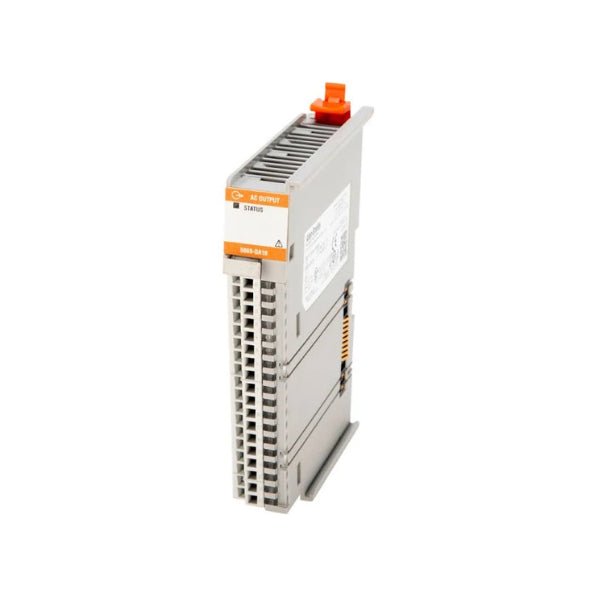

Allen-Bradley 5069-OA16 | 16-Channel AC Output Module – Compact 5000 Series

Overview

The 5069-OA16 module from Allen-Bradley (Rockwell Automation) is a 16-channel AC digital output module, engineered for use with Compact 5000 I/O systems. It delivers high-performance AC control for industrial devices like solenoids, lights, and actuators, making it ideal for robust control systems in manufacturing and processing environments.

Key Features

• Number of Outputs: 16 digital AC channels

• Output Voltage Range: 74–264V AC

• Output Current per Channel: 0.5 A continuous

• Total Module Current: 8 A max

• Isolation: Channel-to-backplane and channel-to-channel

• Output Type: Triac (zero-cross switching)

• Status Indicators: Per channel and module status LEDs

• Diagnostics: Open-load detection and short-circuit protection

• Wiring Connection: Removable terminal block (RTB)

• Mounting Type: DIN rail, CompactLogix/ControlLogix compatibility

Technical Specifications

• Module Type: Digital AC Output

• Voltage Category: 120/240V AC

• Number of Outputs: 16 (individually isolated or grouped depending on wiring)

• Output Delay: Typically ≤ 0.5 ms

• Power Dissipation: Approx. 8.4 W max

• Operating Temp: 0 °C to 60 °C

• Standards: UL, CE, c-UL, ATEX, IECEx (depending on version)

• Product Series: Compact 5000 (Compact I/O)

Applications

• Discrete device control (lamps, valves, contactors)

• Packaging and conveying systems

• Machine automation requiring AC output switching

• Factory automation and process control

Why Choose the 5069-OA16?

• Compact form factor for scalable systems

• Rockwell Automation reliability

• Built-in diagnostics for safe, dependable operation

• Designed for demanding industrial environments
