Allen-Bradley 1769-ARM

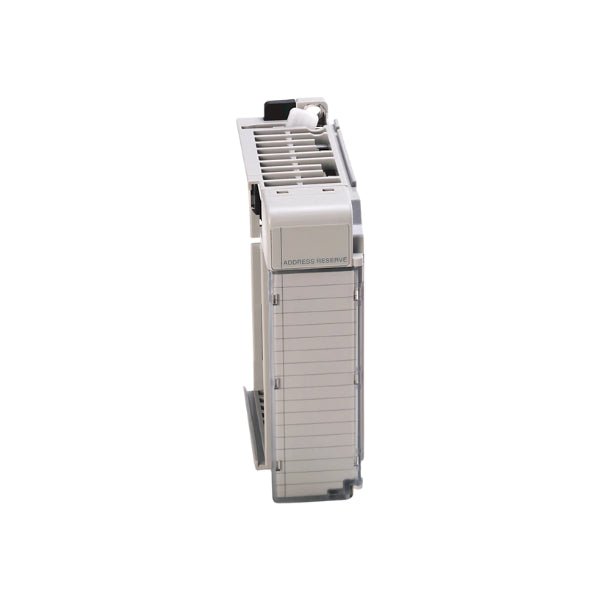

Allen-Bradley 1769-ARM | CompactLogix Address Reserve Module – Slot Placeholder for Expansion

Overview

The Allen-Bradley 1769-ARM is an address reserve module designed for use in CompactLogix and MicroLogix 1500 I/O systems. This module reserves an I/O slot in the local expansion bus for future module additions—allowing you to plan ahead and preserve addressing without the need to reconfigure or rewire your system later.

The 1769-ARM is passive (no electrical function), but it plays a vital role in modular system flexibility, especially in phased installations or system expansions.

Key Features

• Purpose: Reserves space in CompactLogix I/O chassis

• Prevents Reconfiguration – Future modules can be added without changing addresses

• Ideal for Expansion Planning – Especially in phased control projects

• Passive Module – No electrical functionality

• Compact & Lightweight – Fits in a single I/O slot

Technical Specifications

• Model: 1769-ARM

• System Compatibility:

  • CompactLogix

  • MicroLogix 1500

• Slot Occupation: 1 I/O slot

• Function: Slot reservation only (no I/O or power draw)

• Mounting: DIN rail or panel mount (with chassis)

• Dimensions: Same form factor as 1769 I/O modules

• Operating Temp: 0°C to +60°C

Applications

• Modular Control Systems – Maintain consistent addressing

• Phased Installations – Reserve slots for future modules

• System Design Flexibility – Easily adapt to future needs

• CompactLogix I/O Bus Management

Why Choose the 1769-ARM?

• Eliminates the need to readdress I/O when expanding

• Simplifies future upgrades

• Easy to install and remove

Order Now

In stock and ships worldwide. Ask about CompactLogix I/O modules, controllers, or complete system design assistance.

Return to our CompactLogix Controllers main category to explore all models and specifications in this family.

Visit our Allen-Bradley Industrial Automation Products master category for the complete range of controllers, drives, motors, HMIs, and accessories.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
