Allen-Bradley VPL-B1003T-PK14AA

Allen-Bradley VPL-B1003T-PK14AA

Overview

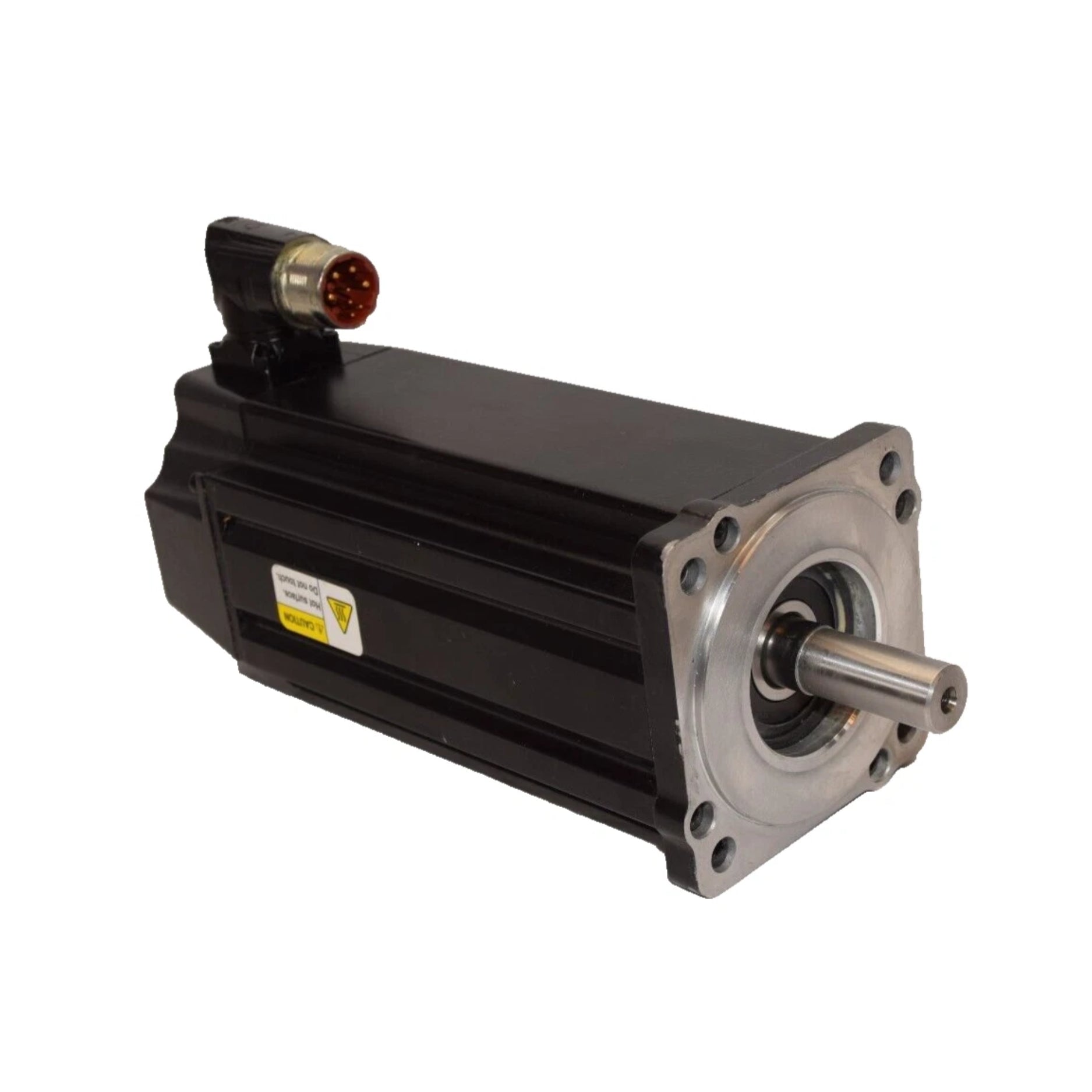

The Allen-Bradley VPL-B1003T-PK14AA is a high-speed, low-inertia servo motor from the Kinetix VP series. With a 100 mm bolt circle frame, three magnet stacks, and T winding, it delivers up to 6750 RPM for applications requiring rapid acceleration and precision. It includes an 18-bit single-turn and 12-bit multi-turn digital encoder, a keyless shaft, SpeedTec DIN connector, and a 24 V DC holding brake for enhanced motion control and safety.

Key Features

• Input Voltage: 480 VAC, 3-phase

• Frame Size: 100 mm bolt circle

• Rotor Inertia: Low inertia

• Magnet Stacks: 3

• Winding Type: T

• Rated Speed: 6750 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyless

• Connector: SpeedTec right-angle DIN

• Holding Brake: 24 V DC

• Mounting: IEC metric flange

• Enclosure: Standard industrial-grade

Technical Specifications

• Catalog Number: VPL-B1003T-PK14AA

• Rated Voltage: 480 VAC

• Rated Speed: 6750 RPM

• Feedback: Digital high-resolution, multi-turn

• Shaft: Smooth, keyless

• Brake: Included, 24 V DC

• Connector Type: Single SpeedTec DIN

• Mounting: IEC metric flange

• Protection Class: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 5.8 kg

Applications

• High-speed packaging and labeling equipment

• Fast-cycle robotics

• Automated material handling systems

• Multi-axis synchronized motion control

• OEM applications requiring braking and feedback redundancy

Why Choose the VPL-B1003T-PK14AA

• Delivers high-speed motion with precision feedback

• Integrated brake enhances safety and position hold

• Multi-turn encoder allows for absolute position retention

• Low inertia design enables rapid acceleration

• Keyless shaft simplifies integration and reduces wear

Order Now

The Allen-Bradley VPL-B1003T-PK14AA servo motor is available and ships worldwide.

Looking for more options?

Explore our complete selection of Kinetix VPL Low-Inertia Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
