Allen-Bradley VPL-B0632T-PJ14AA

Allen-Bradley VPL-B0632T-PJ14AA

Overview

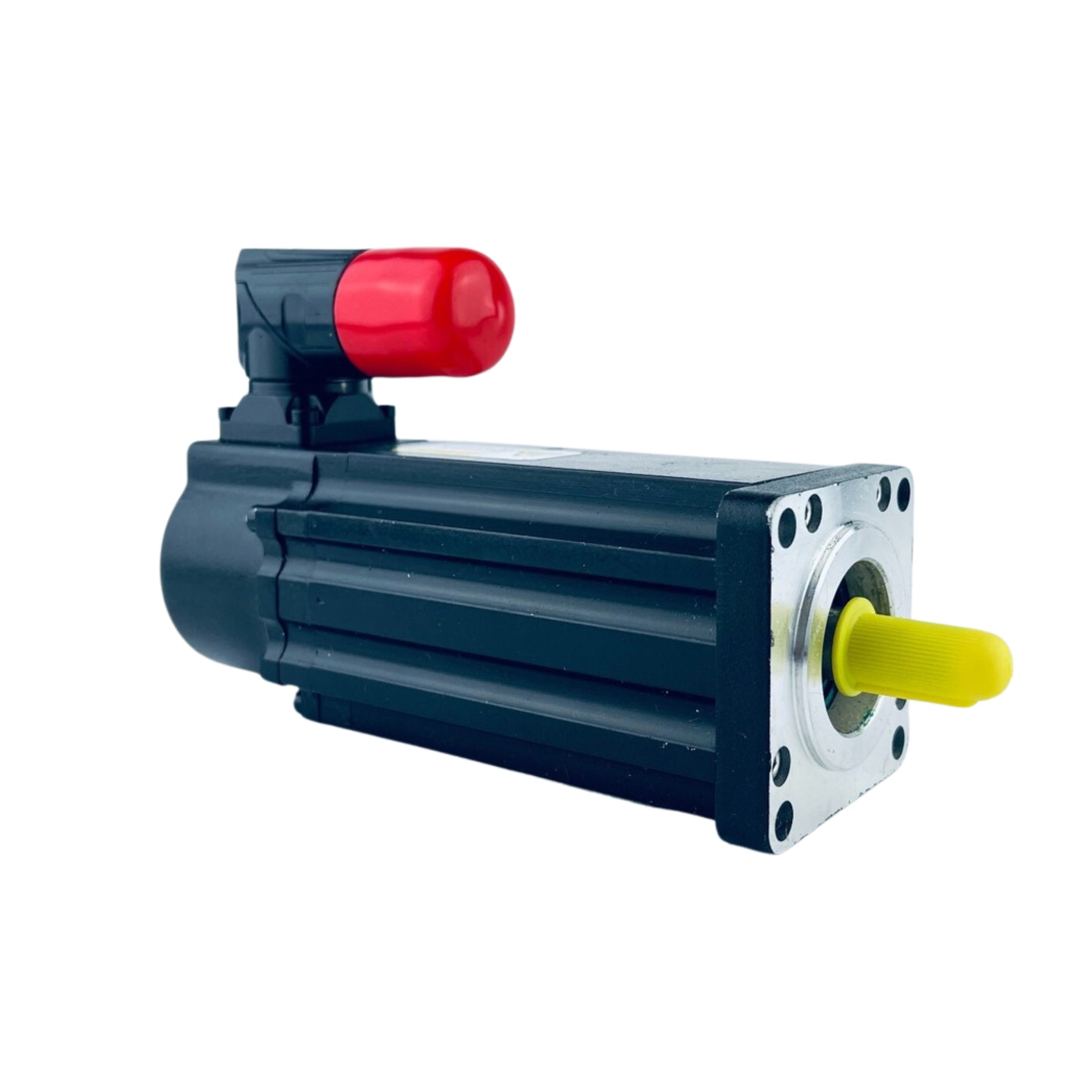

The Allen-Bradley VPL-B0632T-PJ14AA is a compact, high-performance Kinetix VP low-inertia servo motor ideal for dynamic and space-constrained industrial automation applications. It features a 63 mm bolt circle frame, two magnet stacks, and T winding, delivering speeds up to 6750 RPM. The motor includes an 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder, a keyed shaft, and a 24 V DC holding brake.

Key Features

• Voltage: 480 VAC, 3-phase

• Frame Size: 63 mm bolt circle

• Magnet Stacks: 2

• Winding Type: T

• Rated Speed: 6750 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyed

• Connector: SpeedTec right-angle DIN

• Holding Brake: 24 V DC

• Mounting: IEC metric flange

• Enclosure: Standard industrial housing

Technical Specifications

• Catalog Number: VPL-B0632T-PJ14AA

• Rated Voltage: 480 VAC

• Rated Speed: 6750 RPM

• Encoder Type: Digital high-resolution, multi-turn

• Shaft: Keyed

• Brake: Included, 24 V DC

• Connector Type: SpeedTec DIN, right-angle

• Mounting Style: IEC metric flange

• Protection Rating: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 2.9 kg

Applications

• High-speed pick-and-place systems

• Compact robotics and assembly lines

• Industrial motion platforms requiring fast response

• OEM equipment with tight space requirements

• Precision positioning in automation cells

Why Choose the VPL-B0632T-PJ14AA

• High-speed 6750 RPM operation for rapid motion

• Multi-turn encoder ensures precise absolute feedback

• Compact and lightweight for space-limited designs

• Keyed shaft ensures robust mechanical connection

• Integrated brake enhances control and safety

Order Now

The Allen-Bradley VPL-B0632T-PJ14AA servo motor is available and ships worldwide.

Looking for more options?

Explore our complete selection of Kinetix VPL Low-Inertia Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
