Overview

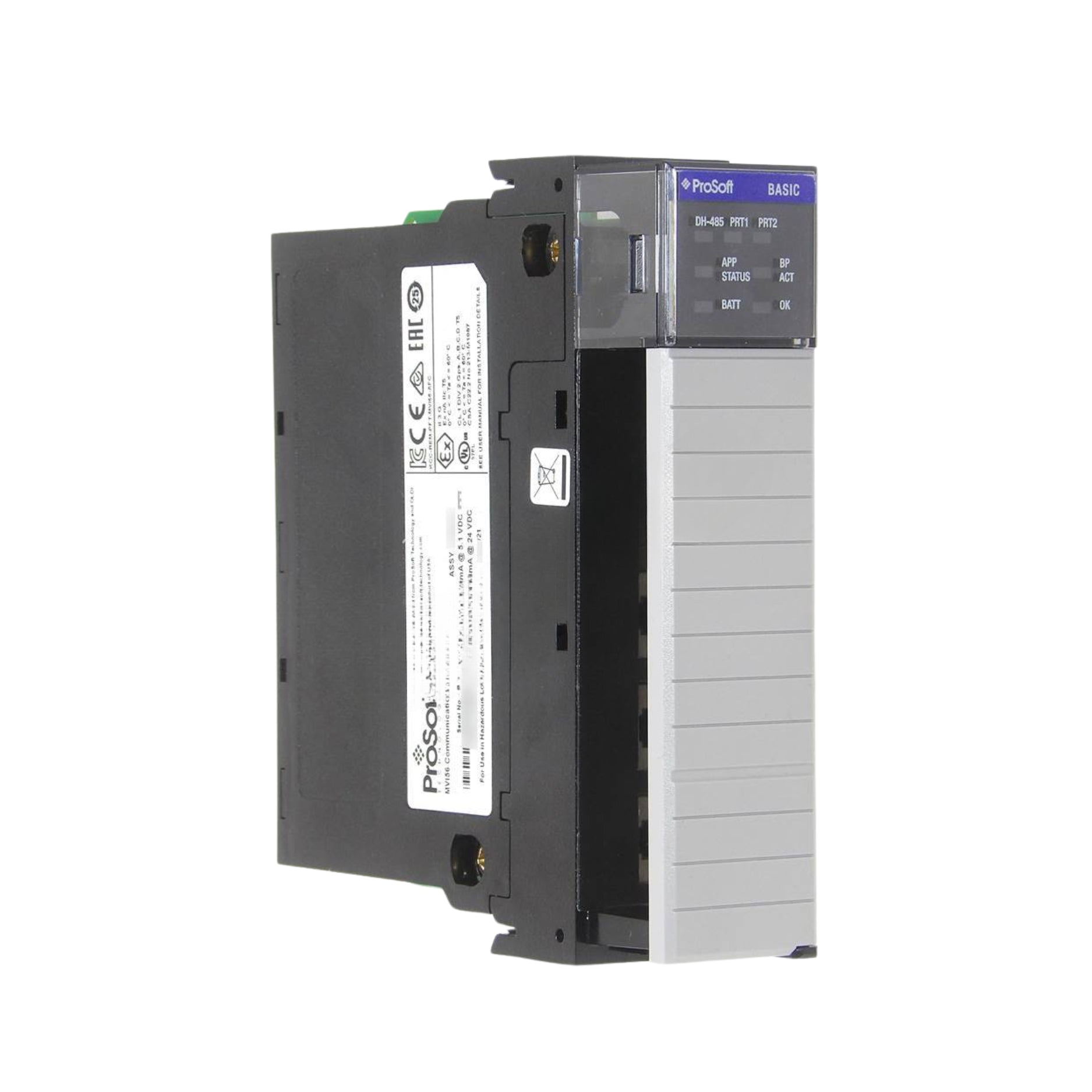

The ProSoft MVI56-BAS is a BASIC Communication Module designed for seamless integration of legacy BASIC programs from 1771-DB and 1747-BAS modules into modern Allen-Bradley ControlLogix systems. This single-slot module enables efficient data transfer between ControlLogix processors and external devices using ASCII or DF1 protocols, facilitating the modernization of industrial automation systems.

Key Features

• Compatibility: Integrates legacy 1771-DB and 1747-BAS BASIC programs into ControlLogix platforms

• Communication Ports:

  • CFG Port: RS-232 serial configuration

  • PRT1: ASCII communication or program port

  • PRT2: ASCII communication or DF1 communication

• Programming Language: Supports BASIC-52

• Memory:

  • RAM: 24,064 bytes

  • Program Storage: Compact Flash disk for easy backup and transfer

• DF1 Communication: Configurable as full-duplex device or half-duplex slave

• DH-485 Communication: Interfaces ControlLogix processor with DH-485 devices (requires Rockwell Automation AIC+ device)

• Data Transfer: Utilizes ladder logic for data exchange between module and processor

• LED Indicators: Module status, backplane transfer status, application status, and serial activity

Technical Specifications

• Catalog Number: MVI56-BAS

• Backplane Current Load: 800 mA @ 5 VDC; 3 mA @ 24 VDC

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Shock: 30 g operational; 50 g non-operational

• Vibration: 5 g from 10 to 150 Hz

• Relative Humidity: 5% to 95% (non-condensing)

• Mounting: Single-slot, 1756 backplane compatible

• Certifications: UL, CE, RoHS

Applications

• Legacy System Integration: Migrate existing BASIC programs to ControlLogix systems

• Industrial Automation: Interface with devices using ASCII protocols, such as printers, barcode readers, and modems

• Data Processing: Execute custom BASIC programs for specialized data handling tasks

• Communication Bridging: Facilitate communication between ControlLogix processors and DF1 or DH-485 devices

Why Choose the MVI56-BAS?

• Seamless Migration: Simplifies the transition from legacy BASIC modules to modern ControlLogix platforms

• Versatile Communication: Supports multiple protocols and interfaces for broad application compatibility

• Efficient Programming: BASIC-52 support allows for custom program development tailored to specific needs

• Reliable Performance: Designed for industrial environments with robust construction and certifications

Order Now

The ProSoft MVI56-BAS BASIC Communication Module is available and ready to ship worldwide.
