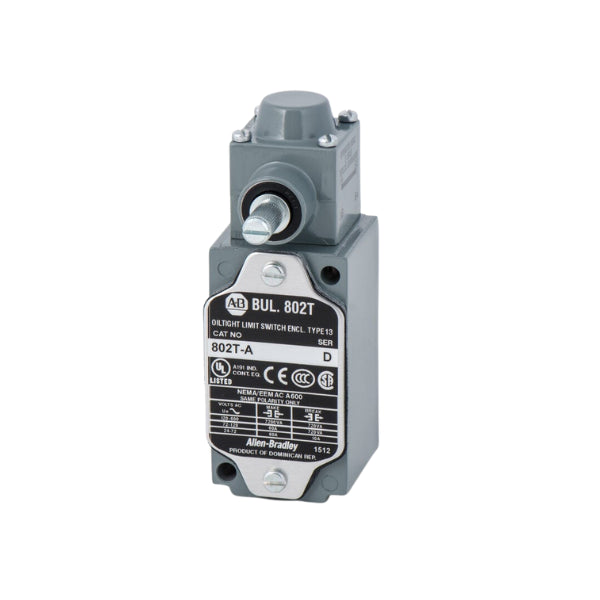

Allen-Bradley 802T-A

Product Description:

The Allen-Bradley 802T-A is a durable limit switch designed for reliable performance in demanding industrial environments.¹ It features NEMA Type 4 and 13 oiltight construction, a non-plug-in design (meaning it's typically hardwired), a lever-type actuator with spring return, and standard operating torque.² The switch has 2 circuits and can operate in both clockwise (CW) and counter-clockwise (CCW) directions.³ It requires a maximum torque/force of 0.34 Nm (3 lb*in) to operate and is rated for 600V AC, 10 Amp Max.

Key Features:

• NEMA Type 4 and 13 Oiltight Construction: Provides protection against dust, water, oil, and other contaminants, making it suitable for harsh industrial environments.⁴
• Non-Plug-In Design: Typically hardwired for a more permanent connection.
• Lever Type Actuator: Offers versatile actuation options.⁵
• Spring Return: Ensures consistent and reliable switch operation.⁶
• 2-Circuit: Provides two separate circuits for control flexibility.⁷
• CW and CCW Operation: Can be actuated in both clockwise and counter-clockwise directions.
• 0.34 Nm (3 lb*in) Max. Torque/Force to Operate: Specifies the maximum force required to actuate the switch.
• 600V AC 10 Amp Max: Specifies the maximum voltage and current the switch contacts can handle.

Technical Specifications:

• Product Type: Limit Switch
• Catalog Number: 802T-A
• Enclosure Rating: NEMA Type 4 and 13 (Oiltight)
• Actuator Type: Lever, Spring Return⁸
• Operating Torque/Force: 0.34 Nm (3 lb*in) Max.

• Operation: CW and CCW
• Connection Type: Non-Plug-In (Hardwired)

Applications:

• Machine guarding
• Material handling
• Packaging machinery
• Conveyors
• Position detection
• Limit sensing
