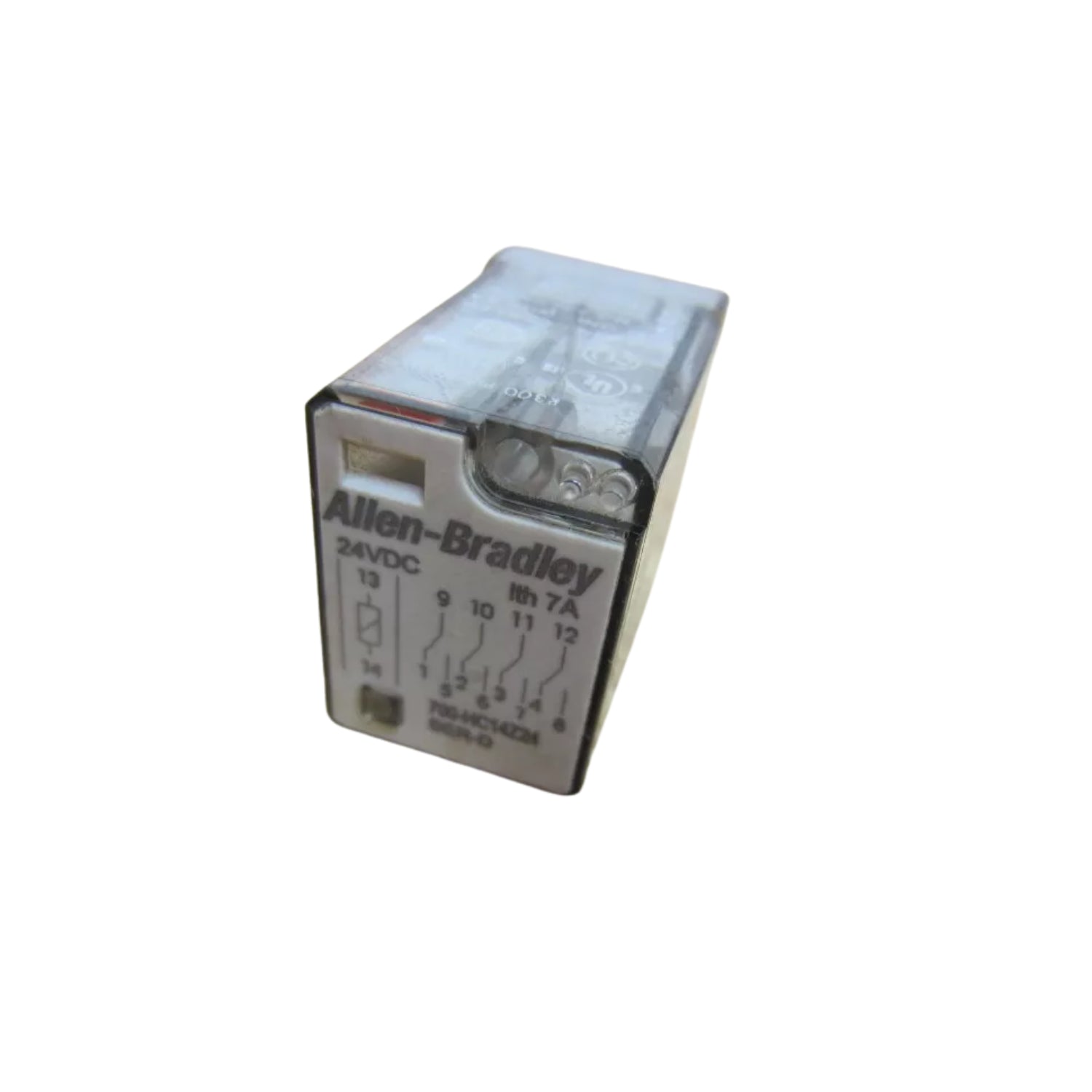

Allen-Bradley 700-HC14Z24

Allen-Bradley 700-HC14Z24 | 4PDT General Purpose Relay, 24V DC

Overview:

The Allen-Bradley 700-HC14Z24 is a high-performance general-purpose relay designed for low-energy applications. It features gold-plated contacts to ensure reliable operation in low-current environments, making it ideal for industrial control systems.

Key Features:

• 4PDT Contact Configuration: Provides four sets of double-throw contacts, enhancing switching capabilities.
• Gold-Plated Contacts: Ensures reliable performance at low currents (10V, 1mA) while maintaining a 10A max current rating.
• 24V DC Coil Voltage: Standard operating voltage for industrial control systems.
• Compact and Durable Design: Engineered for longevity and efficiency in automation and process control applications.
• Blade Terminal Connections: Allows for easy installation and secure wiring.

Technical Specifications:

• Model: 700-HC14Z24
• Coil Voltage: 24V DC
• Contact Rating: 10A max
• Low Energy Rating: 10V, 1mA
• Contact Configuration: 4PDT (Four Pole Double Throw)
• Connection Type: Blade Terminal
• Mounting Type: Socket Mount
• Enclosure Type: Open style for easy integration into control panels

Benefits:

• Versatility: Suitable for low-energy applications and high-current switching.
• Reliable Performance: Gold-plated contacts provide superior conductivity for low-voltage control circuits.
• Easy Integration: Designed to fit standard 700-HC relay sockets for quick installation and replacement.
• Long-Lasting Durability: Built to withstand demanding industrial environments.

Applications:

• Industrial Automation: Controls and interlocks for machinery.
• Process Control Systems: Reliable switching for automated processes.
• Low-Voltage Signal Processing: Suitable for delicate control circuits requiring low-energy switching.
• Building Management Systems: Controls for lighting, HVAC, and security applications.

Order Now:

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
