Allen-Bradley 5069-OW4I

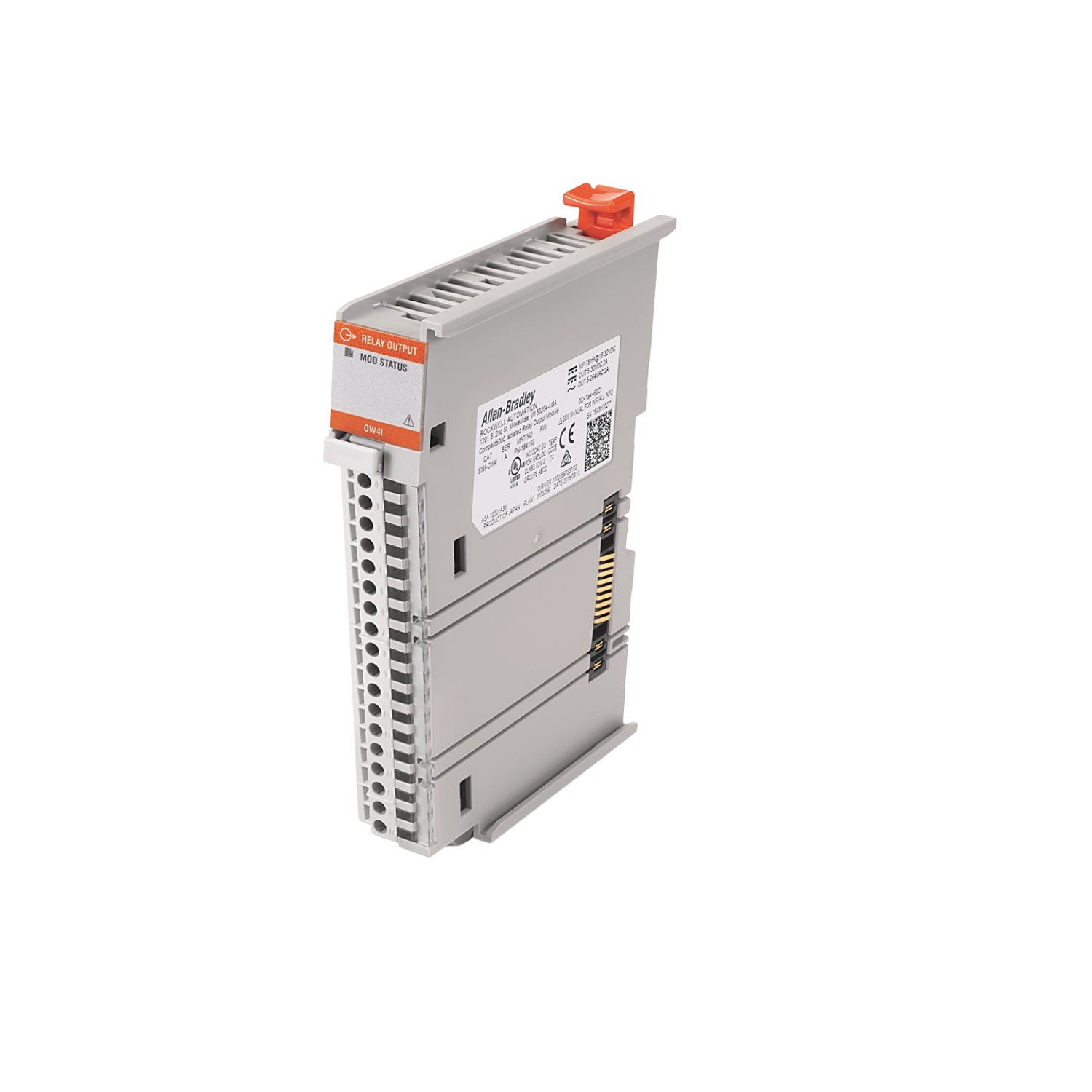

Allen-Bradley 5069-OW4I | Compact 5000 Isolated Relay Output Module

Overview:

The Allen-Bradley 5069-OW4I is a Compact 5000 I/O module featuring four individually isolated relay outputs. Designed for versatility, it supports a wide range of voltages, making it suitable for various industrial automation applications.

Key Features:

• Four Individually Isolated Relay Outputs: Ensures independent operation of each channel, enhancing system flexibility.
• Wide Voltage Support: Operates with 5…125V DC and 5…264V AC, accommodating diverse control requirements.
• Compact Design: With a 22mm width, it allows for high-density installation in control panels.
• High-Speed Backplane Communication: Facilitates rapid data exchange with a packet transfer rate of 4.4 µs.
• Enhanced Functionality: Includes features like simple counting, event handling, scheduled outputs, and time stamping for improved control capabilities.

Technical Specifications:

• Model: 5069-OW4I
• Output Channels: 4 (Form A, normally open)
• Voltage Range: 5…125V DC; 5…264V AC
• Current Rating: 2 A resistive per channel
• Power Dissipation: 2.3 W maximum
• Thermal Dissipation: 7.85 BTU/hr maximum
• Isolation Voltage: 250V (continuous), Basic Insulation Type
• Module Dimensions: Width: 22mm; Height: 5.207 cm; Length: 18.415 cm
• Weight: 0.243 kg

Benefits:

• Versatility: Supports both AC and DC loads, making it adaptable to various applications.
• Space Efficiency: Slim profile conserves panel space, allowing for more components within the same enclosure.
• Reliability: Robust design ensures dependable performance in industrial environments.
• Ease of Integration: Seamlessly integrates with CompactLogix™ 5380, Compact GuardLogix® 5380, and CompactLogix 5480 controller systems.

Applications:

• Industrial Automation: Controlling machinery and processes with precision.
• Manufacturing Systems: Managing operations in assembly lines and production equipment.
• Building Management: Operating HVAC systems, lighting controls, and security systems.
• Energy Management: Supervising and controlling power distribution and renewable energy systems.

Order Now:

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
