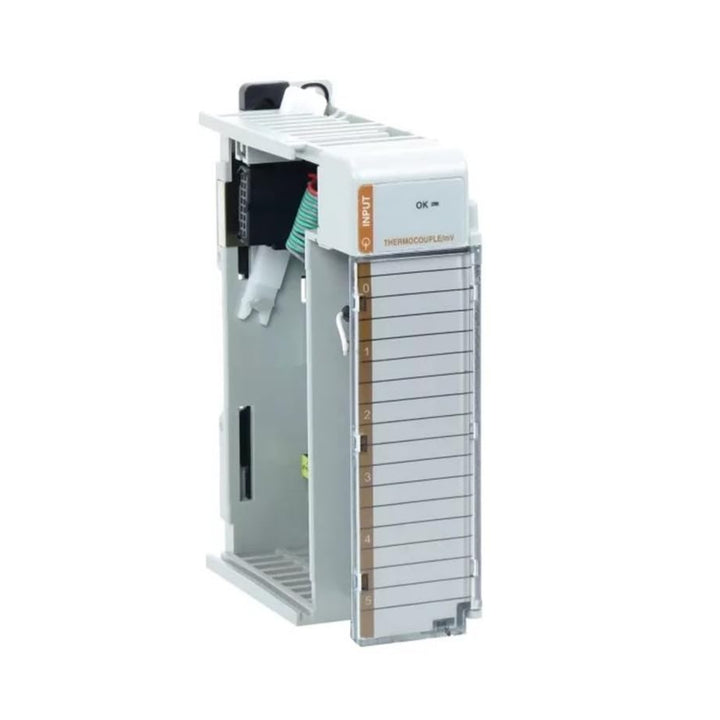

Allen-Bradley 1769-IT6 | 6-Channel Thermocouple/mV Input Module

Allen-Bradley 1769-IT6 | 6-Channel Thermocouple & Millivolt Input Module – Compact I/O Series

Overview

The Allen-Bradley 1769-IT6 is a 6-channel thermocouple/millivolt input module for CompactLogix and MicroLogix 1500 systems, designed to support a wide range of thermocouple types and precision mV measurements. It features two built-in cold junction compensation (CJC) sensors, ensuring highly accurate temperature readings.

This module supports thermocouple types J, K, T, E, R, S, B, N, and C, as well as ±50 mV and ±100 mV input ranges, making it suitable for industrial process monitoring, temperature control, and data acquisition systems.

Key Features

• 6 Differential Input Channels – For thermocouples or mV signals

• Wide Thermocouple Support – Types J, K, T, E, R, S, B, N, C

• mV Input Ranges: ±50 mV and ±100 mV

• 2 Integrated CJC Sensors – For accurate temperature compensation

• High Accuracy and Resolution – Up to 16-bit

• Advanced Diagnostics – Open circuit and over/under range detection

• DIN Rail or Panel Mounting – CompactLogix-compatible

Technical Specifications

• Catalog Number: 1769-IT6

• Series: Compact I/O

• Input Channels: 6

• Supported Thermocouple Types: J, K, T, E, R, S, B, N, C

• mV Ranges: ±50 mV, ±100 mV

• Cold Junction Compensation: 2 integrated CJC sensors

• Resolution: 16-bit

• Diagnostics: Open circuit, over/under range

• Mounting: DIN rail or panel

• Compatible Platforms: CompactLogix, MicroLogix 1500

• Operating Temperature: 0°C to +60°C

• Weight: Approx. 400 g

Applications

• Process Control – Temperature monitoring with multiple thermocouple types

• Industrial Ovens, Furnaces & Kilns – High-accuracy thermal inputs

• OEM Machines – Where mV or temperature signals are critical

Why Choose the 1769-IT6?

• Versatile sensor compatibility in a single module

• Integrated cold junction sensors for reliable readings

• Ideal for high-resolution, multi-signal temperature acquisition

Order Now

Available for fast international shipping. Enhance your CompactLogix system with accurate temperature and mV input capabilities.
