Allen-Bradley 802T-HP

Product Overview

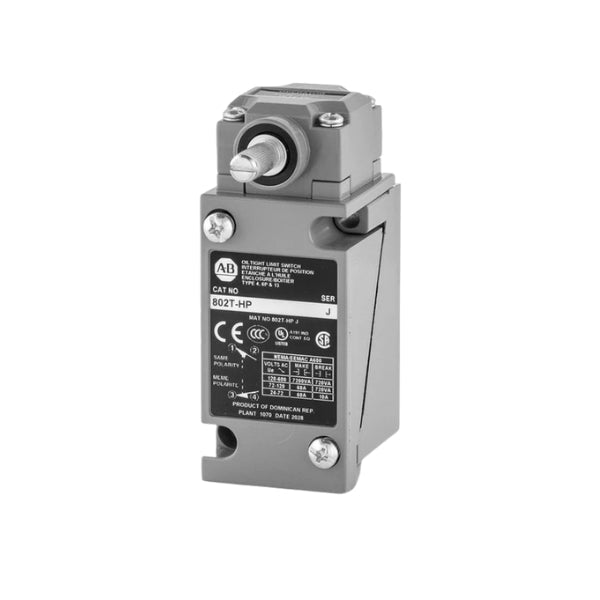

The Allen-Bradley 802T-HP Limit Switch is a rugged, reliable solution for controlling machinery and automation systems. Built with NEMA Type 4 and 13 oiltight construction, it is designed to withstand tough industrial environments, offering exceptional durability and resistance to oil and contaminants. The plug-in lever type design with spring return ensures smooth and precise operation, while its high operating torque and CW/CCW operation make it ideal for applications requiring reliable switching and control.

Key Features

• Oiltight Construction:

  • NEMA Type 4 and 13 rating provides superior protection against oil, dust, and water, ensuring longevity in harsh conditions.

• Lever Type with Spring Return:

  • The lever type switch with spring return delivers dependable mechanical performance for applications requiring precise movement and reliable operation.

• High Operating Torque:

  • Designed for high torque applications, the switch can handle heavy mechanical loads while maintaining reliability.

• Plug-In Design:

  • The plug-in construction allows for easy installation and maintenance, reducing downtime and simplifying system integration.

• CW and CCW Operation:

  • The switch supports clockwise (CW) and counterclockwise (CCW) operation, offering versatility for a range of applications.

• 2-Circuit Operation:

  • Supports 2-circuit switching for enhanced control and monitoring of multiple signals in a single unit.

Technical Specifications

Applications

• Automation Systems: The 802T-HP Limit Switch is ideal for use in automated control systems, providing precise control of machinery and processes.

• Conveyor Systems: Perfect for conveyor applications where precise position sensing is required to manage flow and operation.

• Industrial Equipment: It’s well-suited for industrial machines and heavy-duty equipment requiring high-torque switches to manage mechanical movement effectively.

• Oil & Gas, Manufacturing, and Machine Tools: With its oiltight construction, the 802T-HP excels in environments exposed to oil, dust, and water typical in the oil & gas industry, manufacturing, and machine tool applications.

Benefits

• Durability: The oiltight construction ensures the switch operates reliably in harsh industrial environments, offering protection against contaminants like oil, dust, and moisture.

• Easy Installation and Maintenance: The plug-in design simplifies installation and replacement, reducing the time and effort required for maintenance.

• Versatile Operation: With CW and CCW operation, the switch adapts to a variety of mechanical and control systems, providing flexibility across multiple applications.

• High Performance: Capable of handling high operating torque, making it ideal for heavy-duty industrial use and challenging mechanical applications.

Why Choose the Allen-Bradley 802T-HP Limit Switch?

The Allen-Bradley 802T-HP Limit Switch combines rugged design with advanced functionality, making it an ideal choice for industrial applications that demand precision, durability, and reliability. With its NEMA Type 4 and 13 oiltight construction, plug-in lever design, and high operating torque, this switch ensures seamless performance in harsh environments.

Contact us today to learn more about how the Allen-Bradley 802T-HP Limit Switch can enhance the control and performance of your industrial systems.

Return to the Allen-Bradley 802T Limit Switches collection for more models, actuator styles, and configurations.
