Allen‑Bradley 1326AB‑B430E‑M2L

Allen‑Bradley 1326AB‑B430E‑M2L

Overview

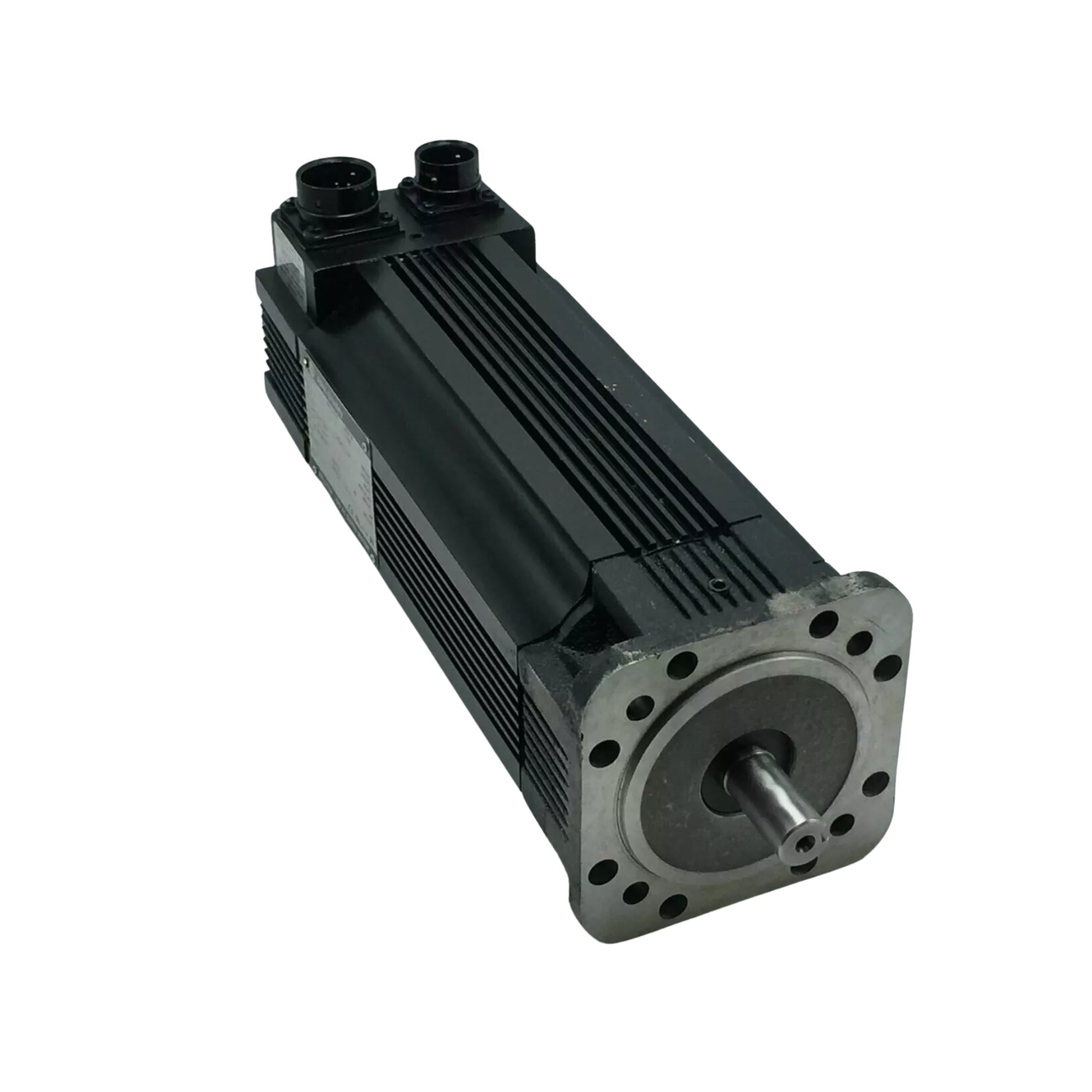

The Allen‑Bradley 1326AB‑B430E‑M2L is a high-performance Torque Plus series AC servo motor equipped with both resolver and low‑speed incremental encoder feedback. Rated at 460 V, delivering 6.6 Nm continuous torque at up to 3000 RPM, this motor is engineered for precise control, smooth integration, and flexible feedback options in industrial motion and automation setups.

Key Features

• 3‑phase AC input, 460 V

• Continuous torque: 6.6 Nm

• Peak torque: approximately 19.7 Nm

• Rated speed: 3000 RPM

• Dual feedback: resolver + low‑speed encoder

• IP65-rated aluminum enclosure

• IEC metric flange with keyway

• UL-class insulation system

• Compatible with Allen‑Bradley 1394, Kinetix, Ultra3000 drives

Technical Specifications

• Model: 1326AB‑B430E‑M2L

• Voltage Rating: 460 V AC, 3‑phase

• Continuous Torque: 6.6 Nm

• Peak Torque: Approximately 19.7 Nm

• Rated Speed: 3000 RPM

• Feedback Type: Resolver + Low‑Speed Encoder

• Power Output: Approximately 1.4 kW

• Enclosure Protection: IP65

• Frame Size: 108 mm diameter

• Mounting: IEC metric flange with keyway

• Housing Material: Aluminum

• Insulation Class: UL‑recognized

• Motor Weight: Approximately 15.0 kg (encoder installed)

Applications

• CNC motion axes

• Precision robotics

• Packaging and assembly systems

• Industrial automation requiring dual feedback

• Allen‑Bradley drive retrofit and upgrade

Why Choose the 1326AB‑B430E‑M2L

• Dual-feedback ensures flexibility and accuracy

• High torque in a compact, rugged design

• IP65 protection provides dust and splash resistance

• Compatible with both legacy and current Allen‑Bradley drives

• Resolver and encoder combination supports advanced motion control

Order Now

The Allen‑Bradley 1326AB‑B430E‑M2L AC servo motor is available and ready to ship worldwide—ideal for systems needing precise and flexible feedback control.

Looking for more options?

Explore our complete selection of Allen-Bradley 1326AB Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
