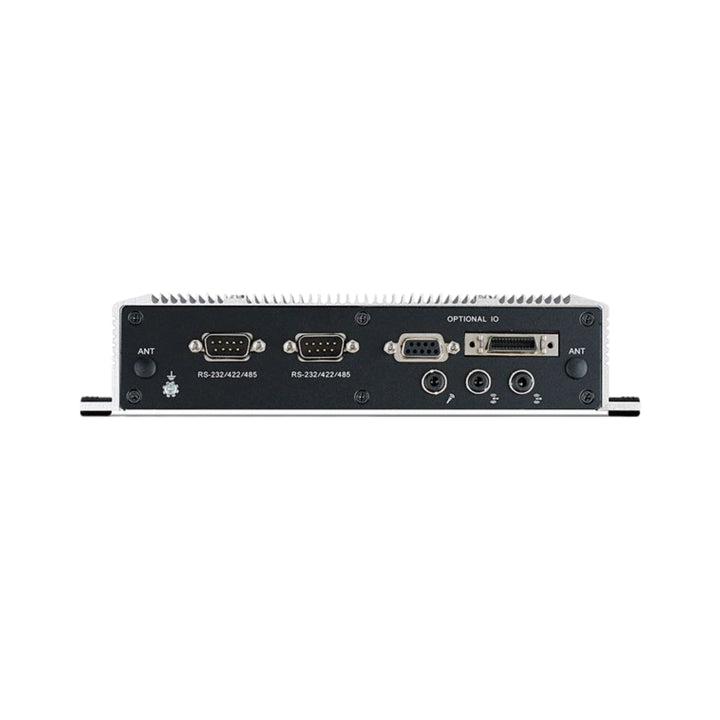

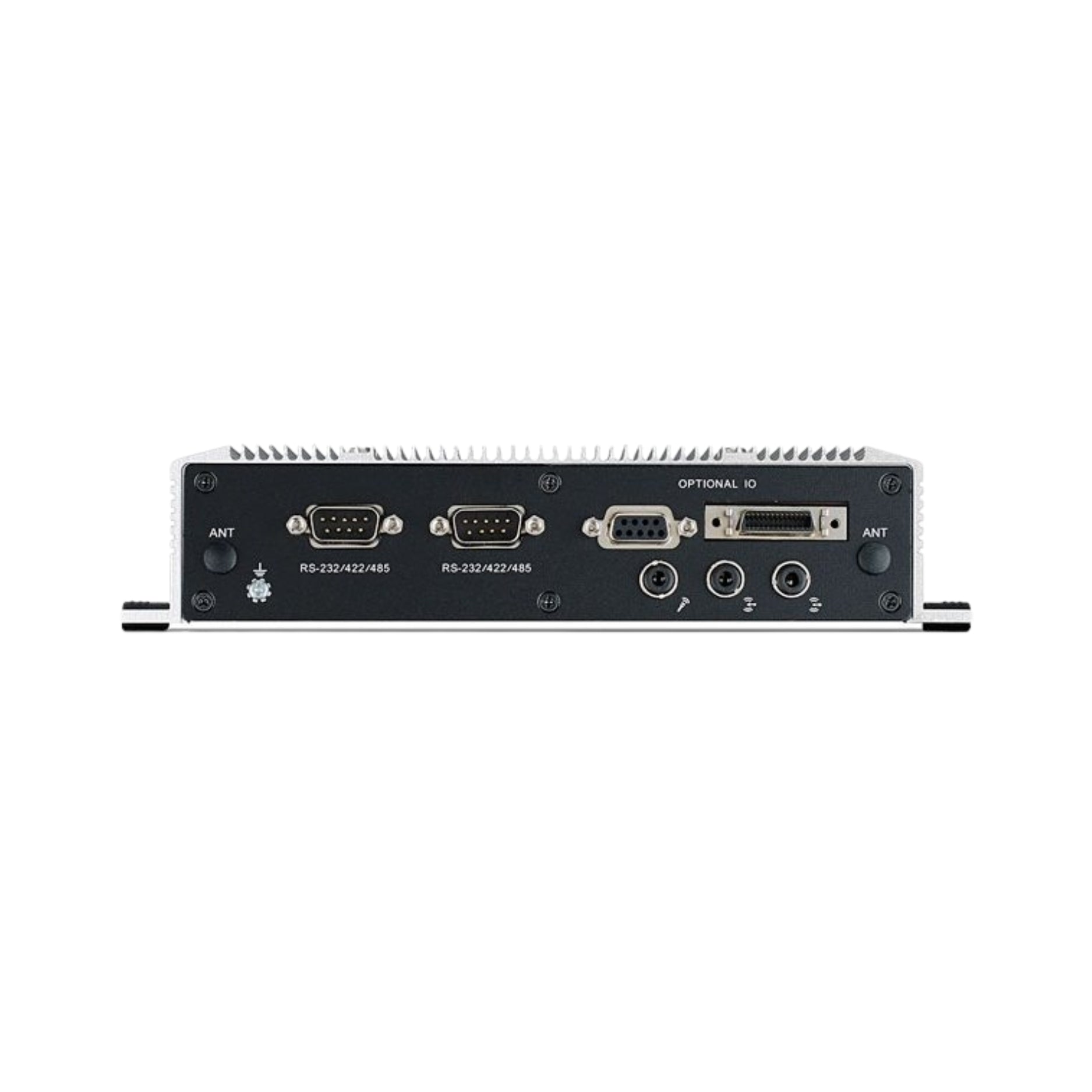

Advantech ARK-1550-S9A1E

Advantech ARK-1550-S9A1E

Overview

The Advantech ARK-1550-S9A1E is a fanless embedded box PC designed for industrial automation and control applications. Powered by an Intel Core i5-4300U processor, it offers reliable performance in harsh environments with a wide operating temperature range and multiple I/O options.

Key Features

• Processor: Intel Core i5-4300U dual-core 1.9 GHz (up to 2.9 GHz with Turbo Boost)

• Memory: Supports up to 8 GB DDR3L SO-DIMM

• Storage: Hot-swappable 2.5" SATA HDD bay and mSATA slot

• Graphics: Intel HD Graphics 4400, supporting triple independent displays via VGA, HDMI, and LVDS (LVDS optional)

• Networking: 2 x Gigabit Ethernet (Intel)

• Expansion: 2 x Mini PCIe slots (full-size and half-size)

• Audio: Line-out, line-in, and microphone input

• Mounting: Optional VESA or DIN Rail mounting kits

• Operating Temperature: –20°C to +55°C

• Certifications: CE, UL, BSMI, CB, CCC

Technical Specifications

• Dimensions: 223 mm x 133 mm x 46.6 mm

• Weight: Approximately 2 kg

• Power Supply: 12–48 VDC, lockable DC jack design

• I/O Ports:

  • 2 x USB 2.0

  • 2 x USB 3.0

  • 3 x RS-232/422/485 serial ports

  • 2 x Gigabit Ethernet ports

  • 1 x VGA

  • 1 x HDMI

  • Audio line-out, line-in, and microphone input

• Expansion Slots:

  • 1 x full-size Mini PCIe

  • 1 x half-size Mini PCIe

• Cooling: Fanless design with heat sink

Applications

• Industrial automation systems

• Machine vision and control

• Data acquisition and monitoring

• SCADA and HMI applications

• Edge computing in manufacturing environments

Why Choose Advantech ARK-1550-S9A1E?

• Fanless and compact design: Ensures silent operation and space-saving installation

• Wide operating temperature range: Suitable for deployment in various industrial environments

• Multiple display support: Enables versatile HMI configurations

• Robust I/O options: Provides extensive connectivity for diverse applications

• Trusted Advantech quality: Backed by a global leader in industrial computing solutions

Order Now

Enhance your industrial automation system with the Advantech ARK-1550-S9A1E, offering reliable performance, versatile connectivity, and rugged design for demanding applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
