Advantech ARK-1220L-S6A2

Advantech ARK-1220L-S6A2

Overview

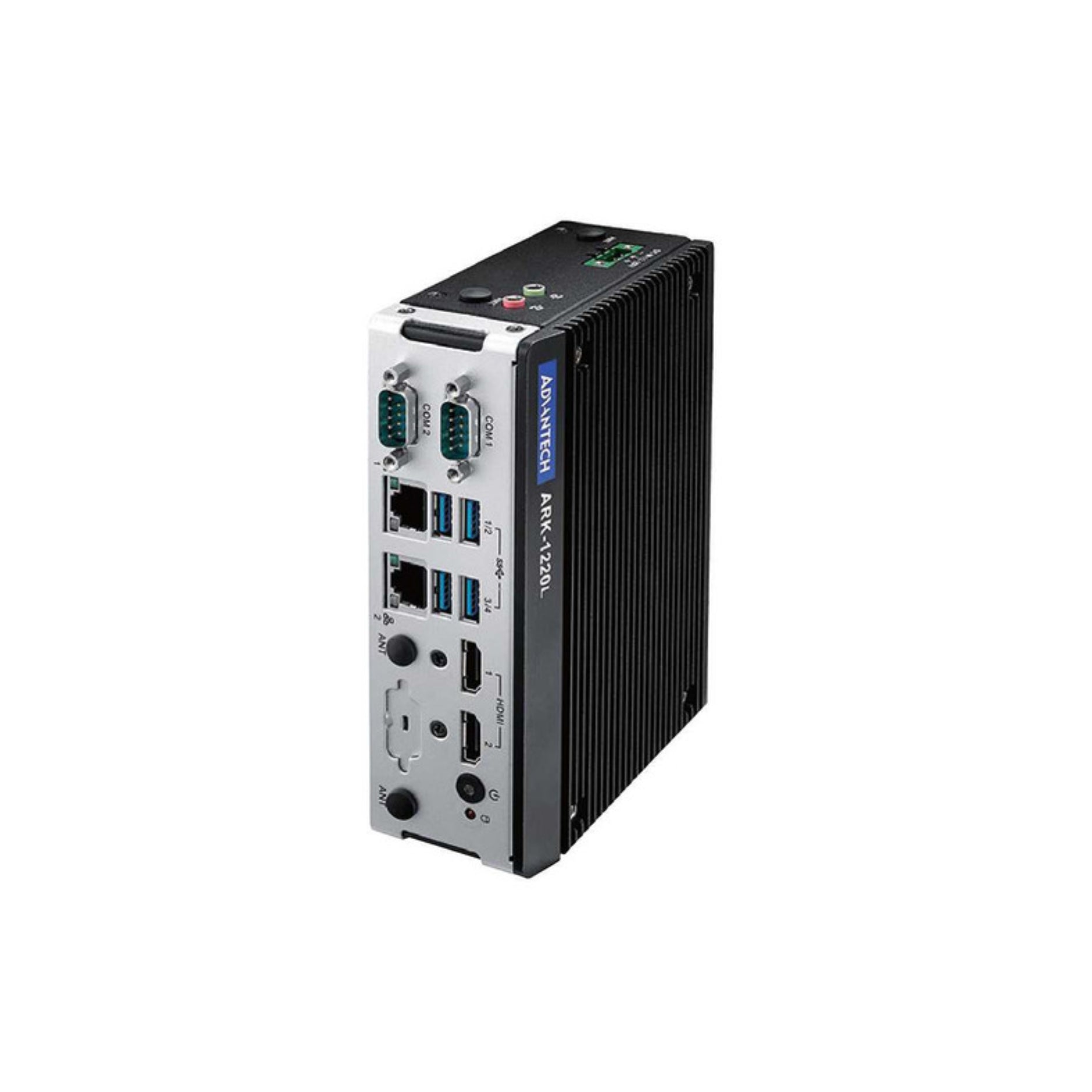

The Advantech ARK-1220L-S6A2 is a compact fanless embedded box PC powered by an Intel Atom processor, engineered for reliable performance in industrial automation and IoT applications. Its rugged design, flexible I/O interfaces, and wide temperature tolerance make it ideal for harsh environments.

Key Features

• Intel Atom E3826 1.46 GHz dual-core processor

• Compact and fanless design for silent operation

• Wide operating temperature range: –30 °C to +70 °C

• Rich I/O: 2 x LAN, 4 x USB, 2 x COM, HDMI, VGA

• Supports mSATA and Mini PCIe expansion

• 12–24 VDC wide-range power input

• Wall, DIN-rail, and VESA mounting options

• Supports Windows and Linux operating systems

Technical Specifications

• Advantech Code: ARK-1220L-S6A2

• Processor: Intel Atom E3826 1.46 GHz dual-core

• Memory: Up to 8 GB DDR3L SDRAM

• Storage: mSATA, 1 x CFast slot

• I/O Ports: 2 x LAN, 4 x USB, 2 x COM, HDMI, VGA

• Expansion: 1 x Mini PCIe slot

• Power Input: 12–24 VDC

• Operating Temperature: –30 °C to +70 °C

• Mounting: Wall, DIN-rail, VESA

• Certifications: CE, FCC, UL

Applications

• Industrial automation control

• IoT and edge computing

• Machine vision systems

• Digital signage and kiosks

• Data acquisition and monitoring

Why Choose Advantech ARK-1220L-S6A2?

• Compact and rugged fanless architecture

• Wide temperature operation for harsh environments

• Flexible mounting and expansion options

• Energy-efficient Intel Atom processing

• Backed by Advantech’s proven industrial reliability

Order Now

Empower your automation and IoT systems with the Advantech ARK-1220L-S6A2, combining reliability, performance, and compact industrial design.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
