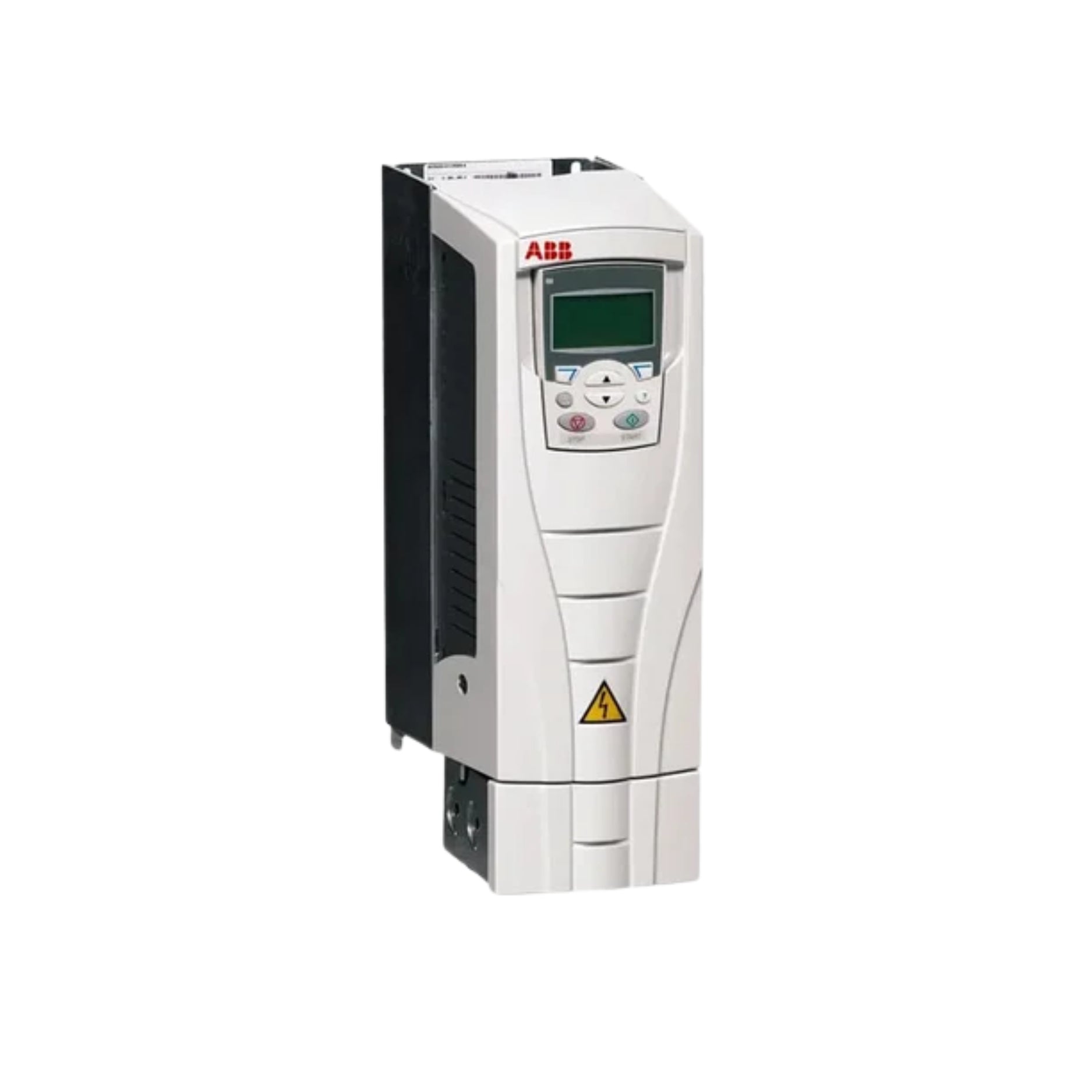

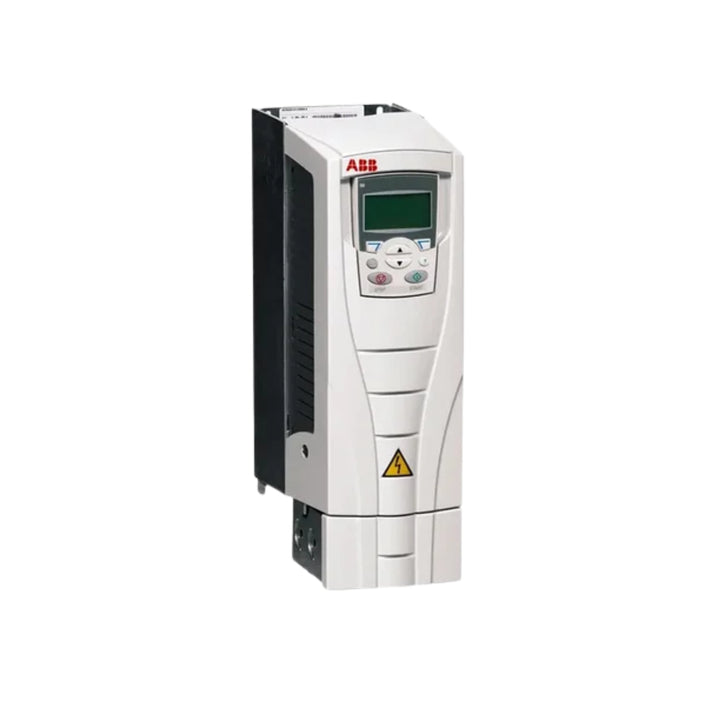

ABB ACS550-01-031A-4 | 3AUA0000002418-D | 15 kW Variable Frequency Drive, IP21

ABB ACS550-01-031A-4 | 15 kW Variable Frequency Drive, IP21

Global Commercial Alias: ACS550-01-031A-4
Product ID: 3AUA0000002418-D
ABB Type Designation: ACS550-01-031A-4
Catalog Description: General purpose wall-mounted AC drive, 15 kW, 31 A, 3-phase, 380–480 V, IP21 enclosure

Overview

The ABB ACS550-01-031A-4 is a 15 kW (20 HP) variable frequency drive from the ACS550 series, delivering robust and energy-efficient control for AC motors in diverse industrial settings. With a 3-phase 380–480 V supply and IP21 enclosure, it's ideal for wall-mounted installations in standard environments.

Key Features

• Motor Power: 15 kW (20 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 31 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Integrated keypad with assistant control panel

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-01-031A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 520 mm x 203 mm x 229 mm

• Weight: Approx. 9.7 kg

• Certifications: CE, UL, cUL

Applications

• Pumps

• Fans

• Conveyors

• Compressors

• HVAC systems

• General industrial machinery

Product Description

The ACS550-01-031A-4 is engineered for flexibility, offering essential features as standard to streamline installation and setup. With integrated safety functions and diagnostics, it provides dependable performance across a wide range of industrial motor control applications.

Why Choose ABB ACS550-01-031A-4?

• Efficient and reliable motor control

• Built-in safety and EMC filtering

• Simple setup with assistant keypad

• Ideal for a wide range of industrial uses

Order Now

Available for prompt global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
