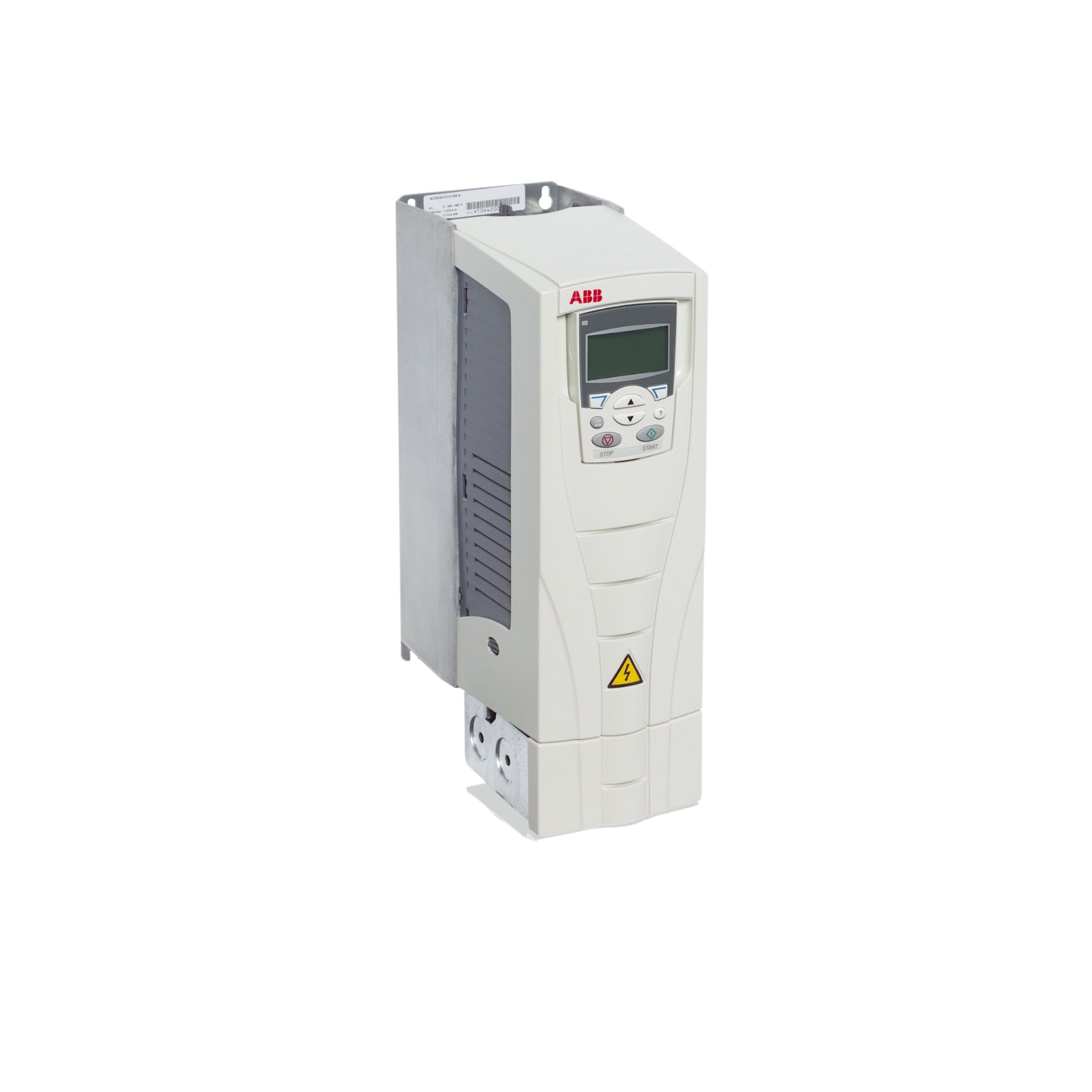

ABB ACS550-01-012A-4 | 3AUA0000002420-D | 5.5 kW Variable Frequency Drive, IP21

ABB ACS550-01-012A-4 | 5.5 kW Variable Frequency Drive, IP21

Global Commercial Alias: ACS550-01-012A-4
Product ID: 3AUA0000002420-D
ABB Type Designation: ACS550-01-012A-4
Catalog Description: General purpose wall-mounted AC drive, 5.5 kW, 12 A, 3-phase, 380–480 V, IP21 enclosure

Overview

The ABB ACS550-01-012A-4 is a 5.5 kW (7.5 HP) variable frequency drive from the ACS550 series, designed for reliable and efficient control of AC motors in a wide range of industrial applications. It operates on a 3-phase 380–480 V supply and comes in a compact IP21 wall-mounted enclosure.

Key Features

• Motor Power: 5.5 kW (7.5 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 12 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Integrated keypad with assistant control panel

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-01-012A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 390 mm x 125 mm x 195 mm

• Weight: Approx. 4.0 kg

• Certifications: CE, UL, cUL

Applications

• Pumps

• Fans

• Conveyors

• Compressors

• HVAC systems

• General machinery

Product Description

The ACS550-01-012A-4 is engineered for flexible and straightforward motor control. It includes built-in features like EMC filtering and STO safety, and offers intuitive setup through its keypad interface. Its compact wall-mounted design makes it ideal for installation in tight spaces across industrial settings.

Why Choose ABB ACS550-01-012A-4?

• Dependable and efficient motor control

• Quick installation and easy commissioning

• Integrated safety and EMC features

• Designed for diverse industrial uses
