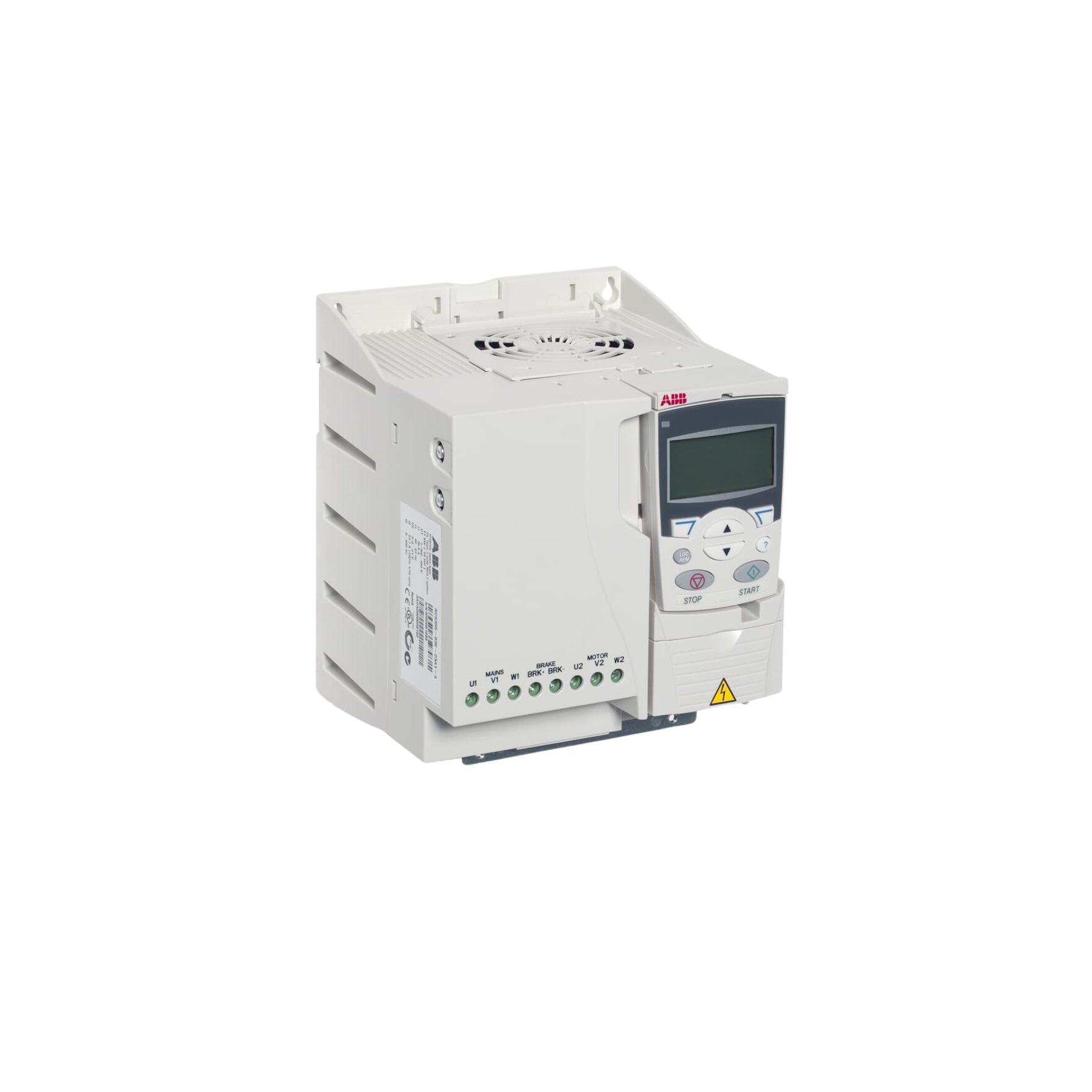

ABB ACS355-03E-12A5-4 | 3ABD0000058250 | 7.5 HP VFD, 480 V, 3-Phase, IP20

ABB ACS355-03E-12A5-4 | 7.5 HP VFD, 480 V, 3-Phase, IP20

Global Commercial Alias: ACS355-03E-12A5-4
Product ID: 3ABD0000058250
ABB Type Designation: ACS355-03E-12A5-4
Catalog Description: Variable Frequency Drive, 7.5 HP, 3-phase 480 V input, IP20 enclosure

Overview

The ABB ACS355-03E-12A5-4 is an advanced variable frequency drive that is ideal for controlling motors in industrial applications. It offers superior performance in motor control, ensuring energy savings and reliable operation in applications such as conveyors, fans, and pumps.

Key Features

• Power Rating: 7.5 HP (5.5 kW)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 12.5 A

• Control Modes: Scalar (V/Hz), Sensorless Vector

• Integrated I/O: Digital and analog inputs/outputs

• Built-in EMC Filter: Yes

• User Interface: Keypad optional

• Enclosure: IP20

• Mounting: DIN rail or wall-mount

Technical Specifications

• Frequency Range: 0–500 Hz

• Overload Capacity: 150% for 60 seconds

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 195 mm x 130 mm x 195 mm

• Weight: Approx. 2.8 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Industrial pumps and fans

• Conveyor systems

• Light machinery

• Process control and automation

Product Description

The ABB ACS355-03E-12A5-4 VFD is designed to offer reliable and efficient motor control in a wide range of industrial applications. It provides energy-efficient performance and robust features for diverse environments.

Why Choose ABB ACS355-03E-12A5-4?

• Energy-efficient with superior motor control

• Easy installation with flexible mounting options

• Ideal for controlling industrial pumps, fans, and conveyors

• Reliable performance in harsh industrial environments

Order Now

Available for worldwide delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
