Overview:

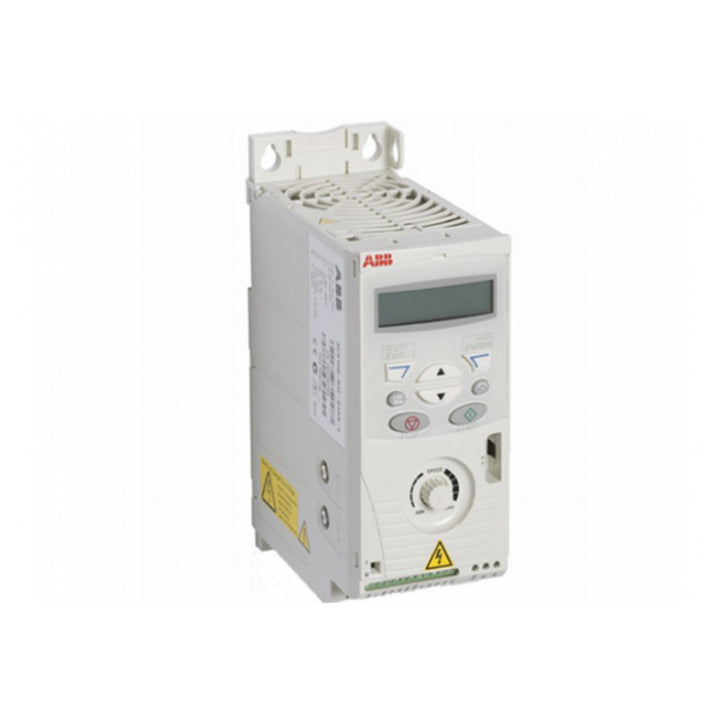

The ABB ACS150-03E-05A6-4 is a robust variable frequency drive (VFD) engineered to provide precise motor control in various industrial applications. With a power rating of 2.2 kW and a current rating of 5.6 A, this drive is suitable for three-phase motors operating at 400 V AC. It features an integrated user panel with an LCD display and a built-in potentiometer for intuitive operation. Pre-defined I/O configuration macros simplify setup and commissioning, making it an ideal choice for applications such as mixers, conveyors, fans, and pumps.

Key Features:

• Integrated User Panel: Equipped with an LCD display and built-in potentiometer for easy operation and monitoring.
• Pre-defined I/O Macros: Includes various configuration macros to simplify setup and commissioning.
• Compact Design: Space-saving form factor allows for easy integration into control panels.
• Built-in Brake Chopper: Enhances braking performance for applications requiring rapid deceleration.
• FlashDrop Support: Optional tool enables quick and easy parameter configuration without powering the drive.
  loja.br.abb.com

Technical Specifications:

• Product Type: Variable Frequency Drive
• Model: ACS150-03E-05A6-4
• Power Rating: 2.2 kW
• Current Rating: 5.6 A
• Input Voltage: Three-phase 400 V AC
• Output Voltage: 0 to 400 V AC
• Frequency Range: 0 to 500 Hz
• Control Method: Scalar (V/Hz) Control
• Protection Class: IP20
• Dimensions (H x W x D): 160 mm x 70 mm x 145 mm
• Weight: 1.1 kg

Applications:

• Mixers: Provides precise speed control for consistent mixing processes.
• Conveyors: Ensures smooth acceleration and deceleration, reducing mechanical stress.
• Fans: Offers energy-efficient speed regulation for ventilation systems.
• Pumps: Enables accurate flow control and reduces water hammer effects.

The ABB ACS150-03E-05A6-4 variable frequency drive delivers reliable performance and user-friendly features, making it a valuable addition to various industrial motor control applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
