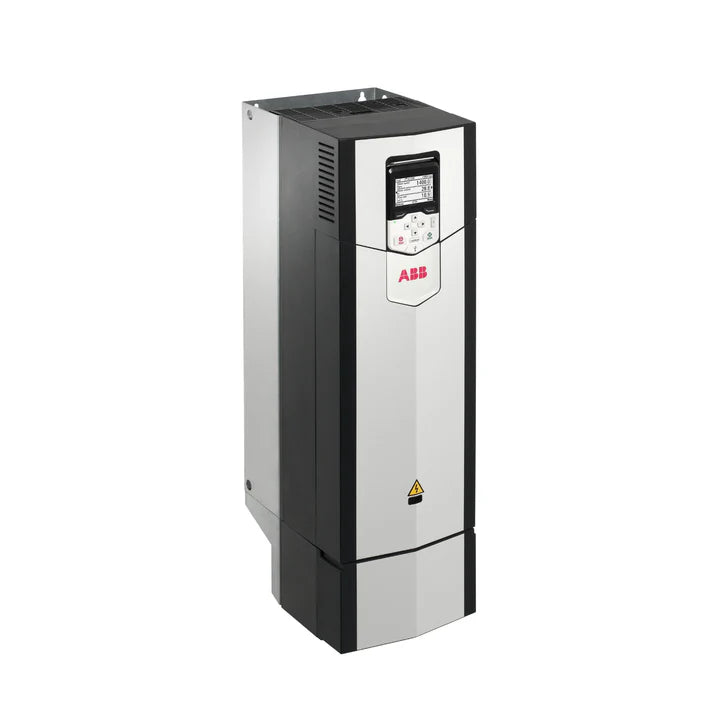

ABB ACS880-01-246A-3

ABB ACS880-01-246A-3

Overview

The ABB ACS880-01-246A-3 is a low-voltage wall-mounted industrial AC drive engineered for 380–415 V, 3-phase systems, with a rated output of 132 kW and 246 A. Designed on the R8 frame size, this high-power drive ensures efficient motor control for demanding industries, including oil and gas, mining, metals, cement, marine, water and wastewater, pulp and paper, and heavy manufacturing.

With IP21 / NEMA Type 1 protection, it supports both normal and heavy-duty applications and comes equipped with a built-in choke for harmonic filtering, ensuring optimized energy efficiency and reduced distortion.

Key Features

• Power Rating: 132 kW (Normal Duty) / 110 kW (Heavy Duty)

• Output Current: 246 A (ND) / 234 A (Light OL) / 206 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Protection Class: IP21, NEMA Type 1

• Frame Size: R8

• Altitude Rating: Up to 4000 m

• Noise Level: 68 dB(A)

• Efficiency Class: IE2

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000108031

• Global Alias: ACS880-01-246A-3

• EAN: 6438177554967

• HS Code: 850440 (Static Converters)

• Weight: 68.0 kg (149.91 lb)

• Dimensions (W × H × D): 300 × 965 × 386 mm

• Packaging: 1145 × 485 × 654 mm (1 case)

• I/O: 2 analog in, 2 analog out, 6 digital in, 2 digital out

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 132 kW (ND), 110 kW (HD)

• Apparent Power Output: 170 kVA

• Power Consumption: 3026 W

• Standby Losses: 52 W

Applications

• Pumps, compressors, and fans in large-scale industrial plants

• Heavy conveyors, mixers, and centrifuges

• Marine propulsion and auxiliary systems

• Cranes, hoists, and elevators

• Process automation in mining, metals, and cement industries

Why Choose the ABB ACS880-01-246A-3

• High-capacity 132 kW motor control for large installations

• Rugged R8 frame for reliable operation in tough environments

• Built-in choke for harmonic reduction and energy efficiency

• Wide compatibility with industrial fieldbus protocols

• Trusted ABB performance, ready for global deployment

Return to the ABB ACS880 Industrial Drives collection.

Explore our ABB Industrial Drives main category.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
