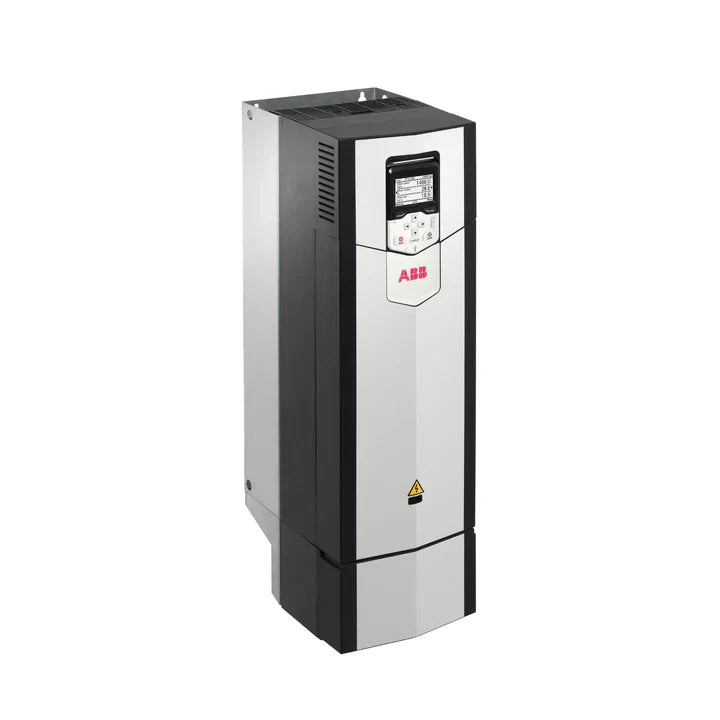

ABB ACS880-01-210A-7

ABB ACS880-01-210A-7 – 3AUA0000115110

Overview

The ABB ACS880-01-210A-7 is a high-performance low-voltage AC wall-mounted single drive designed for heavy-duty industrial use. With a power rating of 200 kW (250 HP) and 210 A at 690 V, this R9 frame drive offers robust performance and versatility. Engineered for global industries such as oil & gas, mining, metals, cement, pulp & paper, marine, water treatment, and power generation, it provides reliable control for demanding motor applications.

The ACS880-01-210A-7 includes a built-in choke for harmonic filtering and is expandable with EMC filters, brake choppers, I/O extension modules, and advanced safety options. It combines compact design with installation flexibility, supporting wall or cabinet mounting.

Key Features

• Motor Power: 200 kW (250 HP)

• Rated Current: 210 A

• Input Voltage: 525–690 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R9

• Protection Class: IP21 (standard), IP55 optional

• Enclosure: NEMA Type 1

• Efficiency Level: IE2

• Built-in choke for harmonic filtering

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

• Expansion: brake chopper, EMC filter, safety functions, I/O extensions

Technical Specifications

• Global Commercial Alias: ACS880-01-210A-7

• Product ID: 3AUA0000115110

• EAN: 6438177388654

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 200 kW

  • Heavy Duty: 160 kW

• Output Current:

  • Normal Duty: 210 A

  • Heavy Duty: 174 A

• Apparent Power Output: 251 kVA

• Power Consumption: 2903 W

• Standby Loss: 145 W

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 70 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 95.0 kg (209.4 lb)

• Height: 955 mm (37.6 in)

• Width: 380 mm (15.0 in)

• Depth: 413 mm (16.3 in)

Applications

• Pumps, fans, and compressors

• Cranes, conveyors, and mixers

• Mining, cement, and metals industries

• Marine and water treatment operations

• Power generation and pulp & paper processing

Why Choose the ABB ACS880-01-210A-7

• High-capacity R9 frame for reliable performance

• Flexible installation: wall-mounted or cabinet

• Integrated harmonic filtering with expansion options

• Robust safety and communication support

• Optimized for demanding industrial environments

Order Now

The ABB ACS880-01-210A-7 is available and ships worldwide.
