Overview

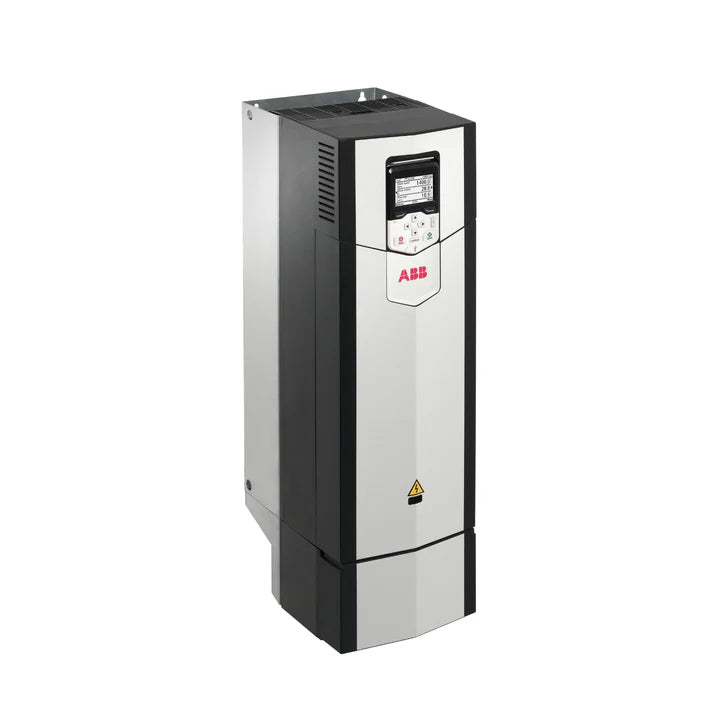

The ABB ACS880-01-206A-3 is a low-voltage wall-mounted AC drive designed for 380–415 V, 3-phase systems, with a rated power of 110 kW and output current of 206 A. Built on the R7 frame, this drive provides reliable motor control in heavy-duty and continuous industrial applications, including oil and gas, mining, cement, pulp and paper, water and wastewater, marine, food and beverage, and automotive industries.

With IP21 / NEMA Type 1 protection, the ACS880-01-206A-3 is suited for diverse installation environments. It features a built-in choke for harmonic filtering, supports a wide range of fieldbus communication protocols, and delivers robust performance for demanding automation systems.

Key Features

• Power Rating: 110 kW (Normal Duty) / 90 kW (Heavy Duty)

• Output Current: 206 A (ND) / 196 A (Light OL) / 169 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Protection Class: IP21, NEMA Type 1

• Frame Size: R7

• Altitude Rating: Up to 4000 m

• Noise Level: 67 dB(A)

• Efficiency Class: IE2

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000108028

• Global Alias: ACS880-01-206A-3

• EAN: 6438177554882

• HS Code: 850440 (Static Converters)

• Weight: 53.0 kg (116.85 lb)

• Dimensions (W × H × D): 284 × 880 × 365 mm

• Packaging: 992 × 400 × 598 mm (1 case)

• I/O: 2 analog in, 2 analog out, 6 digital in, 2 digital out

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 110 kW (ND), 90 kW (HD)

• Apparent Power Output: 143 kVA

• Power Consumption: 2816 W

• Standby Losses: 42 W

Applications

• Large-scale pumps, fans, and compressors

• Heavy-duty conveyors, hoists, and cranes

• Industrial mixers, centrifuges, and test benches

• Extruders, winders, and processing machinery

• Critical marine, mining, and energy applications

Why Choose the ABB ACS880-01-206A-3

• High-power 110 kW motor control for demanding applications

• Rugged R7 frame wall-mounted design ensures reliability

• Built-in choke for harmonic reduction and efficiency

• Full fieldbus protocol support for flexible integration

• Proven ABB durability and worldwide availability
