Overview

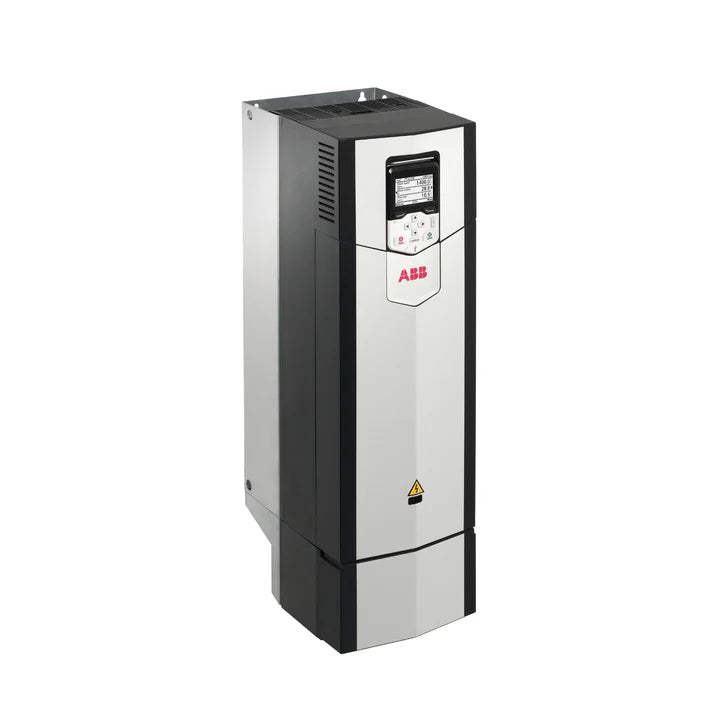

The ABB ACS880-01-169A-3 is a low-voltage wall-mounted industrial AC drive built for 380–415 V, 3-phase systems, delivering 90 kW rated power and 169 A output current. With a rugged R7 frame and IP21 / NEMA Type 1 enclosure, this drive is ideal for high-power continuous-duty applications in industries such as oil and gas, mining, metals, pulp and paper, marine, cement, automotive, food and beverage, and water/wastewater treatment.

Its compact yet powerful design ensures easy installation and commissioning, while the built-in choke reduces harmonics for energy efficiency. With wide fieldbus compatibility, the ACS880-01-169A-3 integrates seamlessly into advanced automation systems, making it a trusted choice for demanding operations.

Key Features

• Power Rating: 90 kW (Normal Duty) / 75 kW (Heavy Duty)

• Output Current: 169 A (ND) / 161 A (Light OL) / 145 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Protection Class: IP21, NEMA Type 1

• Frame Size: R7

• Altitude Rating: Up to 4000 m

• Noise Level: 67 dB(A)

• Efficiency Class: IE2

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000108027

• Global Alias: ACS880-01-169A-3

• EAN: 6438177554769

• HS Code: 850440 (Static Converters)

• Weight: 53.0 kg (116.85 lb)

• Dimensions (W × H × D): 284 × 880 × 365 mm

• Packaging: 992 × 400 × 598 mm (1 case)

• I/O: 2 analog in, 2 analog out, 6 digital in, 2 digital out

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 90 kW (ND), 75 kW (HD)

• Apparent Power Output: 117 kVA

• Power Consumption: 2042 W

• Standby Losses: 42 W

Applications

• Large-scale pumps, fans, and compressors

• Heavy-duty cranes, conveyors, and hoists

• Mixers, centrifuges, and test benches

• High-capacity extruders, winders, and process machinery

• Marine propulsion, mining, and industrial utilities

Why Choose the ABB ACS880-01-169A-3

• High-power 90 kW rating for demanding industrial processes

• R7 frame wall-mounted design ensures durability and compact installation

• Built-in choke for harmonic filtering and improved efficiency

• Wide fieldbus protocol support for seamless automation integration

• Backed by ABB’s proven industrial reliability and global service
