ABB ACS880-01-14A3-7

ABB ACS880-01-14A3-7 – 3AXD50000046386

Overview

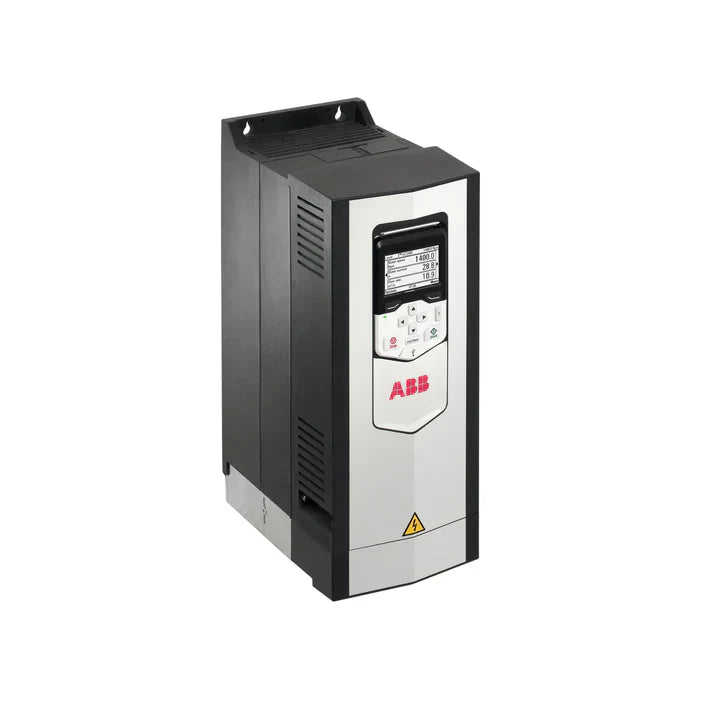

The ABB ACS880-01-14A3-7 is a versatile low-voltage AC industrial single drive engineered for higher input voltages. Rated at 11 kW (10 HP) and 14.3 A at 690 V, this R3 frame drive is ideal for precise motor control across industries such as mining, oil & gas, chemicals, cement, pulp & paper, water treatment, marine, and automotive.

With its compact wall-mount design and optional cabinet installation, the ACS880-01 offers simple commissioning and reliable performance. Standard features include a built-in choke for harmonic filtering, while options like a brake chopper, EMC filter, and I/O expansion modules provide customization flexibility.

Key Features

• Motor Power: 11 kW (10 HP)

• Rated Current: 14.3 A

• Input Voltage: 525–690 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R3

• Protection Class: IP21 (standard), IP55 optional

• Enclosure: NEMA Type 1

• Efficiency Level: IE2

• Built-in choke for harmonic filtering

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

• Options: brake chopper, EMC filter, functional safety, I/O extensions

Technical Specifications

• Global Commercial Alias: ACS880-01-14A3-7

• Product ID: 3AXD50000046386

• EAN: 6438177522706

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 11 kW

  • Heavy Duty: 7.5 kW

• Output Current:

  • Normal Duty: 14.3 A

  • Heavy Duty: 9.9 A

• Apparent Power Output: 17 kVA

• Power Consumption: 189 W

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 60 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 10.8 kg (23.8 lb)

• Height: 475 mm (18.7 in)

• Width: 173 mm (6.8 in)

• Depth: 261 mm (10.3 in)

Applications

• Pumps and fans

• Conveyors and mixers

• Compressors and test benches

• Light industrial machinery

• Water treatment, marine, and automotive industries

Why Choose the ABB ACS880-01-14A3-7

• Compact wall-mounted drive with higher voltage range

• Reliable performance for demanding applications

• Built-in harmonic filtering for improved efficiency

• Flexible customization with safety and EMC options

• Broad compatibility with fieldbus and communication protocols

Order Now

The ABB ACS880-01-14A3-7 is available and ships worldwide.
