ABB ACS880-01-087A-3

ABB ACS880-01-087A-3

Overview

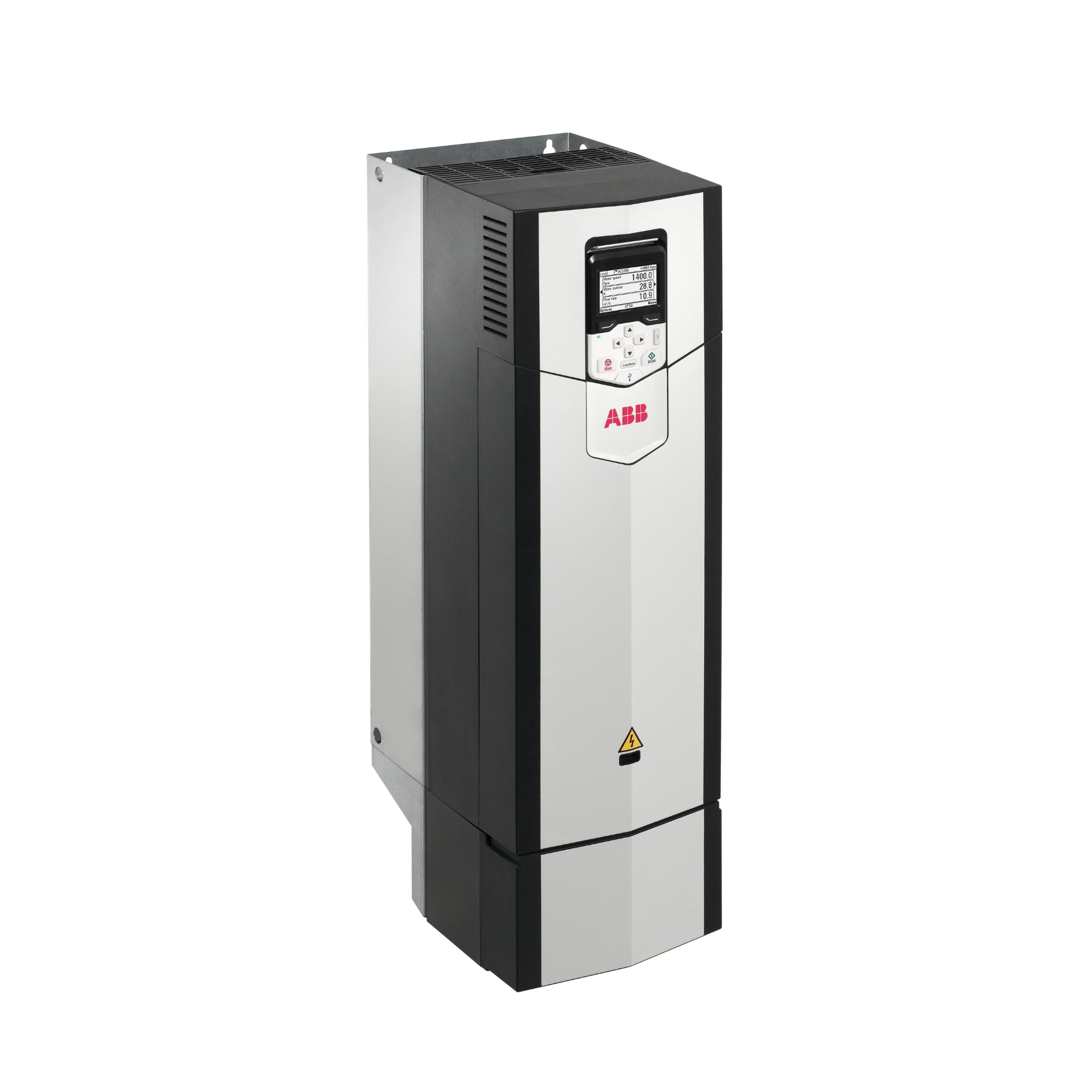

The ABB ACS880-01-087A-3 is a low-voltage wall-mounted industrial AC drive engineered for 380–415 V, 3-phase input, delivering a rated power of 45 kW with an output current of 87 A. Designed for heavy-duty and continuous industrial applications, it is widely used in oil and gas, mining, pulp and paper, water and wastewater, marine, food and beverage, cement, chemicals, and automotive sectors.

Built with a rugged R5 frame, IP21 / NEMA Type 1 protection, and harmonic filtering via its integrated choke, the ACS880-01-087A-3 ensures efficiency, durability, and flexible integration. Its multi-protocol communication support enables seamless connection to modern automation networks.

Key Features

• Power Rating: 45 kW (Normal Duty) / 37 kW (Heavy Duty)

• Output Current: 87 A (ND) / 83 A (Light OL) / 72 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Protection Class: IP21, NEMA Type 1

• Frame Size: R5

• Altitude Rating: Up to 4000 m

• Noise Level: 64 dB(A)

• Efficiency Class: IE2

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000108023

• Global Alias: ACS880-01-087A-3

• EAN: 6438177558392

• HS Code: 850440 (Static Converters)

• Weight: 22.8 kg (50.27 lb)

• Dimensions (W × H × D): 203 × 732 × 274 mm

• Packaging: 896 × 293 × 329 mm (1 carton)

• I/O: 2 analog in, 2 analog out, 6 digital in, 2 digital out

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 45 kW (ND), 37 kW (HD)

• Apparent Power Output: 60 kVA

• Power Consumption: 1129 W

• Standby Losses: 23 W

Applications

• Heavy-duty pumps, fans, and compressors

• Cranes, conveyors, hoists, and elevators

• Mixers, centrifuges, and test benches

• Extruders, winders, and industrial machinery

• Large-scale marine, mining, and processing equipment

Why Choose the ABB ACS880-01-087A-3

• High power density with 45 kW rating for demanding tasks

• Rugged wall-mounted R5 frame design for industrial durability

• Full fieldbus communication support for automation integration

• Harmonic reduction via built-in choke for efficiency

• Proven ABB reliability with global availability
