ABB ACS880-01-084A-7

ABB ACS880-01-084A-7 – 3AUA0000115105

Overview

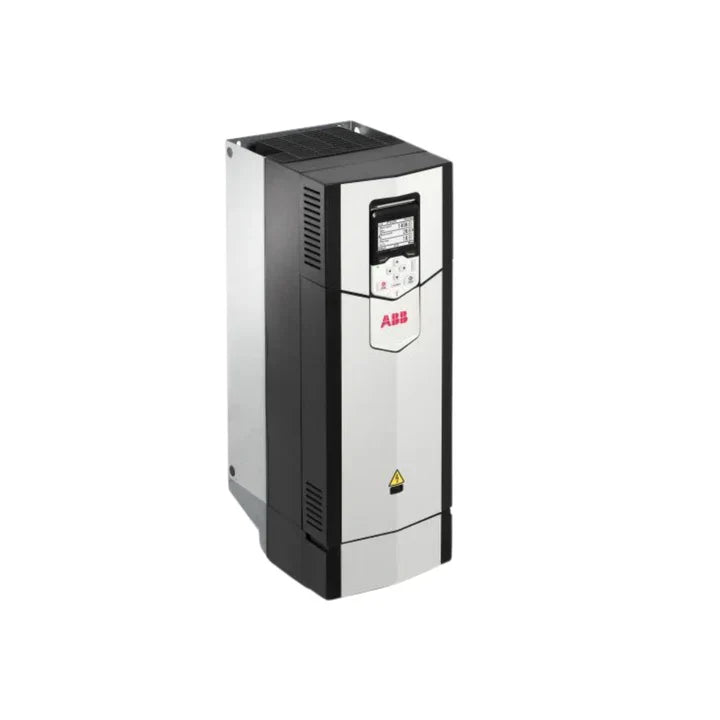

The ABB ACS880-01-084A-7 is a low-voltage AC industrial single drive designed for efficient motor control in high-voltage systems. Rated at 75 kW (75 HP) and 84 A at 690 V, this R6 frame unit delivers reliable performance for industries including mining, oil & gas, cement, pulp & paper, water treatment, marine, and automotive.

Optimized for wall-mounting with cabinet installation as an option, the ACS880-01 includes a built-in choke for harmonic filtering and supports expansion with brake chopper, EMC filter, functional safety, and I/O extension modules.

Key Features

• Motor Power: 75 kW (75 HP)

• Rated Current: 84 A

• Input Voltage: 525–690 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R6

• Protection Class: IP21 (standard), IP55 optional

• Enclosure: NEMA Type 1

• Efficiency Level: IE2

• Built-in choke for harmonic filtering

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

• Options: brake chopper, EMC filter, I/O extensions, functional safety

Technical Specifications

• Global Commercial Alias: ACS880-01-084A-7

• Product ID: 3AUA0000115105

• EAN: 6438177388609

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 75 kW

  • Heavy Duty: 55 kW

• Output Current:

  • Normal Duty: 84 A

  • Heavy Duty: 61 A

• Apparent Power Output: 100 kVA

• Power Consumption: 1303 W

• Standby Loss: 76 W

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 68 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 42.2 kg (93.0 lb)

• Height: 727 mm (28.6 in)

• Width: 252 mm (9.9 in)

• Depth: 357 mm (14.1 in)

Applications

• Pumps and fans

• Mixers and compressors

• Conveyors and material handling equipment

• Marine and water treatment systems

• General-purpose industrial automation

Why Choose the ABB ACS880-01-084A-7

• Compact wall-mounted R6 frame design

• Reliable harmonic filtering with built-in choke

• Expandable with EMC, I/O, and safety modules

• Broad compatibility with major industrial communication protocols

• Flexible installation with optional cabinet mounting

Order Now

The ABB ACS880-01-084A-7 is available and ships worldwide.
