ABB ACS880-01-06A6-2

ABB ACS880-01-06A6-2 – 3AUA0000123907

Overview

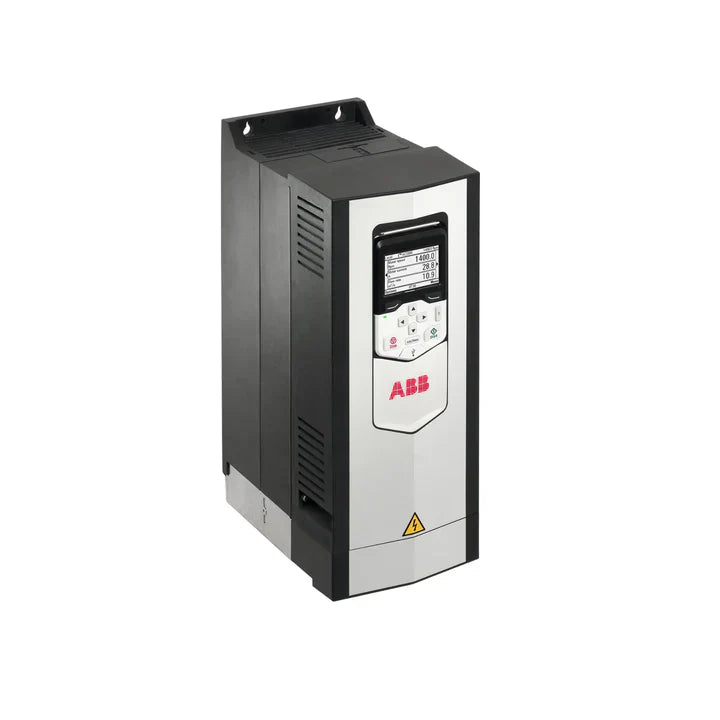

The ABB ACS880-01-06A6-2 is a compact low-voltage AC wall-mounted single drive designed for small-scale industrial and commercial applications. With a power rating of 1.1 kW (1.5 HP) and 6.6 A at 230 V, this R1 frame unit combines efficient performance, easy installation, and reliable motor control.

It comes standard with a built-in choke for harmonic filtering, while optional expansions include EMC filters, brake chopper, I/O extensions, and functional safety. The ACS880-01-06A6-2 is engineered to adapt to a wide range of light-duty automation needs.

Key Features

• Motor Power: 1.1 kW (1.5 HP)

• Rated Current: 6.6 A

• Input Voltage: 208–240 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R1

• Protection Class: IP21 (standard), IP55 optional

• Enclosure: NEMA Type 1

• Efficiency Level: IE2

• Low noise operation at 50 dB(A)

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

• Options: brake chopper, EMC filter, safety functions, I/O extension modules

Technical Specifications

• Global Commercial Alias: ACS880-01-06A6-2

• Product ID: 3AUA0000123907

• EAN: 6438177388074

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 1.1 kW

  • Heavy Duty: 0.75 kW

• Output Current:

  • Normal Duty: 6.6 A

  • Heavy Duty: 4.6 A

• Apparent Power Output: 2.6 kVA

• Power Consumption: 85 W

• Standby Loss: 22 W

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 50 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 7.0 kg (15.4 lb)

• Height: 409 mm (16.1 in)

• Width: 155 mm (6.1 in)

• Depth: 226 mm (8.9 in)

Applications

• Small pumps and fans

• Light conveyors and mixers

• HVAC and compact process equipment

• Laboratory and test systems

Why Choose the ABB ACS880-01-06A6-2

• Compact R1 frame for limited-space installations

• Flexible mounting: wall or cabinet option

• Built-in choke ensures harmonic filtering

• Expandable with EMC, I/O, and functional safety modules

• Broad communication protocol compatibility
