ABB ACS880-01-038A-3

ABB ACS880-01-038A-3

Overview

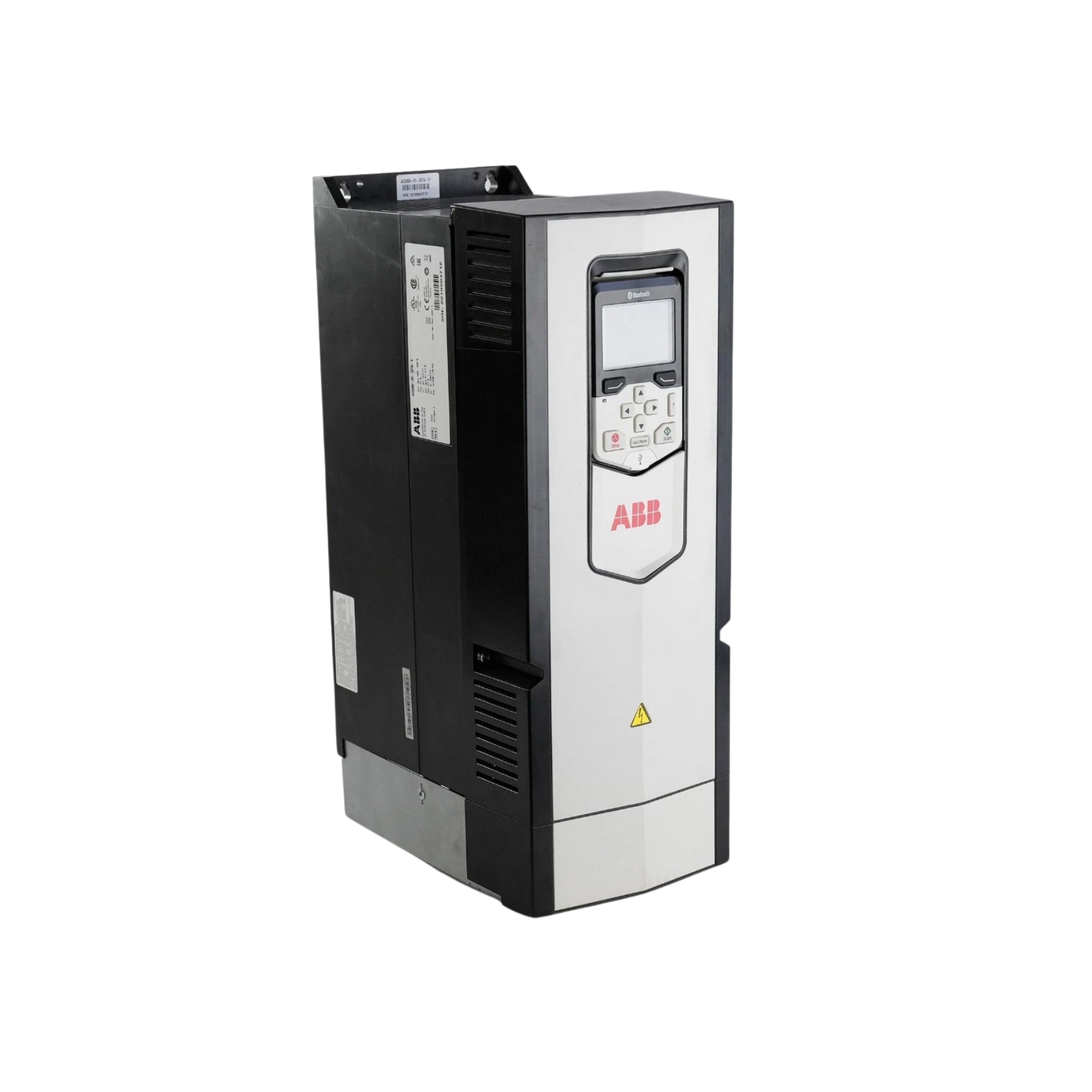

The ABB ACS880-01-038A-3 is a low-voltage, wall-mounted industrial AC drive designed for 380–415 V, 3-phase input, delivering a rated power of 18.5 kW and output current of 38 A. Built to serve industries such as oil and gas, mining, pulp and paper, marine, food and beverage, cement, chemicals, and automotive, it ensures robust performance, energy efficiency, and advanced motor control for a wide range of industrial applications.

With a compact R3 frame and IP21 / NEMA Type 1 enclosure, the ACS880-01-038A-3 is engineered for reliable wall-mounted installation. Its built-in choke reduces harmonics, and its compatibility with major industrial communication protocols allows seamless system integration.

Key Features

• Power Rating: 18.5 kW (Normal Duty) / 15 kW (Heavy Duty)

• Output Current: 38 A (ND) / 36 A (Light OL) / 32 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Protection Class: IP21, NEMA Type 1

• Frame Size: R3

• Altitude Rating: Up to 4000 m

• Noise Level: 60 dB(A)

• Efficiency Class: IE2

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000108019

• Global Alias: ACS880-01-038A-3

• EAN: 6438177557470

• HS Code: 850440 (Static Converters)

• Weight: 10.8 kg (23.81 lb)

• Dimensions (W × H × D): 173 × 475 × 261 mm

• Packaging: 624 × 256 × 316 mm (1 carton)

• I/O: 2 analog in, 2 analog out, 6 digital in, 2 digital out

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 18.5 kW (ND), 15 kW (HD)

• Apparent Power Output: 26 kVA

• Power Consumption: 515 W

• Standby Losses: 24 W

Applications

• Pumps and fans for HVAC and process control

• Cranes, conveyors, elevators, and hoists

• Compressors and centrifuges

• Winders, extruders, and mixers

• Heavy-duty industrial machinery

Why Choose the ABB ACS880-01-038A-3

• Reliable wall-mounted design with robust build quality

• Supports a wide range of fieldbus communication protocols

• Built-in choke for harmonic filtering and efficiency

• Proven ABB performance for demanding industrial environments

• Ships worldwide for global industrial applications
