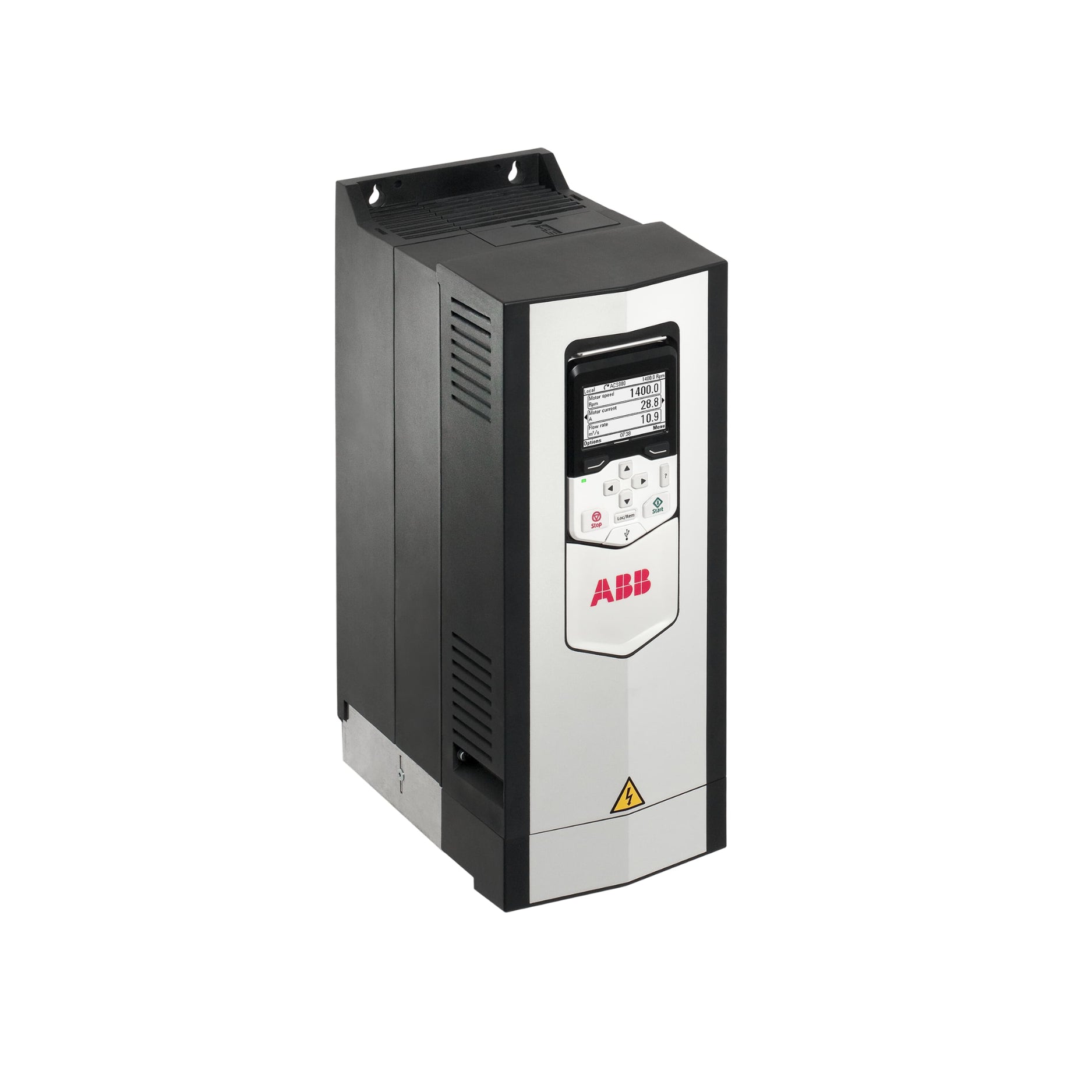

ABB ACS880-01-025A-3

ABB ACS880-01-025A-3

Overview

The ABB ACS880-01-025A-3 is a low-voltage wall-mounted industrial AC drive designed for 380–415 V, 3-phase input with a rated power of 11 kW and output current of 25 A. Built for demanding applications across industries such as mining, oil and gas, cement, pulp and paper, water and wastewater, marine, food and beverage, and automotive, this drive ensures maximum efficiency and flexible motor control.

Engineered for easy installation and commissioning, the ACS880-01 comes in a compact wall-mountable chassis with enclosure classes up to IP55. Its built-in choke for harmonic filtering, wide communication protocol support, and optional modules provide customizable performance and reliable operation in the harshest environments.

Key Features

• Power Rating: 11 kW (Normal Duty) / 7.5 kW (Heavy Duty)

• Output Current: 25 A (ND) / 24 A (Light OL) / 17 A (HD)

• Input Voltage: 380–415 V AC, 3-phase

• Frequency Range: 47.5–63 Hz

• Protection Class: IP21, NEMA Type 1

• Altitude Rating: Up to 4000 m

• Noise Level: 59 dB(A)

• Frame Size: R2

• Efficiency Class: IE2

• Includes: Control unit and PC connection

Technical Specifications

• Product ID: 3AUA0000107992

• Global Alias: ACS880-01-025A-3

• EAN: 6438177557197

• HS Code: 850440 (Static Converters)

• Weight: 8.4 kg (18.52 lb)

• Dimensions: 409 × 155 × 249 mm

• Packaging: 574 × 256 × 304 mm (1 carton)

• I/O: 2 analog in, 2 analog out, 6 digital in, 2 digital out

• Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe

• Output Power: 11 kW (ND), 7.5 kW (HD)

• Apparent Power Output: 17 kVA

• Power Consumption: 412 W

• Standby Losses: 23 W

Applications

• Pumps, fans, and compressors

• Cranes, conveyors, and elevators

• Mixers, centrifuges, and test benches

• Extruders, winders, and industrial machinery

• Marine, water, and wastewater systems

Why Choose the ABB ACS880-01-025A-3

• Robust wall-mounted design for flexible installation

• Built-in choke for harmonic reduction

• Compatible with multiple fieldbus communication protocols

• Reliable ABB performance with proven industrial durability

• Available for worldwide shipping

Return to the ABB ACS880 Industrial Drives collection.

Explore our ABB Industrial Drives main category.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
