ABB ACS880-01-023A-7

ABB ACS880-01-023A-7 – 3AXD50000046388

Overview

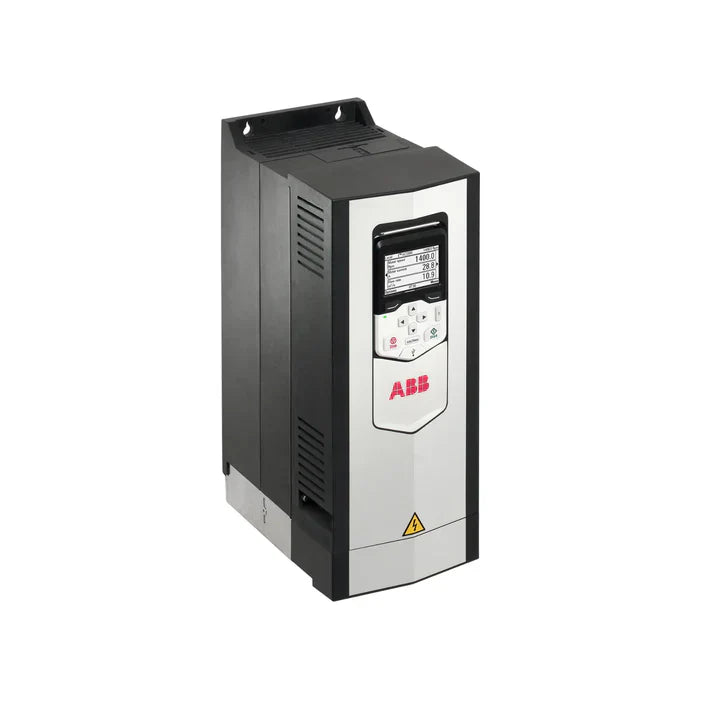

The ABB ACS880-01-023A-7 is a low-voltage AC industrial single drive designed for precision and reliability in high-voltage applications. Rated at 18.5 kW (20 HP) and 23 A at 690 V, this R3 frame drive delivers compact performance for industries such as oil & gas, mining, chemicals, cement, pulp & paper, water treatment, marine, and automotive.

The ACS880-01 is optimized for wall-mounting, with the option to install in a cabinet when required. It includes a built-in choke for harmonic filtering and supports extensions such as brake chopper, EMC filter, functional safety, and I/O expansion modules for enhanced flexibility.

Key Features

• Motor Power: 18.5 kW (20 HP)

• Rated Current: 23 A

• Input Voltage: 525–690 V, 3-phase

• Frequency Range: 47.5–63 Hz

• Frame Size: R3

• Protection Class: IP21 (standard), IP55 optional

• Enclosure: NEMA Type 1

• Efficiency Level: IE2

• Built-in choke for harmonic filtering

• Communication Protocols: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

• Options: brake chopper, EMC filter, I/O extension, safety functions

Technical Specifications

• Global Commercial Alias: ACS880-01-023A-7

• Product ID: 3AXD50000046388

• EAN: 6438177522720

• Catalog Description: LV AC industrial wall-mounted single drive

• HS Code: 850440 – Static converters

• Output Power:

  • Normal Duty: 18.5 kW

  • Heavy Duty: 15 kW

• Output Current:

  • Normal Duty: 23 A

  • Heavy Duty: 19 A

• Apparent Power Output: 27 kVA

• Power Consumption: 338 W

• Analog Inputs: 2

• Analog Outputs: 2

• Digital I/O: 6 / 2

• RS-485 Communication: Yes

• USB Interface: Yes

• Altitude: Up to 4000 m

• Operating Humidity: 5–95%

• Sound Level: 60 dB(A)

• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 10.8 kg (23.8 lb)

• Height: 475 mm (18.7 in)

• Width: 173 mm (6.8 in)

• Depth: 261 mm (10.3 in)

Applications

• Pumps and fans

• Conveyors and mixers

• Compressors and test benches

• General-purpose industrial machinery

• Water treatment and marine environments

Why Choose the ABB ACS880-01-023A-7

• Reliable performance for higher-voltage systems

• Compact wall-mounted design for space efficiency

• Harmonic filtering included as standard

• Flexible with safety, EMC, and I/O options

• Broad compatibility with fieldbus and communication protocols

Order Now

The ABB ACS880-01-023A-7 is available and ships worldwide.
