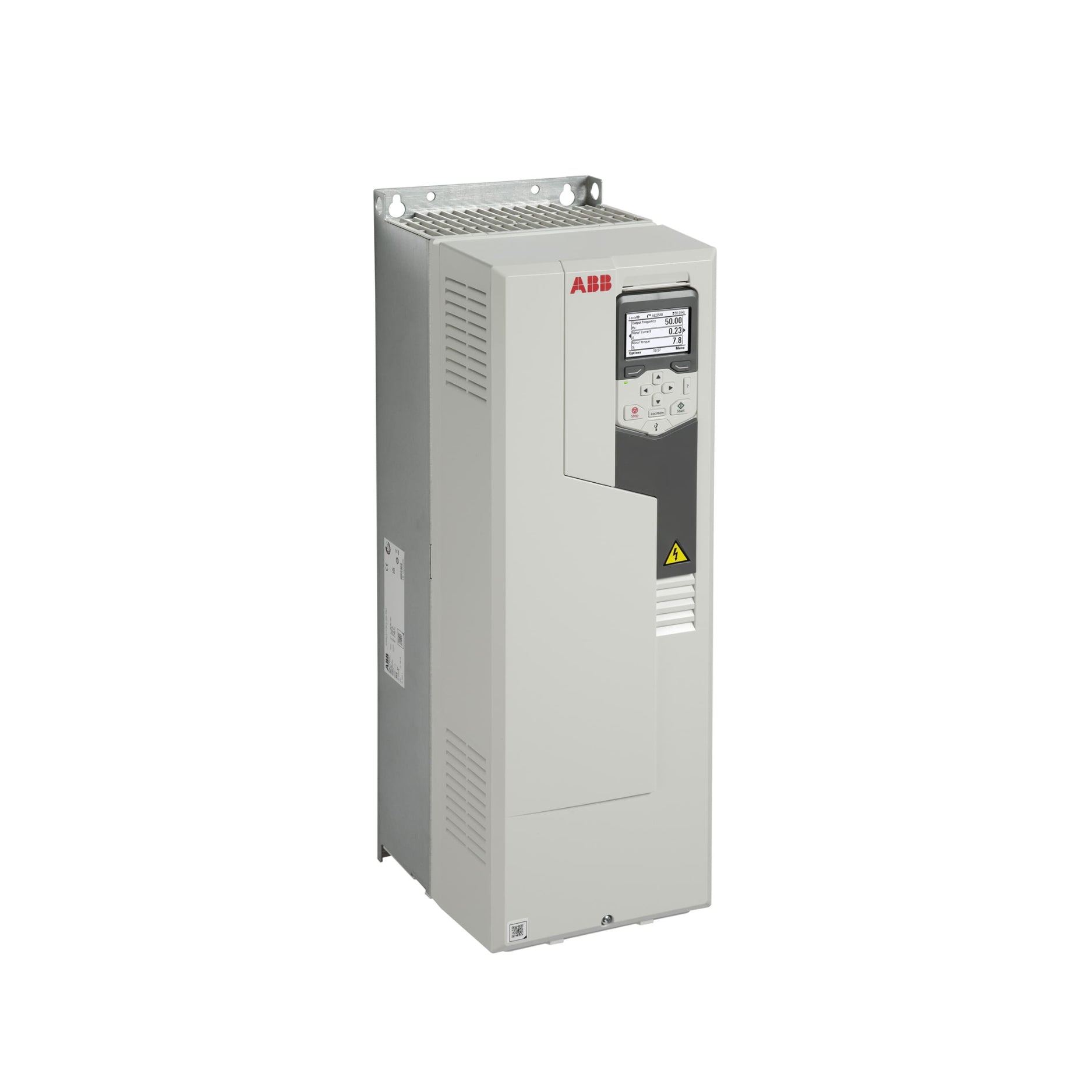

ABB ACS580-01-062A-4 | 3AUA0000080498

ABB ACS580-01-062A-4 | 30 kW VFD, 380–480 V, Wall-Mounted, IP21

Global Commercial Alias: ACS580-01-062A-4
Product ID: 3AUA0000080498
ABB Type Designation: ACS580-01-062A-4
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 30 kW, 62 A (ACS580-01-062A-4)

Overview

The ABB ACS580-01-062A-4 is a 30 kW (40 HP) variable frequency drive from the ACS580 series, built for reliable and efficient motor control in both constant and variable torque applications. It operates on a 3-phase 380–480 V input and is housed in a compact IP21 enclosure, ideal for wall-mounting.

Key Features

• Motor Power: 30 kW (40 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 62 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Removable keypad with USB PC connection

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS580-01-062A-4

• Output Current: 62 A (ND) / 48 A (HD)

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -15°C to +50°C

• Dimensions (H x W x D): 540 mm x 203 mm x 229 mm

• Weight: Approx. 13.5 kg

• Certifications: CE, UL, cUL

Applications

• Pumps

• Fans

• Compressors

• Conveyors

• Mixers

• HVAC systems

• Material handling

Product Description

The ABB ACS580-01-062A-4 provides plug-and-play functionality with a comprehensive set of standard features. It simplifies integration and commissioning in diverse industrial setups. Designed for energy-efficient performance and ease of use, it is ideal for both OEMs and end users seeking dependable motor control.

Why Choose ABB ACS580-01-062A-4?

• Built-in safety and EMC features

• Intuitive user interface for easy setup

• Reliable and energy-saving performance

• Suitable for a wide range of industrial needs
